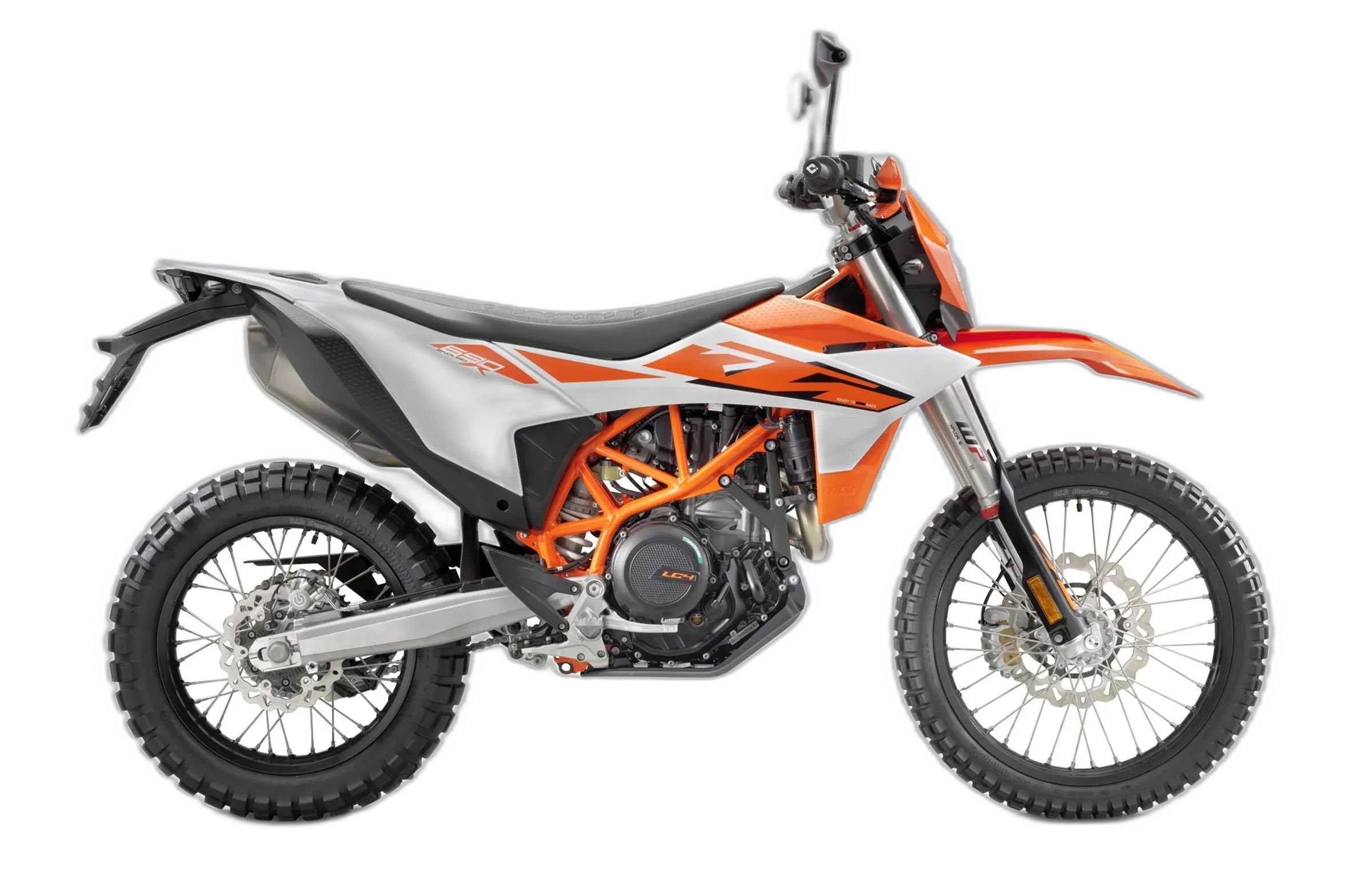

KTM 690 Enduro R 2019–2025: Specs, Facts & Known Issues

The Machine's Character

The 690 Enduro R is what you get when KTM takes a big single seriously. The 693 cc LC4 makes 75 hp and 54 lb-ft and runs through KTM Ride-by-Wire with selectable engine maps, a slipper clutch and a quickshifter that works both up and down. Add cornering ABS and traction control and you've got a rider-aid package most singles never come close to. The chassis is pure enduro: a steel trellis frame, a WP XPLOR Split-Cartridge Fork and a WP XPLOR shock, with 9.8 in (250 mm) of travel at each end, all of it adjustable. It sits right on the seam between hard enduro and light adventure bike. That's its whole point.

This is a tool, not a sofa. It wants an experienced rider who knows what to do with 10.4 in (265 mm) of ground clearance and a 21-inch front wheel, and who doesn't mind a 36.8 in (935 mm) seat. Ride it that way and it goes deep into technical terrain, then still gets you home on pavement. The honest caveat is the electrics. The in-tank fuel pump is a known weak spot, stators and wiring looms can play up, and LC4 bikes built from 2018 to 2020 are covered by a recall for an electrical/fuel system fault. Check that paperwork before you buy. Then pack a spare pump.

Hard Numbers

Spec sheets don't ride bikes, but they set the baseline.

Show full specs & equipment Hide specs & equipment

Key specifications
Power	75 hp (55 kW) @ 8,000 rpm
Torque	54 lb-ft (74 Nm) @ 6,500 rpm
Displacement	693 cc
Engine	Single-cylinder
Cooling	Liquid-cooled
Gearbox	6-speed
Final drive	Chain
Fork	Upside-down (USD)
Front tire	90/90-21
Rear tire	140/80-18
Wheelbase	59.3 in (1506 mm)
Ground clearance	10.4 in (265 mm)
Front travel	9.8 in (250 mm)
Rear travel	9.8 in (250 mm)
Seat height	36.8 in (935 mm)
Fuel capacity	3.5 gal (13.3 L)

Equipment check

Chassis

Front Suspension Adjustable WP XPLOR Split-Cartridge Fork Tool free setupDamping tuning to style Standard
Rear Suspension Adjustable Standard

Safety

Ride Modes KTM Ride-by-Wire (engine maps) Selectable ride modesRefined throttle response Standard

Known issues

LC4 recall (MY 2018-2020) – electrical/fuel system

drivetrain rare Recall

KTM issued a recall for LC4 models built between 2018 and 2020 due to a potential fault in the electrical/fuel system that could cause engine stalling or loss of power.
Fuel pump prone to failure

fuel system common

The in-tank fuel pump is a common failure point, often triggered by contaminated fuel or heat, causing the bike to stall or not start. Many owners carry a spare or replace with an aftermarket unit.
Electrical gremlins (stator, wiring loom)

electrics occasional

Corroded connectors, failing stators, and chafed wiring looms have been reported, causing intermittent electrical cutouts and charging system failures.

The Expert Benchmark

Where this KTM 690 Enduro R pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.

What kind of bike this is — character vs. the class

Technical Terrain Survival

Low-End Tractability

Clutch-and-Throttle Modulation

Robust Crash Tolerance

Fatigue Resistance Over Hours

Standing-Rider Balance

Grip Before Horsepower

This bike Class average

Head-to-head: KTM 690 Enduro R vs. its rivals

Power

75 hp This bike 44 hp Suzuki DR650SE 61 hp Aprilia RXV 450 58 hp Triumph TF 450-E 56 hp Kawasaki KLX 450 R

Torque

54 lb-ft This bike 40 lb-ft Suzuki DR650SE 40 lb-ft Aprilia RXV 450 36 lb-ft Triumph TF 450-E 35 lb-ft Kawasaki KLX 450 R

Displacement

693 cc This bike 644 cc Suzuki DR650SE 450 cc Aprilia RXV 450 450 cc Triumph TF 450-E 449 cc Kawasaki KLX 450 R

Seat height

36.8 in This bike 34.8 in Suzuki DR650SE 38.2 in Aprilia RXV 450 37.6 in Triumph TF 450-E 36.8 in Kawasaki KLX 450 R

The 'Should I Buy It?' Score

Forget spec-sheet bragging. Here's who the 690 Enduro R is actually built for.

Factory Butte in Utah's high desert badlands, captured in daylight under clear blue sky. The formation's distinctive multi-colored strata and steep erosional gullies dominate the frame. Arid terrain with minimal vegetation stretches across the foreground and background. Typical American Southwest landscape. — NastyNils / Nastynils.com

Best motorcycle for Moab?

This is your bike. The long-travel adjustable WP suspension and 10.4 in of clearance make it right at home on slickrock and sand, and you ride to the trailhead. Keep a spare fuel pump in the pack.

Made for Moab · Bar M / Kane Creek · Imperial Sand Dunes

Best motocross bike for Loretta Lynns?

Straight talk: it's a street-legal enduro with lights, ABS and a tank for distance, not a 450F. It'll be a blast on a practice day, but your race bike stays in the van on race day.

Made for Loretta Lynn's Ranch · Carnegie State Vehicular Recreation Area · Fox Raceway at Pala

Best motorcycle for BDR routes?

If the dirt matters more to you than luggage, it's a sharp BDR tool. Just plan your fuel stops around the 3.5 gal (13.3 L) tank, and know that you give up comfort and cargo space for that trail bite.

Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route

What's new versus the previous generation

If you're cross-shopping the older generation, here's what changed.

Previous generation · 2014–2018

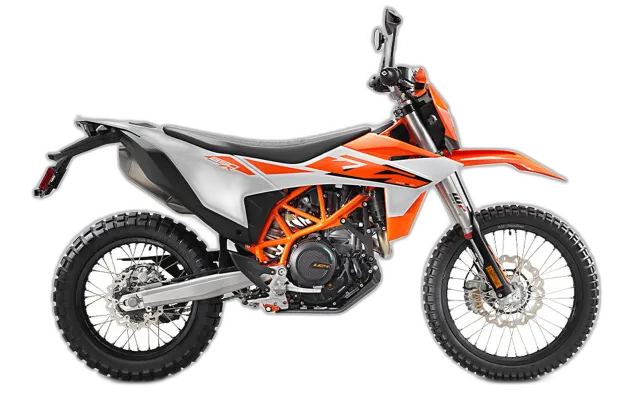

KTM 690 Enduro R (MY2014)

One Cylinder, Pure Dirt

Compare to the previous model →

Alternatives to the KTM 690 Enduro R

If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.

Any price note compares both bikes at the same age — the youngest age both have on the used market — against this KTM 690 Enduro R. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
