2017–2019 · Enduro · Buyer's Guide
Pure Trail Tool, Zero Compromise

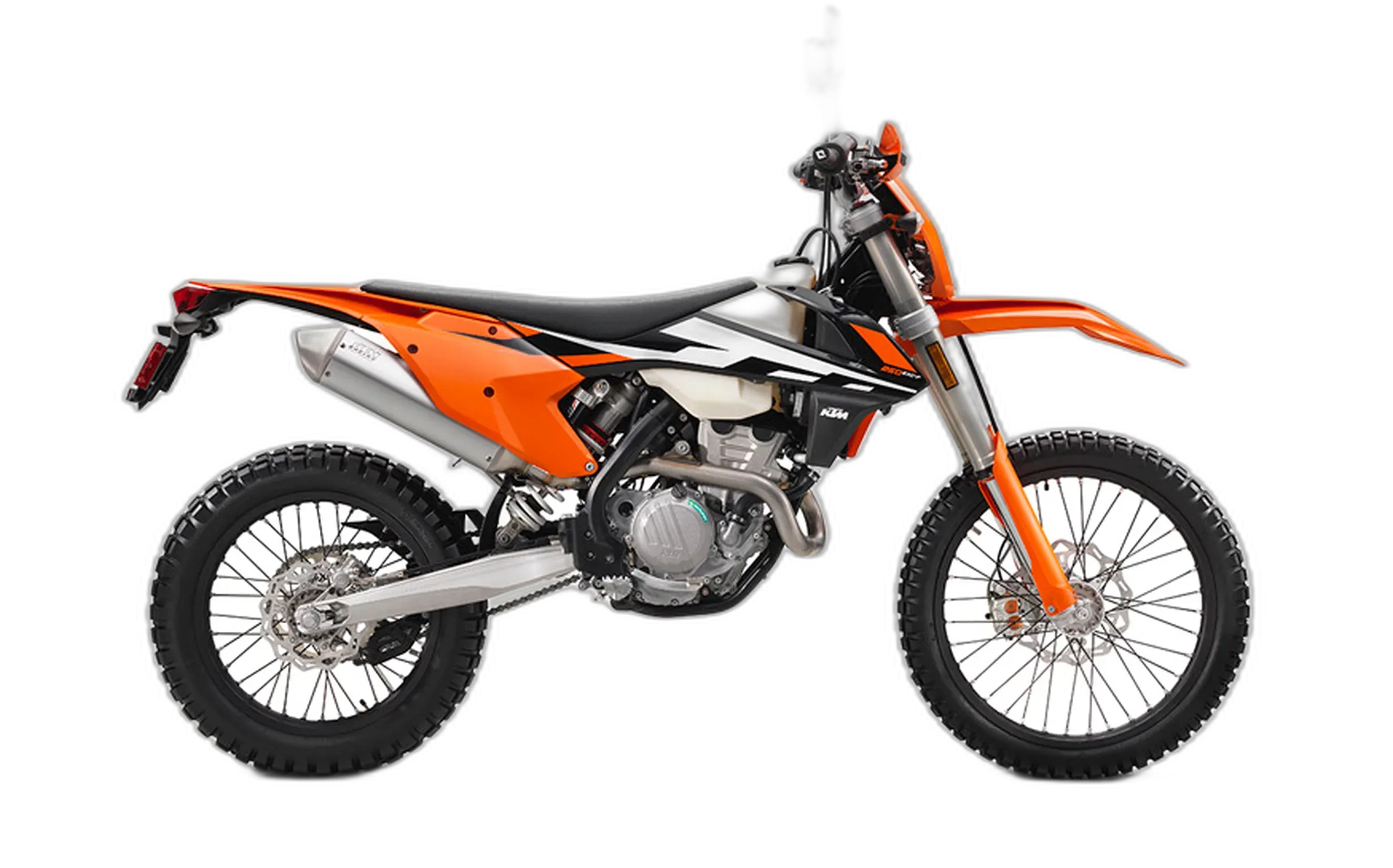

The 250 EXC-F is a competition enduro bike that happens to wear a license plate. The chromoly frame and DOHC single share their architecture with the 350 EXC-F, and the 250 cc liquid-cooled four-stroke makes 29 hp and 18 lb-ft, numbers that mean nothing until you see how they're delivered. This is a linear, tractable powerband rather than a hit, tuned for finding grip in singletrack instead of winning a drag race up a fire road. Fully adjustable WP suspension front and rear, Brembo brakes, 6-speed gearbox, and a chassis pulled straight off KTM's race enduro platform. Lighting and a minimal dash are the only concessions to the road.
In tight, technical terrain this bike flatters you. The power arrives predictably enough that a mid-level rider can ride above their pay grade, while a fast rider can lean on the chassis hard and find nothing lacking. It ages the way race hardware ages: rugged where it counts, but it wants real maintenance intervals, not oil changes when you remember. The honest caveat is low-end. There isn't much torque down low for long, steep hill climbs, and the engine will flame out and stall if you lug it in slow technical sections. You learn to keep a finger on the clutch. Early 2017 bikes also had a plastic oil pump gear that could fail and starve the engine of oil.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 29 hp (21 kW) |
|---|---|
| Torque | 18 lb-ft (24 Nm) |
| Displacement | 250 cc |
| Engine | Single-cylinder |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front brake | 260 mm |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Wheelbase | 58.3 in (1482 mm) |
| Ground clearance | 14.0 in (355 mm) |
| Front travel | 11.8 in (300 mm) |
| Rear travel | 12.2 in (310 mm) |
| Seat height | 37.8 in (960 mm) |
| Fuel capacity | 2.2 gal (8.5 L) |
Equipment check
Chassis
Nils doesn't build this part from a test schedule. It comes from years of standing around at trail parking lots, listening to what comes up when owners start talking bikes, and reading the notes riders send him after a full season on one. On the 250 EXC-F the chatter lands in a consistent place. Riders describe a machine that rewards a light touch and technical terrain, and they are equally clear about the conditions where they have to work around it.
The chassis dominates the praise. Riders talk about a bike that stays nimble in tight going and takes very little effort to place, and they credit that as the reason technical sections feel less like a fight. The WP Xplor units come up almost as often. Owners describe plush, compliant action over rocks and roots and say the full adjustability at both ends lets them settle on something they trust. A large group also reports the engine holding up over long hours provided the basics get done, with valve checks and oil changes described as simple work. The power delivery draws the same tone of goodwill: linear, gentle, forgiving in slow terrain rather than intimidating. Brembo brakes round it out, with owners calling out strong, predictable stopping and good feel on dirt and pavement alike.
The loudest recurring gripe is low-end torque. Riders say the engine wants revs and that long sandy or rocky climbs need a run-up to clear. Close behind sits the stock gearing. Owners call the final drive too tall for tight singletrack, which turns into constant clutch work, and the flame-outs many describe when lugging in slow sections come from the same territory. The stock tires get regular criticism for poor grip in loose dirt, and most owners report swapping to knobbies. Riders who carry speed add one more: the plush setup turns soft and twitchy through deep whoops.
Plastic oil pump gear failure
The plastic oil pump gear can fail prematurely (often under 30 hours), leading to oil starvation and potential engine seizure. The issue appears isolated to early production 2017 models and is not widespread.
Engine flame-out and stalling at low RPM
The engine can flame out and stall without warning when it is lugged at very low revs in slow, technical terrain. The small-displacement four-stroke single has little flywheel inertia and lean low-speed fueling, so the rider has to slip the clutch constantly to keep it running on tight climbs and in rocky sections.
Where this KTM 250 EXC-F pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Seat height
Forget spec-sheet bragging. Here's who the 250 EXC-F is actually built for.
This is your bike. Light, adjustable at both ends, and happy on the kind of technical rock and sand where skill matters more than power. Just budget for fuel stops on longer days.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
Wrong tool for multi-day route work. It'll outclimb anything on the hard sections, but 2.2 gal, a plank seat, and buzzy highway manners make the transit miles punishing.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
If you're cross-shopping the older generation, here's what changed.

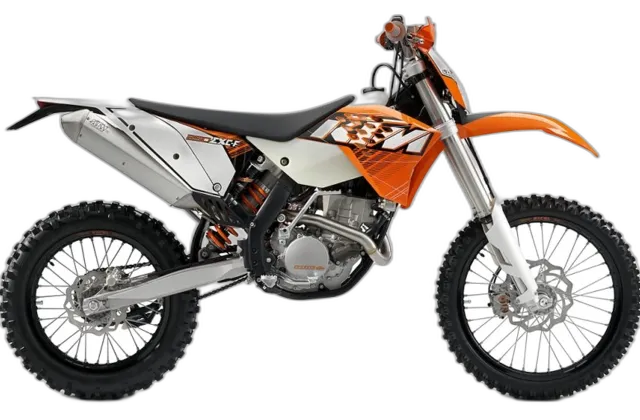

Previous generation · 2011–2016
Lightweight Artillery for Technical Terrain
Compare to the previous model →If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this KTM 250 EXC-F. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.

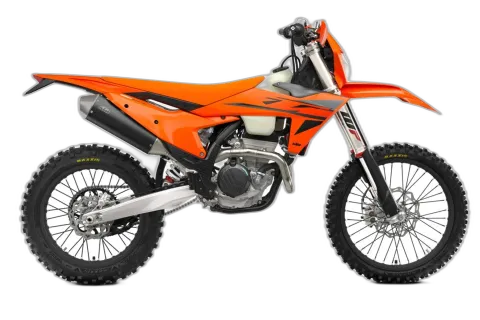

Successor · 2020
Flickable Four-Stroke Race Tool

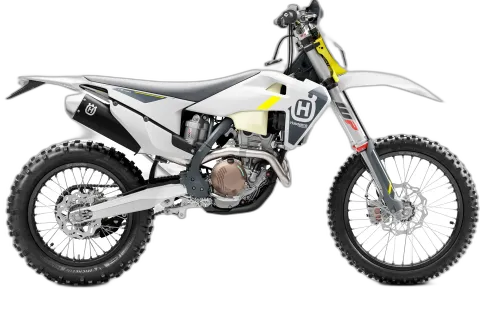

Competitor · 2017–2022
