2010 · Enduro · Buyer's Guide
Raw Enduro Muscle, Distilled

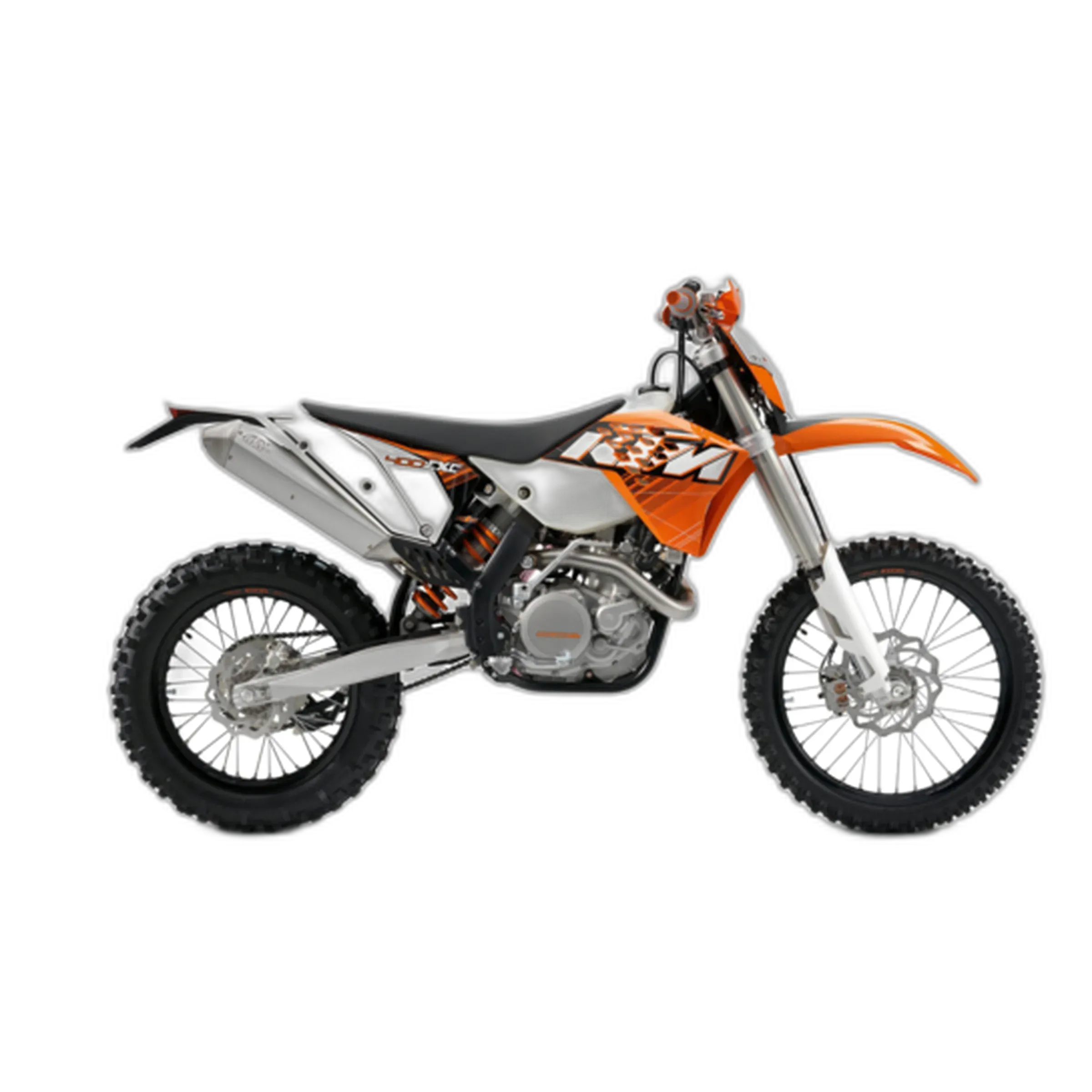

The 2010 KTM 400 EXC is built around the compact XC4 393cc single, a liquid-cooled unit that makes 45 hp and 29 lb-ft and delivers it in a linear, usable way rather than a violent hit. That is the whole point of this bike. It rides on a chromoly chassis with premium WP suspension and a 6-speed box, kept honest by carbureted fueling and both kick and electric start. Nothing here is smoothed over for showroom appeal. It is a race-bred enduro tool that puts traction and rider control ahead of headline numbers, exactly where this class should land.
This one shines when the terrain gets nasty. At 273 lb wet with 15.0 in of ground clearance and long-travel WP legs, it stays composed in the technical stuff and rewards a rider who reads the ground. It fits someone who wants mechanical simplicity, real tunability, and a chassis that improves as you push it. The honest caveats: the 38.8 in seat height locks out shorter riders, the 2.5 gal tank keeps range short, and the carb wants regular attention. Buy it for what it does in the dirt, not for touring comfort.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 45 hp (33 kW) |
|---|---|
| Torque | 29 lb-ft (39 Nm) |
| Displacement | 393 cc |
| Engine | Single-cylinder |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Ground clearance | 15.0 in (380 mm) |
| Front travel | 11.8 in (300 mm) |
| Rear travel | 13.2 in (335 mm) |
| Seat height | 38.8 in (985 mm) |
| Wet weight | 273 lb (124 kg) |
| Fuel capacity | 2.5 gal (9.5 L) |
Equipment check
Chassis
Swing a leg over and the height registers first. At 38.8 in the seat sits you well above the trail, and the bike is narrow and tall through the middle, so tiptoe stops are part of the deal. Once you are rolling that tallness turns into leverage. The single thumps out a steady, mechanical beat you feel through the pegs more than the bars, never harsh, just present enough to remind you what is under you. The WP legs soak up square edges and rock gardens without kicking back at your hands, and the light weight means you steer as much with your feet and knees as your grip. It feels raw and honest, the kind of bike that asks you to stand up, commit, and work with it rather than sit back and let it carry you.
Cam chain tensioner failure (early models)
The OEM hydraulic cam chain tensioner can fail prematurely, causing rattling and potential engine damage. An aftermarket ratcheting tensioner is a common fix.
Overheating in slow conditions
In tight, low-speed riding without adequate airflow, the engine can overheat. Installing a radiator fan or ensuring proper coolant level mitigates the risk.
Carburetor bogging/stalling
Dirt or stale fuel can clog the pilot jet, leading to off-idle hesitation, stalling, and poor throttle response. Regular cleaning and an O-ring mod on the accelerator pump help resolve this.
CDI unit plug damage from cable tension
The CDI unit's electrical plug can be damaged when the handlebars are turned to full lock, as the wiring cable pulls too tight and tugs the connector out, leading to intermittent or no spark. This can cause starting problems or engine cut-outs.
Where this KTM 400 EXC pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Seat height
Forget spec-sheet bragging. Here's who the 400 EXC is actually built for.
If Moab, Johnson Valley, and Ocotillo are your ground, this is your bike. The light weight, tall clearance, and tunable WP setup let you attack technical lines and slickrock all day. Just plan fuel stops around that small tank.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
It carries real track capability and a chassis that holds up under race pace. Understand the tradeoff: this is an enduro tuned for traction and control, not an explosive closed-course weapon, so it rewards riders who value rideable drive over raw MX aggression.
Made for Carnegie State Vehicular Recreation Area · Fox Raceway at Pala · Glen Helen Raceway
For the rough, technical stretches of a BDR it is a joy, light and sure-footed where bigger bikes struggle. But the 2.5 gal tank and 38.8 in seat make it a hard sell for long logistics-heavy days in the saddle.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this KTM 400 EXC. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
