2010 · Enduro · Buyer's Guide
Clean-Sheet Single, Built to Corner

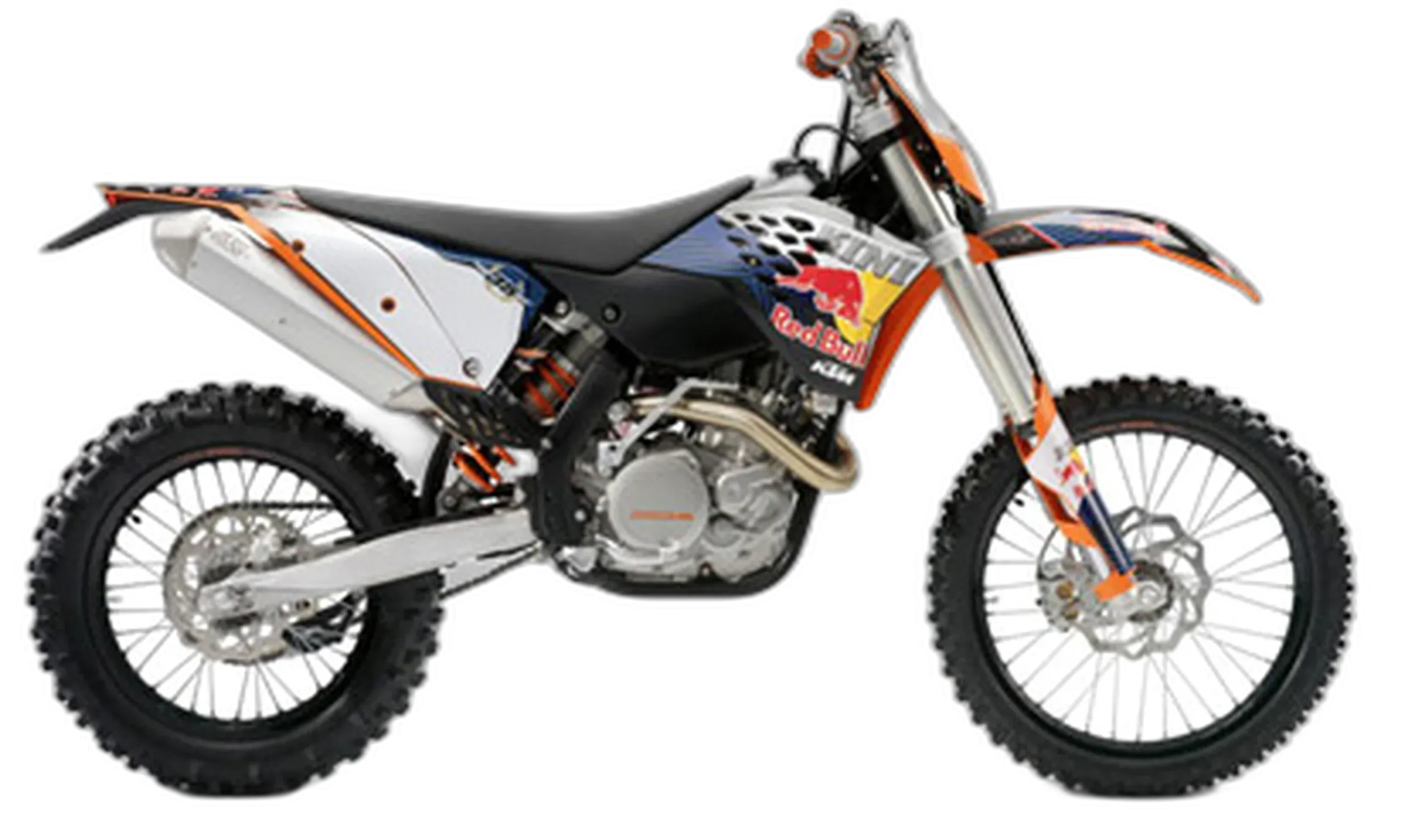

KTM built this 510cc single as a clean-sheet enduro motor, not a motocross engine wearing enduro plates. Peak power lands at 57 hp, but that number was almost an afterthought in the design brief. What the engineers chased instead was usable low-end drive, the trait that actually decides how a bike works in the dirt. The chassis is the other headline. Corner speed is where this EXC pulls away from its class, rotating on one input and holding a clean line through berms and banked turns. On paper it reads as a lot of motor. On the ground it reads as drive you can meter.
On the trail the 530's fearsome reputation doesn't hold up. Ride it back to back with the 450 through the same technical sections and it asks no more concentration or muscle; you just find yourself a gear taller in the same spots, arriving fresher. That makes it the honest pick for multi-day rides over real ground. The caveat is race pace. Chase fast company and the revs climb into a range that wears your arms out before the chassis quits, and ruts or deep loose soil will find the limits of that sharp front end. As it ages, keep an eye on the oil, because this engine is known to drink it.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 57 hp (42 kW) |
|---|---|
| Torque | 36 lb-ft (49 Nm) |
| Displacement | 510 cc500cc Motorcycles → |
| Engine | Single-cylinderMotorcycles With Single-Cylinder Engines → |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front brake | 260 mm |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Wheelbase | 58.1 in (1475 mm) |
| Ground clearance | 15.0 in (380 mm) |
| Front travel | 11.8 in (300 mm) |
| Rear travel | 13.2 in (335 mm) |
| Seat height | 38.8 in (985 mm) |
| Dry weight | 251 lb (114 kg) |
| Fuel capacity | 2.5 gal (9.5 L) |
Swing a leg over and the first thing you register is height. The seat sits at 38.8 in, so this is a tiptoe bike at a stop and you plan your footing before you plant. Thumb the starter and the single barks hard and purposeful, yet the vibration you brace for never really shows up. The counter-balancer keeps a big thumper genuinely civil at road speed, not just civil for its size. Your left hand tells the best story: the clutch pull is butter-light and lets you meter grip with real precision at the edge of traction on a greasy climb. Run your fingers down the fork before you ride and you can feel how little stiction is left in it. On the light machined-hub wheels it flicks from side to side with almost no effort from your body.
My own 0–100 score for this bike against the class, area by area — the marker on each bar is the class average.
For riders mapping out days instead of laps, this is the one I'd reach for. Its whole character only clicks over distance, when the ground stays technical for hours and you want a motor that isn't demanding everything of you just to keep rolling. The smaller bike has its case for shorter, sharper efforts. Stretch the ride out across open, remote country, and the 530 is the one that still has something left at the far end of a long day.
What changed most this generation isn't obvious until you put the bike on a scale. KTM stripped real mass out of the entire enduro range, and the place that matters most is the wheels. The machined-hub rims take weight off exactly where it does the most good, because trimming it at the rim does more for how a bike reads rough ground than the same grams anywhere else. On the trail that shows up as composure: the surface keeps shifting under you and the chassis stays sorted instead of getting knocked around. There's a real ceiling, and it's fair to know it going in. Where the floor drops into ruts or opens into deep, soft going, the sharpness that makes this thing so willing everywhere else quits helping and starts arguing with you. Through the tight, banked stuff it's the sharpest tool in the class. Let the ground turn loose and deep and it gives a little of that back.
The detail that reassures me most doesn't get much airtime: the clutch runs its own lubrication circuit, so the debris it sheds under hard, repeated slipping never gets pumped through the engine's internals. On a bike where you're working that lever for hours through technical ground, walling wear products off from the rest of the motor is exactly the engineering that decides whether a hard-used single stays healthy. And the nine-plate pack is built to take that punishment in the first place.
The story of this motor is a decision, and I got to hear it made out loud. When KTM walked us through the spec at the launch, they named the power figure once, almost as an aside, then spent the rest of the session on the things that actually decide an enduro loop. This is the first of their four-strokes drawn for enduro alone, with no architecture carried over from the motocross bike, and that intent lives in how the thing behaves under your wrist. The big single never looms over you or dares you into a mistake. Where I expected to be managing a large motor, I was just using one, leaning on the drive instead of bracing against it. That priority is the whole reason to design an engine from scratch rather than soften a race unit, and it's what I felt every time the trail turned technical.
What I want to flag here is that the smoothness isn't graded on a curve. A big single normally earns a pass on vibration, and I kept waiting for the hammering that would cash in that pass. It never really showed. The balance shaft does honest work, so the level you actually live with is low by any yardstick, not merely low for a thumper of this size. That's what keeps the miles from wearing on you.
For years I've gathered what riders tell me about the 530 EXC: forum threads, paddock talk, conversations with owners, and the notes people send me directly. Pull it all together and the sentiment runs one way on the riding and another on the upkeep.
The motor collects the most agreement. Riders talk about power that comes on smoothly down low and turns muscular through the middle, with a carburetor that answers the throttle instantly and hands back plenty of feel. The chassis earns nearly as much, described as sharp and planted yet quick to change direction, equally at home in tight singletrack and on faster fire road. Its light weight comes up again and again at 251 lb (113.9 kg) dry, and the Brembo brakes get singled out for firm, progressive stopping, front and rear.
The steady concern is oil. Owners consistently report the engine using it at roughly 1cc per mile, enough that they keep topping it up between changes. A good number also mention oil migrating from the engine side into the transmission, most often on the earlier motors, and they watch it closely to head off any damage.
Oil migration between engine and transmission
The seal between the separate engine and transmission oil chambers can wear or fail, allowing oil to migrate from the engine side into the transmission. The engine oil level drops while the transmission level rises, which can starve the engine of lubrication and risks serious engine damage if the levels are not checked often.
Premature piston ring wear
The stock piston rings, particularly on earlier XC4 engines, wear out faster than expected, leading to oil burning, smoking, and compression loss. Upgraded piston kits (like CP or Vertex) are a common fix.
Excessive oil consumption
Owners report that the engine can consume a significant amount of oil per mile, requiring constant monitoring and top-ups. This is often exacerbated by worn piston rings and is considered typical for high-performance XC4 engines.
Where this KTM 530 EXC pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Seat height
Forget spec-sheet bragging. Here's who the 530 EXC is actually built for.
For slickrock, sand, and long technical days, this is your bike. The usable low-end drive and class-leading corner speed reward skill, and the extra displacement keeps you fresh over multi-day routes instead of grinding you down.
Made for Kane Creek Recreation Area · Moab · Imperial Sand Dunes Recreation Area
Straight talk: this is an enduro motor, not a motocrosser. It out-corners plenty on a track, but chase a moto flat-out and the top-end runs past your arms before the bike does. It isn't your gate-drop weapon.
Made for Loretta Lynn's Ranch · Carnegie State Vehicular Recreation Area · Pala Raceway
Know what you're signing up for: this is a stripped enduro, not a middleweight adventure rig. It'll shred the technical BDR sections, but the 2.5 gal tank and 38.8 in seat mean short legs between fuel and no touring comfort.
Made for Arizona Backcountry Discovery Route · Southern California Backcountry Discovery Route · Colorado Backcountry Discovery Route
If you're cross-shopping the older generation, here's what changed.
Previous generation · 2005–2007
The RFS That Means Business
