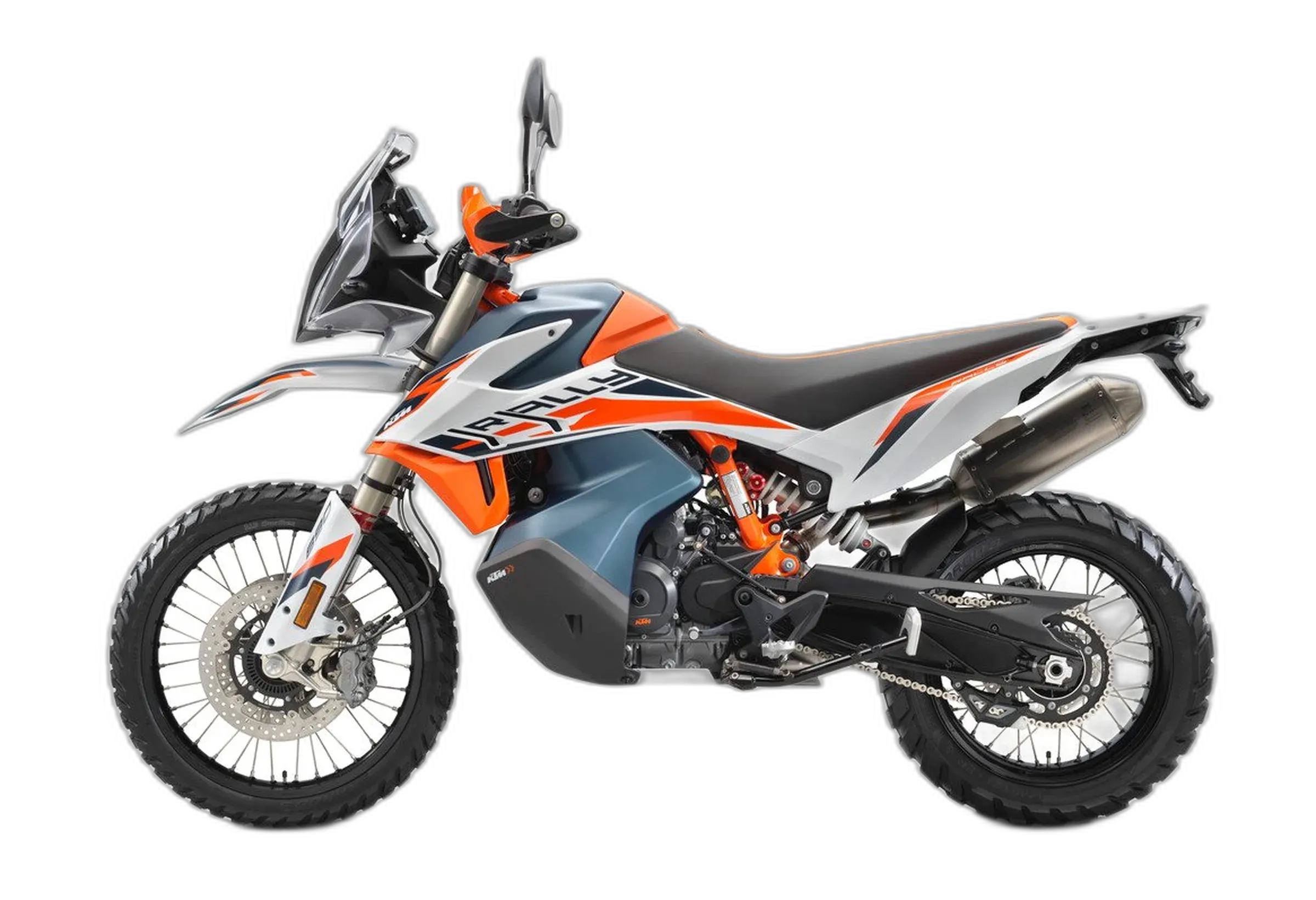

2021–2024 · Adventure · Buyer's Guide
Top-Shelf Tech, Proven Dirt Bite
The middleweight orange platform runs an 889 cc parallel twin making 105 hp and 74 lb-ft, but the tank is what defines it. It sits low and wide down by your shins, which puts the mass where you want it the moment the pavement ends. A 21-inch front, an 18-inch rear, 9.4 inches of travel at both ends and 10.4 inches of ground clearance place this bike squarely in the serious dirt half of the class. Cornering ABS, KTM Motorcycle Traction Control, ride modes and KTM Ride-by-Wire engine maps are standard, and both ends of the suspension adjust by hand.
It rides like a big enduro that happens to carry 5.3 gallons of fuel, and that is both the appeal and the caveat. A 34.6-inch seat and a chassis set up for dirt confidence ask something of you before they give anything back. This one belongs to riders who actually spend their weekends on loose surfaces, not to anyone shopping for a plush armchair with luggage mounts. It ages honestly with maintenance, though pre-2023 builds carry a camshaft wear question worth a service-history check. Cruise control, quickshifter and heated grips are options here, not standard kit.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 105 hp (77 kW) @ 8,000 rpm |
|---|---|
| Torque | 74 lb-ft (100 Nm) @ 6,500 rpm |
| Displacement | 889 cc |
| Engine | Parallel twin |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front tire | 90/90-21 |
| Rear tire | 150/70-18 |
| Ground clearance | 10.4 in (263 mm) |
| Front travel | 9.4 in (240 mm) |
| Rear travel | 9.4 in (240 mm) |
| Seat height | 34.6 in (880 mm) |
| Fuel capacity | 5.3 gal (20 L) |
Equipment check
Chassis
Comfort
Connectivity
Drivetrain
Lighting
Safety
The first thing you deal with is the reach to the ground. At 34.6 inches you are on tiptoes at every light, and shorter riders will feel that all day. Rolling, it vanishes. The bar bend and peg position let you stand up without wrestling anything, and the slim upper tank leaves your knees in a natural place instead of splayed around a fat plastic block. At highway rpm the twin puts a fine buzz through the pegs, more texture than irritation, and the note out back is dry and hard rather than creamy. The seat is firm and narrow, which is right for a bike you move around on and wrong for four straight hours of interstate. At dusk the LED beam throws wide and even, so arriving late on unfamiliar dirt stays relaxed.
Potential camshaft wear
Some owners and forum reports indicate accelerated camshaft wear, especially on pre‑2023 build dates, which can lead to expensive engine repairs. The extent of the problem is debated, but it is a known concern among the community.
Cruise control intermittent after washing
Cruise control may stop working for about an hour after washing the bike, though rain does not trigger it. Suspected moisture in a sensor or connector; no official fix documented.
Cold start difficulty with high‑octane fuel
The 890 engine may experience hard starting when using E5/98 octane fuel; switching to E10/95 typically resolves the issue. Fuel additive recommended during winter storage.
Engine stalling with oil pressure warning
Some owners report the engine stalling with the low oil pressure warning light illuminating, sometimes preceded by a whining noise from the engine.
Handlebar switchgear cracking
The plastic switchgear housing on the handlebars can develop cracks, though functionality is not immediately affected. Replaced under warranty in reported cases.
Where this KTM 890 Adventure R pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Seat height
Forget spec-sheet bragging. Here's who the 890 Adventure R is actually built for.
This is the one you want on slickrock and sand. The 21-inch front, long travel and low fuel mass let you pick hard lines all day, then ride yourself back to the motel.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
It will cover your 300-mile mountain day, but you spend it high up on a firm, narrow seat. Fine fun on a good pass, more bike than you need if the route never leaves pavement.
Made for Black Hills · Blue Ridge Parkway · Cherohala Skyway
For BDR mileage the math works: 5.3 gallons, real luggage capacity, suspension you can set for a loaded bike. Plan around the seat height and check the camshaft history on early builds.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
If you're cross-shopping the older generation, here's what changed.

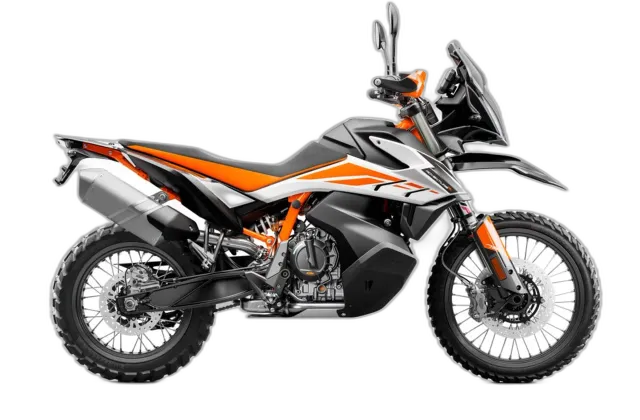

Previous generation · 2019
Rally DNA, Street Legal
Compare to the previous model →If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this KTM 890 Adventure R. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.

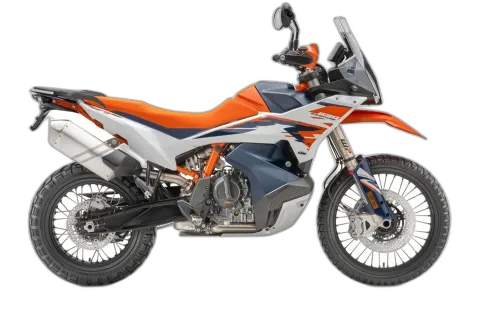

Successor · 2025
Orange Dirt Weapon, Street-Legal

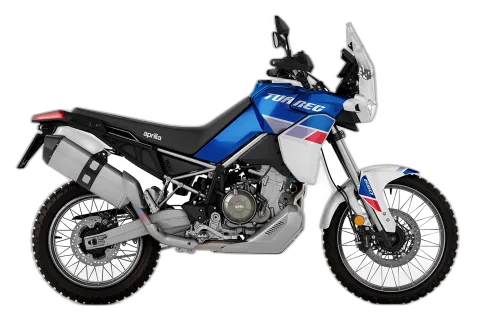

Competitor · 2022
Aprilia's Sharpest Dirt Handler
~$1,300 cheaper used than this bike at 4 yr
Competitor · 2026
Built to Go the Distance
Competitor · 2024
Sharp Handling, Road-Proven Confidence
Roughly $1,100 pricier used than this bike at 2 yr
Competitor · 2024
Sound, Soul, Some Compromise
Roughly $1,900 pricier used than this bike at 2 yr
Competitor · 2024
Quiet Reliability, Rocky Mountain Proven
Roughly $2,100 cheaper used than this bike at 2 yr

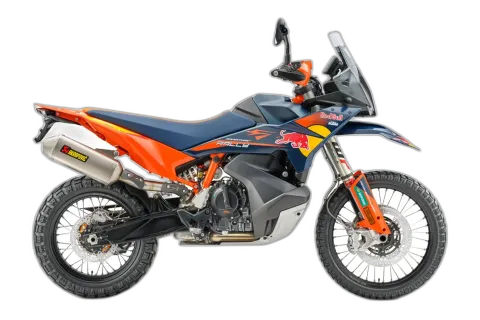

Same Platform · 2024
