2006–2009 · Scooter · Buyer's Guide

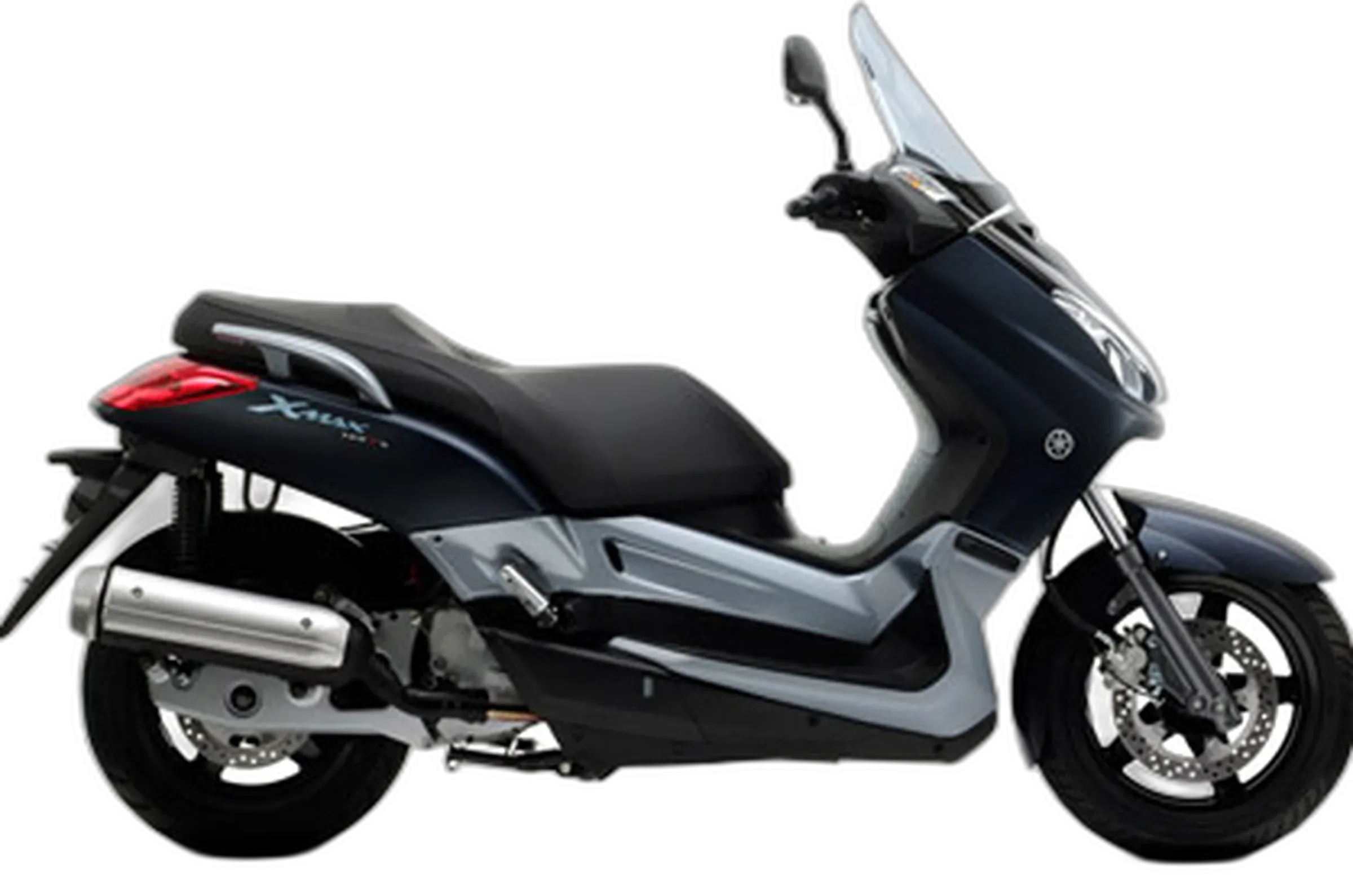

XMAX 125 (MY2006)
City Grunt, Full-Size Feel
The Machine's Character
The XMAX 125 is Yamaha's idea of a scooter that thinks bigger than its displacement. A liquid-cooled 124 cc single makes 14 hp at 8,750 rpm and 8 lb-ft at 6,500 rpm, and sends it to the rear wheel through a CVT and belt. The real story is the package around that engine. It has a steel tube frame, a 15-inch front wheel and a 14-inch rear, which is maxi-scooter architecture rather than small-wheel city fare. Yamaha built it as the sporty alternative in a class full of tiny wheels. Big scooter, small engine.
On paper, this hardware is built for the daily grind: commutes, errands and the stretch between home and work. The seat sits at 31.3 in (795 mm), there's generous storage under it, a center stand comes standard and the rear suspension takes preload adjustment. The 3.3 gal (12.5 L) tank and a listed 67 mpg work out to roughly 220 miles (355 km) per fill. That points to you if you want utility first and something more substantial than a basic scooter. One wear item to watch: worn variator rollers or a worn belt gradually cost top speed, and fresh parts bring it back. Pragmatic to the core.
Hard Numbers
Spec sheets don't ride bikes, but they set the baseline.
Show full specs & equipment Hide specs & equipment
| Power | 14 hp (10 kW) @ 8,750 rpm |
|---|---|
| Torque | 8 lb-ft (11 Nm) @ 6,500 rpm |
| Displacement | 124 cc |
| Engine | Single-cylinder |
| Cooling | Liquid-cooled |
| Final drive | Belt |
| Front tire | 120/70-15 |
| Rear tire | 140/70-14 |
| Seat height | 31.3 in (795 mm) |
| Fuel capacity | 3.3 gal (12.5 L) |
| Fuel economy | 67 mpg (US) |
Equipment check
Chassis
- Rear Suspension Adjustable Standard
Known issues
-
CVT variator roller wear causing top speed loss
Worn variator rollers or belt can lead to a gradual reduction in top speed, dropping significantly. Replacing the variator components and belt restores performance.
The Numbers Compared
Compare the technical specifications of the Yamaha XMAX 125 with other bikes in its class.
Head-to-head: Yamaha XMAX 125 vs. its rivals
Power
Torque
Displacement
Seat height
