2005 · Enduro · Buyer's Guide
Pure Dirt, Zero Compromise

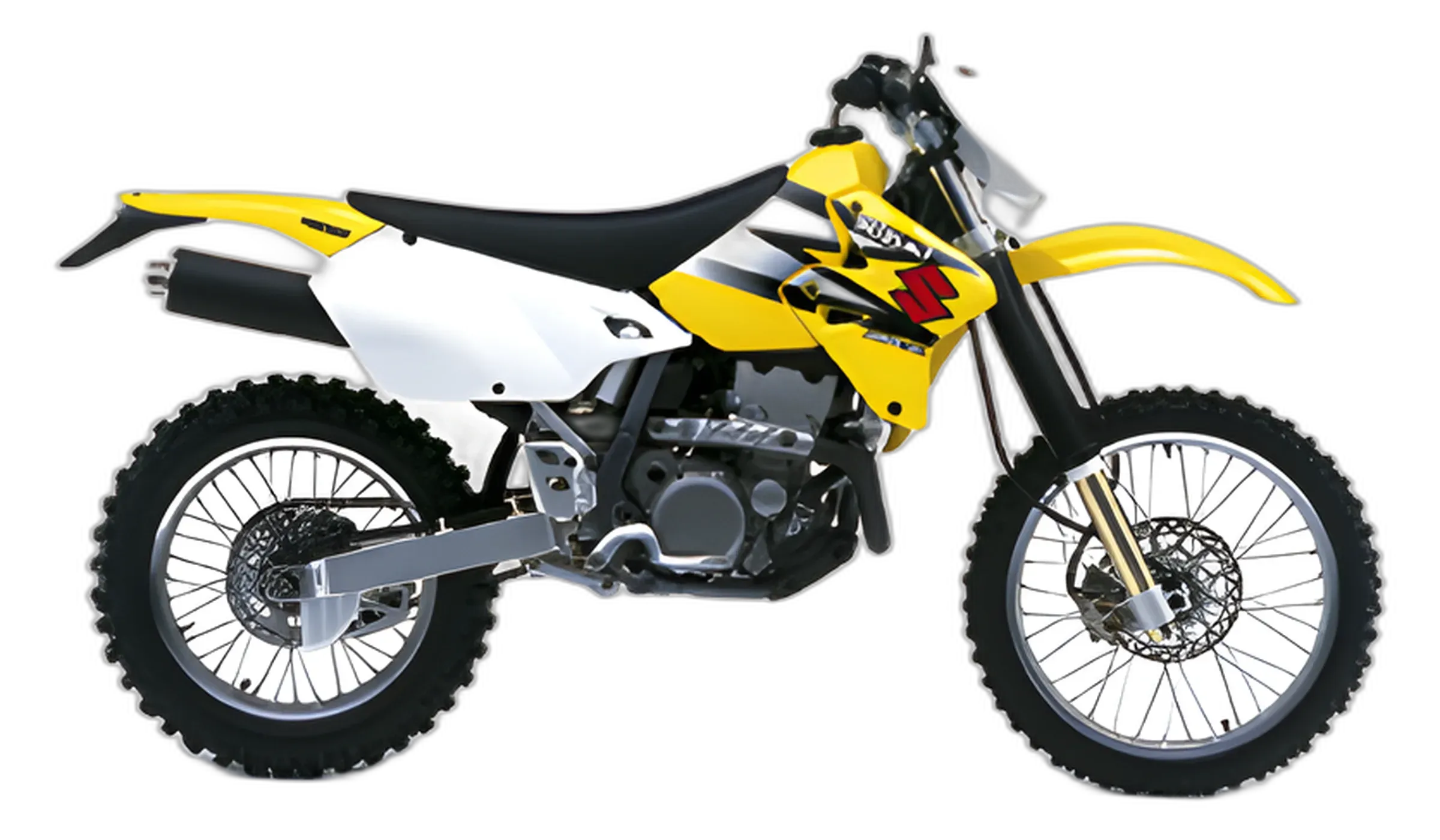

The DR-Z 400 E lives in the gap between a full motocrosser and a soft trail bike, and that middle ground is exactly what makes it work. The 398 cc liquid-cooled DOHC single makes 49 hp and 29 lb-ft, fed by a Keihin FCR39 carburetor that keeps the midrange strong enough to pull a steep climb without theater. Showa suspension sits at both ends, adjustable from the factory, with 11.5 in (292 mm) of fork travel and 11.6 in (295 mm) at the rear over a steel single cradle frame. The E trim skips the street hardware: no mirrors, no turn signals, no heavy steel tank.
At 287 lb (130 kg) wet, with 12.8 in (325 mm) of ground clearance and a 37.2 in (945 mm) seat, it asks you to stand up and commit, then pays you back for it. Electric start means no ritual halfway up a hill. The engine has earned a loyal following for durability, and the parts catalog behind it runs deep enough that you can build the bike around whatever terrain you actually ride. It suits experienced off-road riders who want feedback and precision, and stays forgiving enough for intermediates to grow into. The honest caveat: 2.6 gal (10 L) is not much fuel, and a few fasteners want watching.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 49 hp (36 kW) |
|---|---|
| Torque | 29 lb-ft (39 Nm) |
| Displacement | 398 cc |
| Engine | Single-cylinder |
| Cooling | Liquid-cooled |
| Gearbox | 5-speed |
| Final drive | Chain |
| Fork | Telescopic |
| Front brake | 250 mm |
| Front tire | 80/100-21 |
| Rear tire | 110/100-18 |
| Wheelbase | 58.5 in (1485 mm) |
| Ground clearance | 12.8 in (325 mm) |
| Front travel | 11.5 in (292 mm) |
| Rear travel | 11.6 in (295 mm) |
| Seat height | 37.2 in (945 mm) |
| Wet weight | 287 lb (130 kg) |
| Fuel capacity | 2.6 gal (10 L) |
Equipment check
Chassis
Over the years the DR-Z 400 E has come up in more paddock conversations, club nights, and owner chats than most bikes its age, and riders still write to me directly about theirs. What comes back is consistent: deep trust in the mechanical side of this bike, paired with a familiar, repeating list of comfort and hardware complaints.
Reliability is the first thing owners bring up, and it comes up more than anything else. The single has a reputation for running thousands of hard off-road miles on basic maintenance, and riders who have put that mileage on say so plainly. Close behind is how easy the bike is to live with mechanically. Owners point to the accessible layout and the minimal electronics as the reasons most of the work stays in their own garage. Power delivery gets described nearly the same way by everyone: clean pull from just off idle, with enough torque in technical going that riders are not hunting for revs.
The fork and shock draw steady praise. Riders describe both ends as compliant straight out of the crate, and they treat the adjusters as something they actually use rather than ignore. The same owners talk about how little effort it takes to place the bike in tight woods, where the slim chassis and low weight let them steer with their body. One caveat shows up just as reliably: add a passenger or a heavy load and the shock runs through its travel fast. Riders who carry weight end up talking about stiffer springs.
The stock seat is the loudest gripe. Narrow, firm, and painful past about an hour, in almost identical wording from one owner to the next. Seat height comes up nearly as often, and shorter riders are blunt about it, especially when the ground under a stop is broken or sloped. The front brake draws steady criticism from riders pushing the pace off-road, who say it lacks bite and feel. Beyond that, owners point to a short list of known weak points they sort out preventively rather than wait on.
Automatic cam chain tensioner failure
The stock ACCT can over-tighten or fail, leading to cam chain noise and possible engine damage. Many owners replace it with a manual tensioner as a precaution.
Primary drive nut coming loose
The nut securing the primary drive gear on the right-hand, clutch-side end of the crankshaft can back off over time. This produces a knocking noise from the clutch side of the engine and, if it goes unnoticed, can lead to severe internal engine damage.
Countershaft sprocket nut loosening
The nut securing the front sprocket can work itself loose, causing a rattle or total loss of drive. Applying high-strength Loctite on the splines and retorquing prevents the issue.
Water pump seepage
Coolant may weep from the water pump housing due to a failing seal or impeller shaft O-ring. Often cured with a new gasket or RTV sealant.
Where this Suzuki DR-Z 400 E pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Seat height
Forget spec-sheet bragging. Here's who the DR-Z 400 E is actually built for.
This is your bike for the genuinely technical stuff. It clears ledges, stays composed in sand, and takes a suspension setting for the day. Just plan fuel: 2.6 gal goes fast on a long desert loop.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
Right for scouting the hard sections, wrong for the whole route. No luggage system, no street equipment, and 2.6 gal of fuel turn multi-day BDR logistics into a fight you do not need.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
