2025 · Enduro · Buyer's Guide

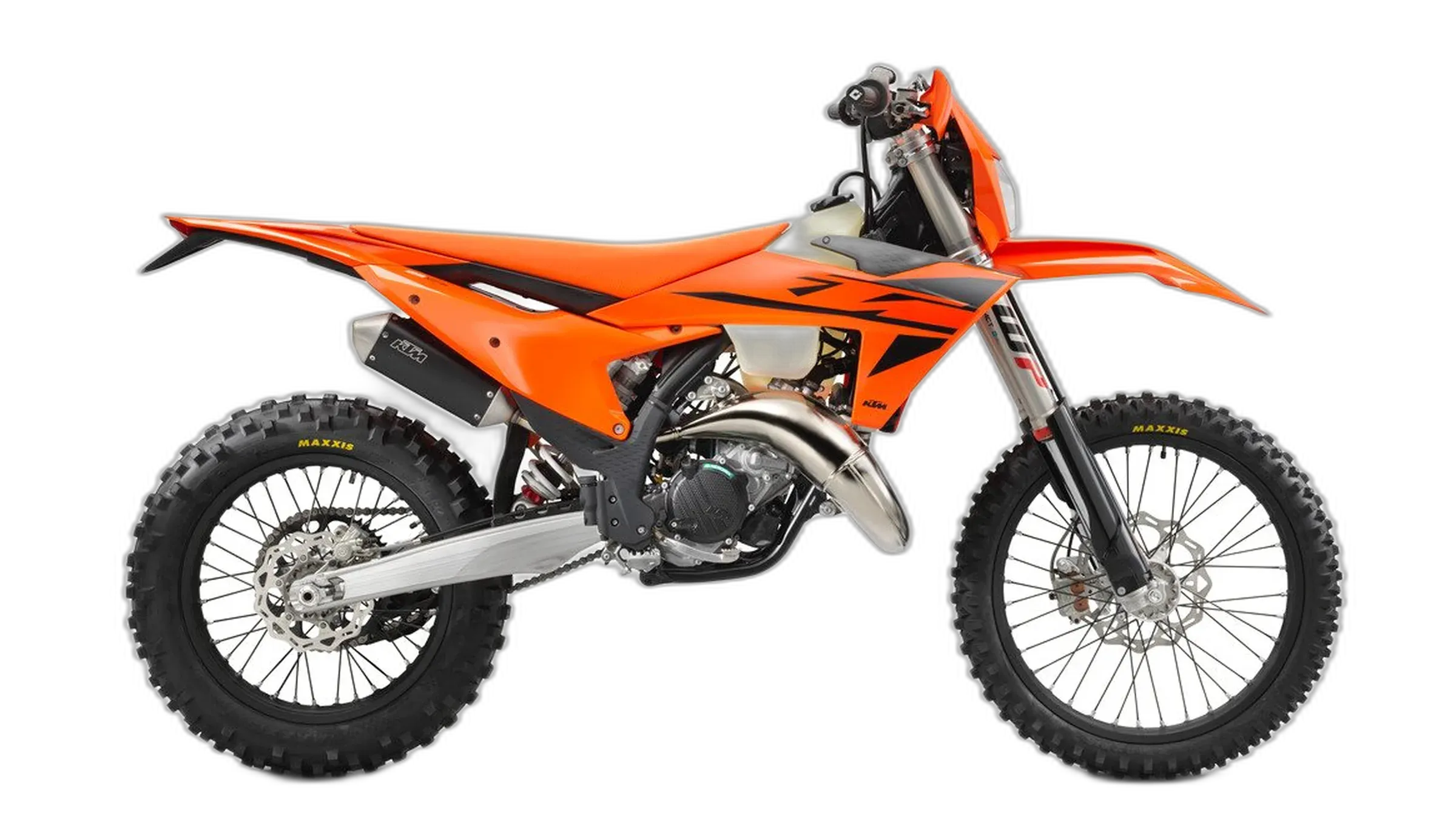

125 XC-W (MY2025)
Two-Stroke Trail Scalpel
The Machine's Character
The 125 XC-W is built around a liquid-cooled two-stroke single with throttle body injection, making 41 hp and 18 lb-ft from 125 cc through a six-speed box and chain drive. The frame is a steel central double-cradle, the fork a WP XACT closed cartridge unit, the rear a PDS shock, and both ends are adjustable from the factory. Electric start, two selectable ignition maps, an LED headlight. Ground clearance is 13.7 inches with 11.8 inches of travel up front and 12.2 at the rear. In its class it is the small-bore specialist for terrain where weight is the enemy.
This one rewards a rider who works. It asks for clutch and commitment rather than displacement, and it gives back the kind of precision that makes a bad line recoverable instead of terminal. That suits technical trail riders, skilled small-bore enthusiasts, and anyone building skill in rocks and ruts. The honest caveats are physical and practical. Seat height is 37.8 inches, so short riders will be on tiptoes at every stop, and the 2.4-gallon tank sets a firm limit on how far you get between fills. Two-stroke ownership also means a consumables rhythm you either accept or resent.
Hard Numbers
Spec sheets don't ride bikes, but they set the baseline.
Show full specs & equipment Hide specs & equipment
| Power | 41 hp (30 kW) |
|---|---|
| Torque | 18 lb-ft (25 Nm) |
| Displacement | 125 cc |
| Engine | Single-cylinder |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Ground clearance | 13.7 in (347 mm) |
| Front travel | 11.8 in (300 mm) |
| Rear travel | 12.2 in (310 mm) |
| Seat height | 37.8 in (960 mm) |
| Fuel capacity | 2.4 gal (9.2 L) |
Equipment check
Chassis
- Front Suspension Adjustable Standard
- Rear Suspension Adjustable Standard
Lighting
- LED Headlight Standard
Safety
- Ride Modes Standard
Known issues
-
Brake fade or spongy feel
Air in brake lines or worn pads can cause a soft lever and reduced stopping power. Bleeding the system and replacing pads resolves it.
-
Suspension sag or inadequate damping
Some owners may experience a harsh ride or bottoming if suspension settings are not adjusted for rider weight and terrain. Regular checks and clicker adjustments help.
-
Clutch slippage from worn plates
Worn clutch plates or improper adjustment can lead to slippage and power loss during acceleration. Regular inspection and timely replacement keep the clutch smooth.
-
Clogged air filter may cause low-RPM throttle issues
A dirty air filter can restrict airflow, leading to stalling or hesitation at low RPMs despite the TBI system. Regular cleaning is recommended.
-
Electrical starting issues from weak battery
A failing battery or loose connections can cause intermittent starting problems or a non-responsive starter. Battery maintenance and secure connections prevent this.
-
Hardware loosening and plastic panel cracking
Some owners report that hardware may loosen and plastic panels can crack due to vibration or impacts, particularly after rough off-road use.
The Numbers Compared
Compare the technical specifications of the KTM 125 XC-W with other bikes in its class.
Head-to-head: KTM 125 XC-W vs. its rivals
Power
Torque
Displacement
Seat height
Alternatives to the KTM 125 XC-W
If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
