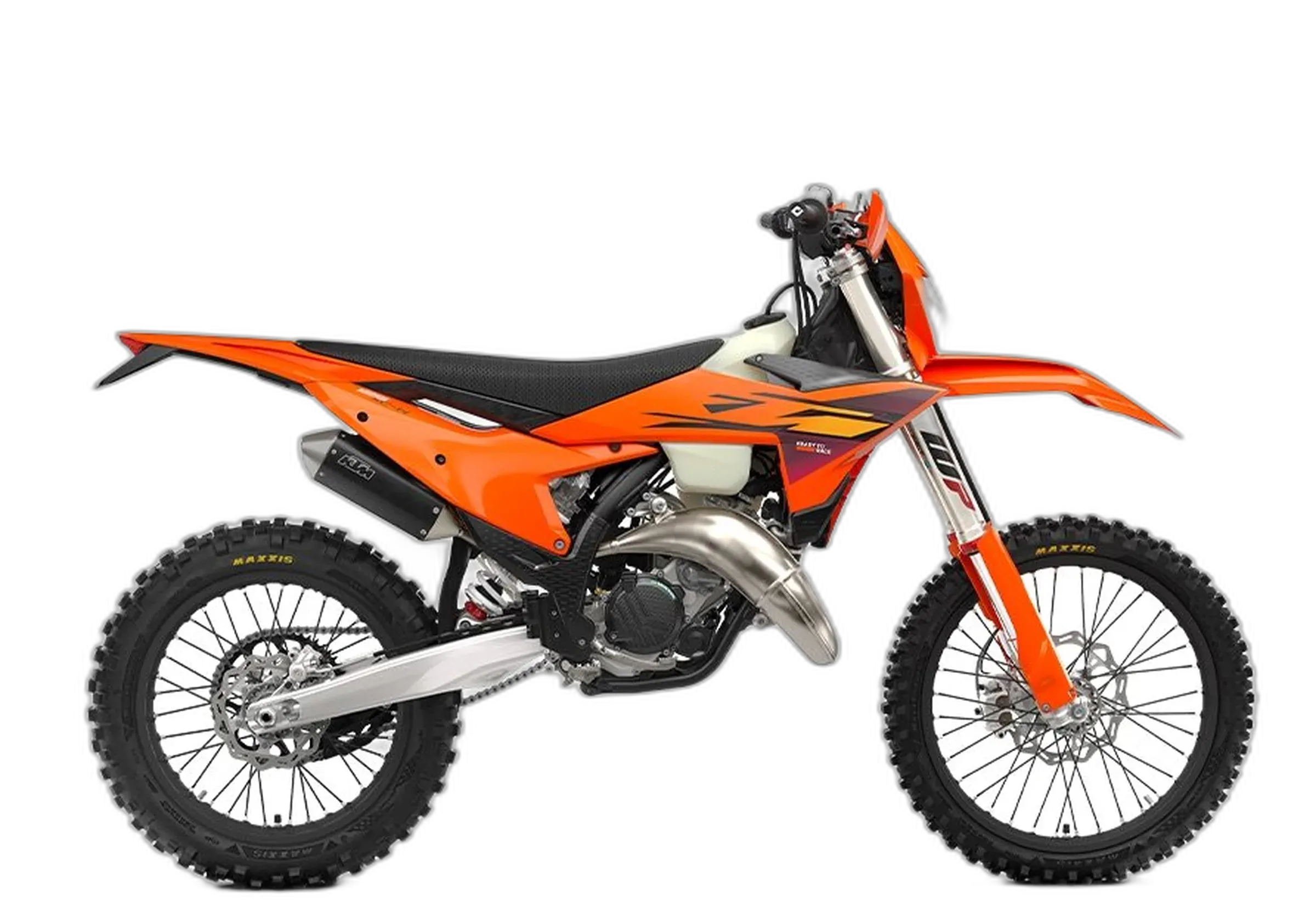

125 XC-W 2026 (MY2026)

Two-Stroke Enduro Race Tool

The Machine's Character

Strip the trail paint off and this is a race bike. The 125 cc liquid-cooled single runs throttle body injection, makes 37 hp with 16 lb-ft under it, and sits in a chromoly double-cradle frame with an aluminum subframe and forged triple clamps. WP's 48 mm closed-cartridge XACT fork and the XPLOR PDS shock give 11.8 inches of travel up front and 12.2 at the rear, both adjustable by hand. Brembo brakes, six speeds, electric start off a small lithium battery. In the small-bore enduro class this one sits at the competition end, not the easygoing trail end.

Riding it properly means standing up, reading the ground, and keeping the engine where it pulls. That is the bargain with a full-competition machine, and it ages on the same terms: built to come apart, be serviced, and go back out, so it stays sharp for as long as you keep up with it. This is for experienced off-road riders who spend their weekends in rocks, ruts, and steep technical ground and want the lightest thing that will get up them. The honest catch is a 37.8 inch seat and a 2.4 gallon tank. Neither was drawn up for casual trail days.

Hard Numbers

Spec sheets don't ride bikes, but they set the baseline.

Show full specs & equipment Hide specs & equipment
Key specifications
Power 37 hp (27 kW)
Torque 16 lb-ft (22 Nm)
Displacement 125 cc
Engine Single-cylinder
Cooling Liquid-cooled
Gearbox 6-speed
Fork Upside-down (USD)
Front tire 90/90-21
Rear tire 120/90-18
Ground clearance 13.7 in (347 mm)
Front travel 11.8 in (300 mm)
Rear travel 12.2 in (310 mm)
Seat height 37.8 in (960 mm)
Fuel capacity 2.4 gal (9 L)

Equipment check

Chassis

  • Front Suspension Adjustable Standard
  • Rear Suspension Adjustable Standard

Lighting

  • LED Headlight Standard

Safety

  • Ride Modes Optional
Aerial drone view of Palomar Divide Road winding through chaparral-covered mountain ridges in San Diego County. Multiple S-curve sections descend through sparse vegetation with distant valley views visible in the haze. Gravel and packed-earth surface.

The Numbers Compared

Compare the technical specifications of the KTM 125 XC-W 2026 with other bikes in its class.

Head-to-head: KTM 125 XC-W 2026 vs. its rivals

What's new versus the previous generation

If you're cross-shopping the older generation, here's what changed.

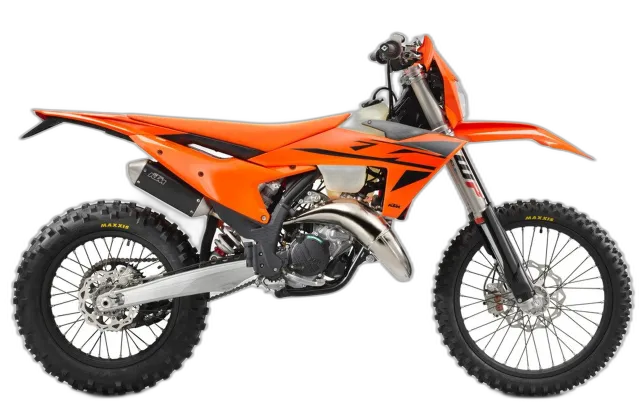

KTM 125 XC-W (MY2025)

Previous generation · 2025

KTM 125 XC-W (MY2025)

Two-Stroke Trail Scalpel

Compare to the previous model →
