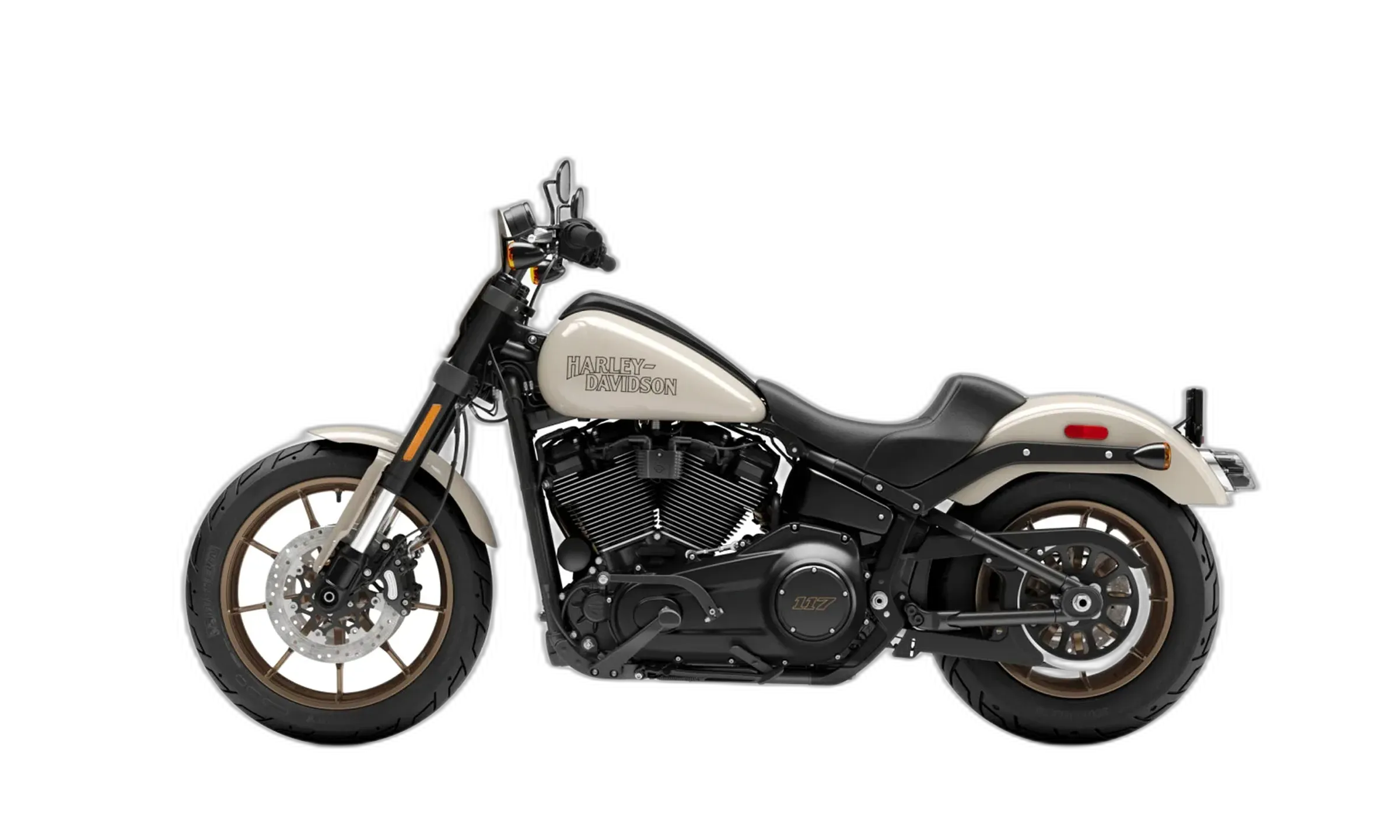

Harley-Davidson Low Rider S FXLRS: Specs & Facts

The Machine's Character

The Low Rider S is the factory custom in Harley-Davidson's Softail line that's built with performance in mind. Its heart is the Milwaukee-Eight 117, a 1923 cc 45° V-twin cooled by air and oil. It's rated at 105 hp at 4,750 rpm and 124 lb-ft at 3,500 rpm. That torque arriving so low in the rev range tells you what this engine is about: shove, not revs. It sits in a steel-tube frame with a belt to the rear wheel and a 19-inch front. ABS, cruise control, an adjustable rear shock and an LED headlight come standard, and traction control is on the options list. Lots of metal, on purpose.

On paper, this hardware is for you if you want a cruiser's presence but plan to ride harder than the boulevard asks. The seat is low at 28.0 in (710 mm) and the wheelbase is long at 63.6 in (1,615 mm). The mid-mount foot controls, though, put you in a more upright, committed stance than a classic feet-forward layout. At 679 lb (308 kg) wet, it's a heavy machine with a low center of gravity, and the 5.0 gal (18.9 L) tank allows decent stretches between fuel stops. Everything here points to a performance cruiser for solo riding. Back roads first, boulevard second.

Hard Numbers

Spec sheets don't ride bikes, but they set the baseline.

Show full specs & equipment Hide specs & equipment

Key specifications
Power	105 hp (78 kW) @ 4,750 rpm
Torque	124 lb-ft (168 Nm) @ 3,500 rpm
Displacement	1923 cc
Engine	45° V-twinMotorcycles With V-Twin Engines →
Cooling	Air/oil-cooled
Gearbox	6-speed
Final drive	BeltMotorcycles With Belt Drive →
Front tire	110/90-19
Rear tire	180/70-16
Wheelbase	63.6 in (1615 mm)
Seat height	28.0 in (710 mm)Motorcycles With a Seat Height Under 30 Inches →
Wet weight	679 lb (308 kg)
Fuel capacity	5.0 gal (18.9 L)

Equipment check

Chassis

Manually Adjustable Rear Suspension Standard
Cruise Control Motorcycles With Cruise Control → Standard

Lighting

LED Headlight Standard

Safety

ABS Standard

Known issues

Clutch cable adjuster prone to break

drivetrain rare

The in-line clutch cable adjuster on this Low Rider S can crack and break. It sits under its rubber boot on the frame downtube, where a clip holds the cable to the frame. When it fails, the cable suddenly goes slack and the lever can no longer disengage the clutch.
Rear shock adjuster mounting tab recall

suspension rare Recall

In affected 2018-2024 Softail models including the Low Rider S, the rear shock adjuster mounting tab can fracture, causing the adjuster to contact and cut into the rear tire, risking sudden pressure loss. Harley issued a recall to install a bracket to limit adjuster movement.

The Numbers Compared

Compare the technical specifications of the Harley-Davidson Low Rider S FXLRS with other bikes in its class.

Technical specs vs. the class average

Head-to-head: Harley-Davidson Low Rider S FXLRS vs. its rivals

Power

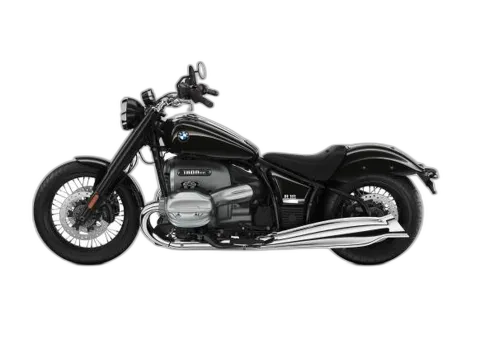

105 hp This bike 91 hp BMW R 18 105 hp Indian Scout Classic 96 hp Moto Guzzi California 1400 Eldorado 125 hp Suzuki Boulevard M109R

Torque

124 lb-ft This bike 117 lb-ft BMW R 18 82 lb-ft Indian Scout Classic 89 lb-ft Moto Guzzi California 1400 Eldorado 118 lb-ft Suzuki Boulevard M109R

Displacement

1923 cc This bike 1802 cc BMW R 18 1250 cc Indian Scout Classic 1380 cc Moto Guzzi California 1400 Eldorado 1783 cc Suzuki Boulevard M109R

Wet weight

679 lb This bike 761 lb BMW R 18 553 lb Indian Scout Classic 743 lb Moto Guzzi California 1400 Eldorado 765 lb Suzuki Boulevard M109R

Seat height

28.0 in This bike 27.2 in BMW R 18 26.8 in Indian Scout Classic 28.3 in Moto Guzzi California 1400 Eldorado 27.8 in Suzuki Boulevard M109R

Alternatives to the Harley-Davidson Low Rider S FXLRS

If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.

Any price note compares both bikes at the same age — the youngest age both have on the used market — against this Harley-Davidson Low Rider S FXLRS. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
