2009–2012 · Adventure · Buyer's Guide
Raw Orange Dirt Weapon

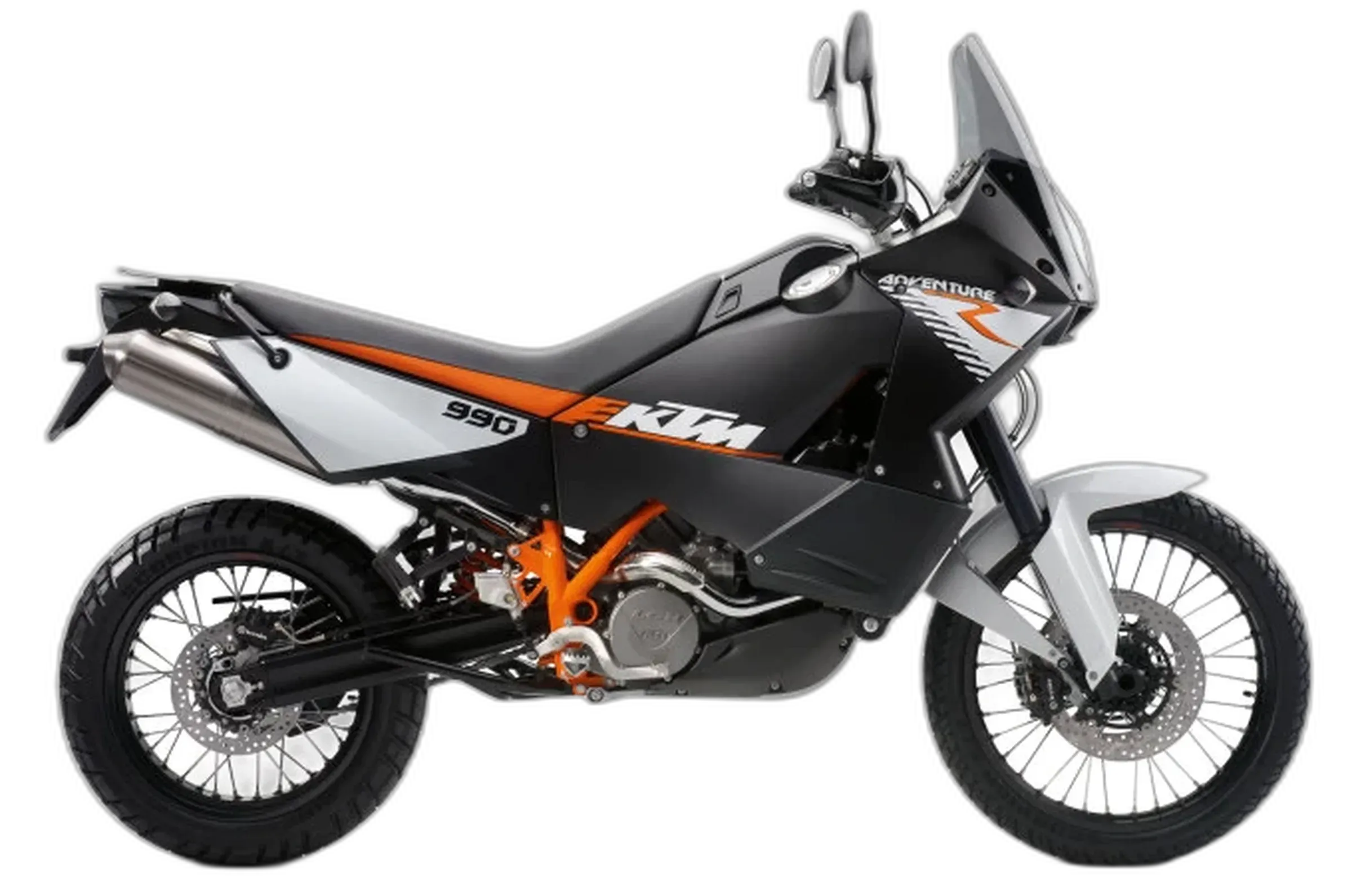

The 990 Adventure R is KTM's big V-twin with the dirt setting turned all the way up. The 999 cc 75° LC8 twin makes 115 hp at 8,750 rpm and 74 lb-ft at 6,750 rpm. It sits in an orange steel trellis frame that makes no secret of where this bike wants to go. The chassis is what defines the R. It has fully adjustable WP suspension with 10.4 in (265 mm) of travel at both ends, 12.4 in (316 mm) of ground clearance and a 90/90-21 front tire. This is not a road bike dressed up for gravel. It is a big-bore off-roader that can also go touring.
On the move it feels planted. It stays calm at highway speed, the suspension holds its composure when the surface falls apart, and there's lean clearance to spare on a mountain pass. The honest caveat is that this is an analog machine. There's no ABS, no traction control and no ride modes, and the fueling can get snatchy at part throttle in town. It also needs attention as it ages: water pump seals, the clutch slave cylinder, a main fuse relay that corrodes, and spokes that rust without protection. Stay on top of that list and you get a big twin for skilled riders who spend real time in the dirt.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 115 hp (85 kW) @ 8,750 rpm |
|---|---|
| Torque | 74 lb-ft (100 Nm) @ 6,750 rpm |
| Displacement | 999 cc |
| Engine | 75° V-twin |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front brake | 300 mm |
| Front tire | 90/90-21 |
| Rear tire | 150/70-18 |
| Ground clearance | 12.4 in (316 mm) |
| Front travel | 10.4 in (265 mm) |
| Rear travel | 10.4 in (265 mm) |
| Seat height | 36.0 in (915 mm) |
| Wet weight | 509 lb (231 kg) |
| Fuel capacity | 5.2 gal (19.5 L) |
| Fuel economy | 36 mpg (US) |
Equipment check
Chassis
Comfort
This picture comes from years of listening: paddock talk, long chats with owners, club nights, and the messages riders send me directly. On the 990 Adventure R, what they tell me is consistent. People love how it pulls and how it steers, and they're just as open about the upkeep it asks for.
The engine gets the most praise. Riders consistently describe a torquey twin with real character. It will lug through a trail and still pull hard out of a corner. Handling comes next. Owners say it feels light and flickable for its size, on pavement and on fire roads, and composed at speed over rough ground. Some also mention the Brembo brakes and the confidence they give.
The most common complaint is the throttle down low. In traffic, owners say it takes a gentle right hand to keep the bike from jerking. The clutch slave cylinder comes up in stories about riders left stranded, and many swap it before it fails. A few say the chain needs regular cleaning after dirt riding, which a shaft-drive bike doesn't ask for.
Water pump shaft/seal premature wear
The water pump shaft and seals are known to wear prematurely, leading to coolant leaks. Replacing them proactively around 12,000–19,000 mi (20,000–30,000 km) is common.
Low-speed EFI fueling glitches
The engine can feel snatchy and surge at partial throttle in town riding. A TPS adjustment or an aftermarket ECU remap often alleviates the issue.
Clutch slave cylinder seal leakage
The OEM clutch slave cylinder seal can fail, causing fluid loss and a loss of clutch pressure. Upgrading to an aftermarket cylinder (Oberon, Evoluzione) is a widely recommended fix.
Main fuse relay corrosion
The main fuse relay, located under the right side panel, is exposed to water and road salt, leading to corrosion and starting problems. Regular cleaning and protective spray are advised.
Spoke corrosion
The spokes rust easily if not protected with ACF-50, particularly after winter or off-road use. This is mainly a cosmetic issue but can weaken the wheel over time.
Where this KTM 990 Adventure R pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Seat height
Forget spec-sheet bragging. Here's who the 990 Adventure R is actually built for.
For Moab and Johnson Valley, the long-travel suspension, 21 in front and tall ground clearance are right at home. Just know that 509 lb is a lot to pick up in deep sand, so your skills have to match.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
It will run Mount Lemmon or the Blue Ridge with stability and lean clearance to spare. But a 36 in seat, snatchy town fueling and no cruise control ask more of you on 400 mi days than a true sport-tourer.
Made for Black Hills · Blue Ridge Parkway · Cherohala Skyway
The suspension shrugs off the rough BDR sections, but at 509 lb it's no middleweight, and 36 mpg from a 5.2 gal tank needs planning. Budget for water pump and clutch slave work too.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
If you're cross-shopping the older generation, here's what changed.
Previous generation · 2003–2006
Dakar DNA, Street Legal
Compare to the previous model →If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this KTM 990 Adventure R. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
Successor · 2013–2016
Superbike Power, 21-Inch Front
Competitor · 2006–2013
The Globe-Trotter's Flat Twin
About the same used price as this bike at 14 yr
Competitor · 2008–2011
Torque, Shaft Drive, Italian Character
Roughly $1,000 cheaper used than this bike at 15 yr
Competitor · 2010–2014
Superbike Soul, Touring Skin
About the same used price as this bike at 14 yr
