2013–2016 · Adventure · Buyer's Guide
Superbike Power, 21-Inch Front

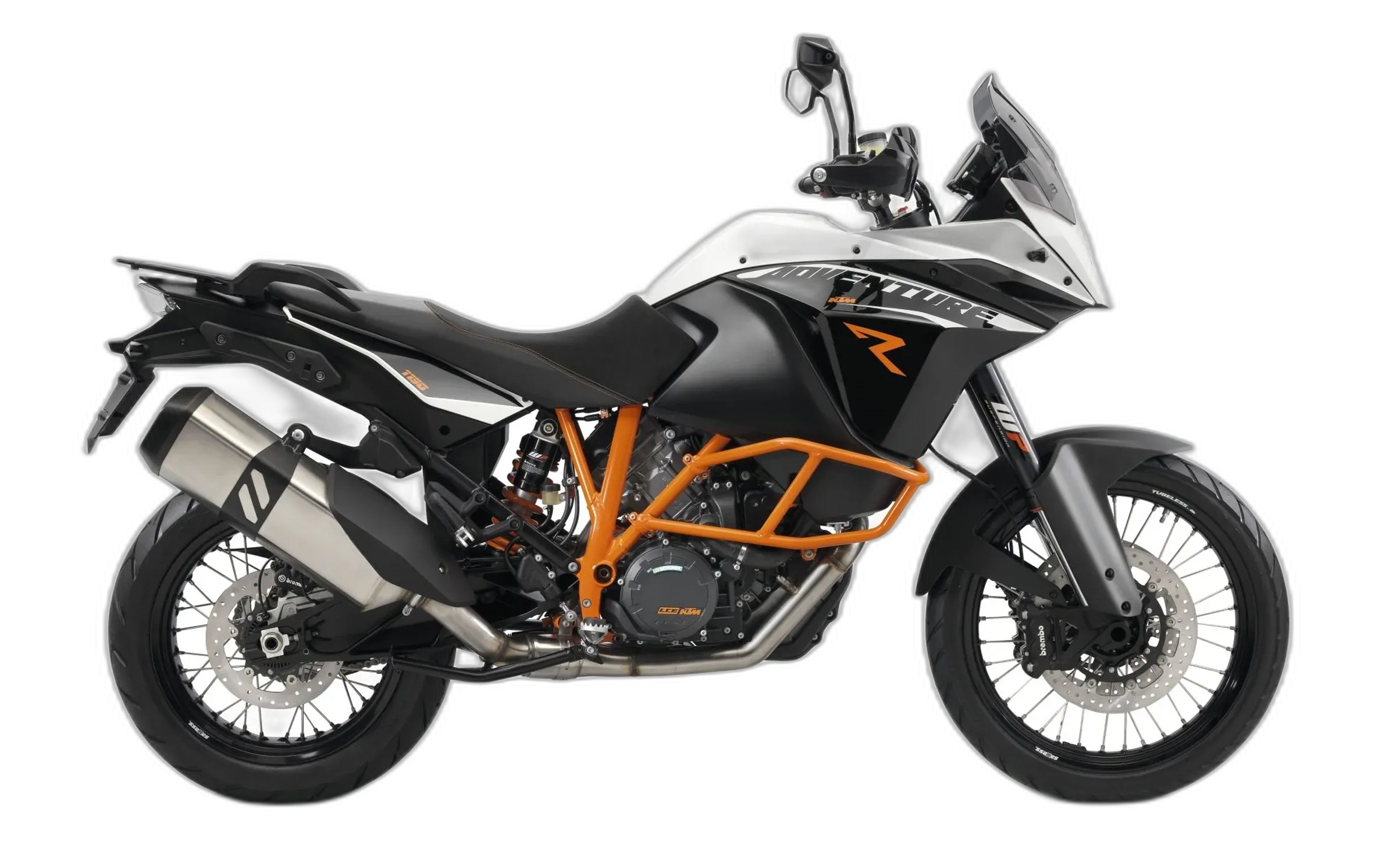

The 1190 Adventure R runs a 1195 cc 75° V-twin making 150 hp at 9,500 rpm and 92 lb-ft at 7,500 rpm, which is sportbike money bolted into a chassis built around a 21-inch front wheel, 8.7 inches of travel at both ends and 9.8 inches of ground clearance. KTM did not soften the engine to make this thing polite for tourists. It added ABS, traction control and ride modes, a steering damper and a slipper clutch, then left the character alone. That is what separates this generation from the big adventure bikes built to keep everyone comfortable.
The payoff is a bike that feels tall, narrow and permanently ready to go, and stays settled when the pace climbs toward the 140 mph (225 km/h) end of the dial. Ownership is where you pay attention. Water pump seals, fork seals and the rear shock body all turn up as high-mileage items, so any used example deserves a look at the oil sight glass and the fork legs before money moves. This one suits an experienced rider who genuinely rides dirt and accepts the upkeep that comes with the performance. At 35.0 inches, the seat rules out shorter riders.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 150 hp (110 kW) @ 9,500 rpm |
|---|---|
| Torque | 92 lb-ft (125 Nm) @ 7,500 rpm |
| Displacement | 1195 cc |
| Engine | 75° V-twin |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front brake | 320 mm |
| Front tire | 90/90-21 |
| Rear tire | 150/70-18 |
| Wheelbase | 62.2 in (1580 mm) |
| Ground clearance | 9.8 in (250 mm) |
| Front travel | 8.7 in (220 mm) |
| Rear travel | 8.7 in (220 mm) |
| Seat height | 35.0 in (890 mm) |
| Wet weight | 505 lb (229 kg) |
| Fuel capacity | 6.1 gal (23 L) |
| Top speed | 140 mph (225 km/h) |
| Fuel economy | 37 mpg (US) |
Equipment check
Chassis
Comfort
Connectivity
Drivetrain
Safety
None of this comes from a press kit. It's what I've picked up over years in paddocks, at club nights, and in the messages riders send me after a season on the bike. On the 1190 R the pattern holds steady: riders rate how it performs well above how it treats them.
The loudest agreement is about rough ground. Owners describe a bike that stays composed in technical terrain and gives them confidence where the going gets awkward. The V-twin earns nearly the same weight of praise, called the strongest engine in the class with a top end that keeps pulling. Riders also come back to how nimble it feels for its size, with steering they describe as precise and cornering they can predict. The electronics get credit for backing them up without flattening the character.
Early reliability is the recurring sore point, with owners reporting sealing and electrical faults, though many report things improving with miles and maintenance. The stock seat draws steady criticism as hard and badly shaped for long days, and plenty of owners swap it. Warmth reaching the rider at slow speed comes up often too. A smaller group finds the side stand lets the bike lean too far to park it safely on uneven ground.
Wiring harness abrasion near ABS modulator (recall)
Improper routing causes wire harness to fray against ABS modulator, creating risk of brake line meltdown and brake failure. Recall 16V854000: inspection and repositioning required.
Exhaust heat damaging electronics
Excessive heat from the exhaust can cause damage to the ECU and other electronics, potentially leading to stalling or starting issues.
Rear shock corrosion and failure
The rear shock body is susceptible to corrosion from road salt and heat, leading to loss of damping performance. Reported around 53,000 miles.
Front wheel bearing failure
Front wheel bearings may fail prematurely, resulting in grinding noise and play. Noted at approximately 60,000 miles.
Water pump seal failure
Seals between oil and coolant degrade, leading to contamination. Visible as yellow sludge in oil sight glass. Typically occurs between 25,000 and 55,000 miles.
Fork seal leaks
Fork seals prone to weeping, especially after exposure to salt, dirt, or high-mileage use. Regular cleaning and seal replacement may be needed.
Oil level sensor failure
Oil level sensor may fail at high mileage, giving false low-oil warnings. Replacement resolves the issue.
Where this KTM 1190 Adventure R pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Top speed
Seat height
Forget spec-sheet bragging. Here's who the 1190 Adventure R is actually built for.
The clearance, the 21-inch front and the travel are all there for slickrock and sand, and the power never runs dry. Just know that 505 lb means choosing lines early and real work picking it up.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
For 200 to 400 mile days on Highway 1 or the Blue Ridge it works well, with lean clearance to spare and a 6.1 gal tank for long legs. You live with the 35.0 in seat and chain upkeep.
Made for Black Hills · Blue Ridge Parkway · Cherohala Skyway
Range, clearance and adjustable suspension all suit loaded multi-day routes. It is heavier than the middleweights you are shopping, so plan your days around the weight, not the horsepower.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
If you're cross-shopping the older generation, here's what changed.

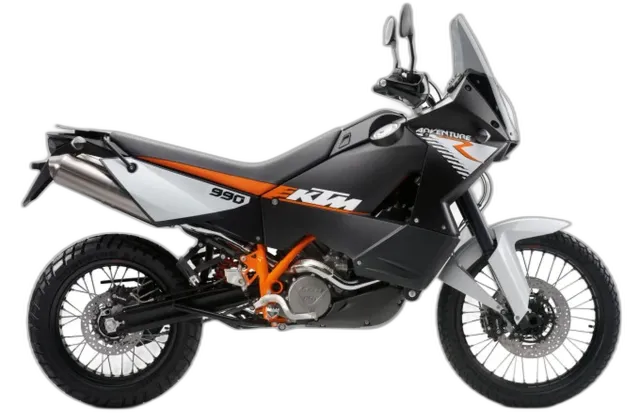

Previous generation · 2009–2012
Raw Orange Dirt Weapon
