2017–2019 · Adventure · Buyer's Guide
The Oversized Enduro

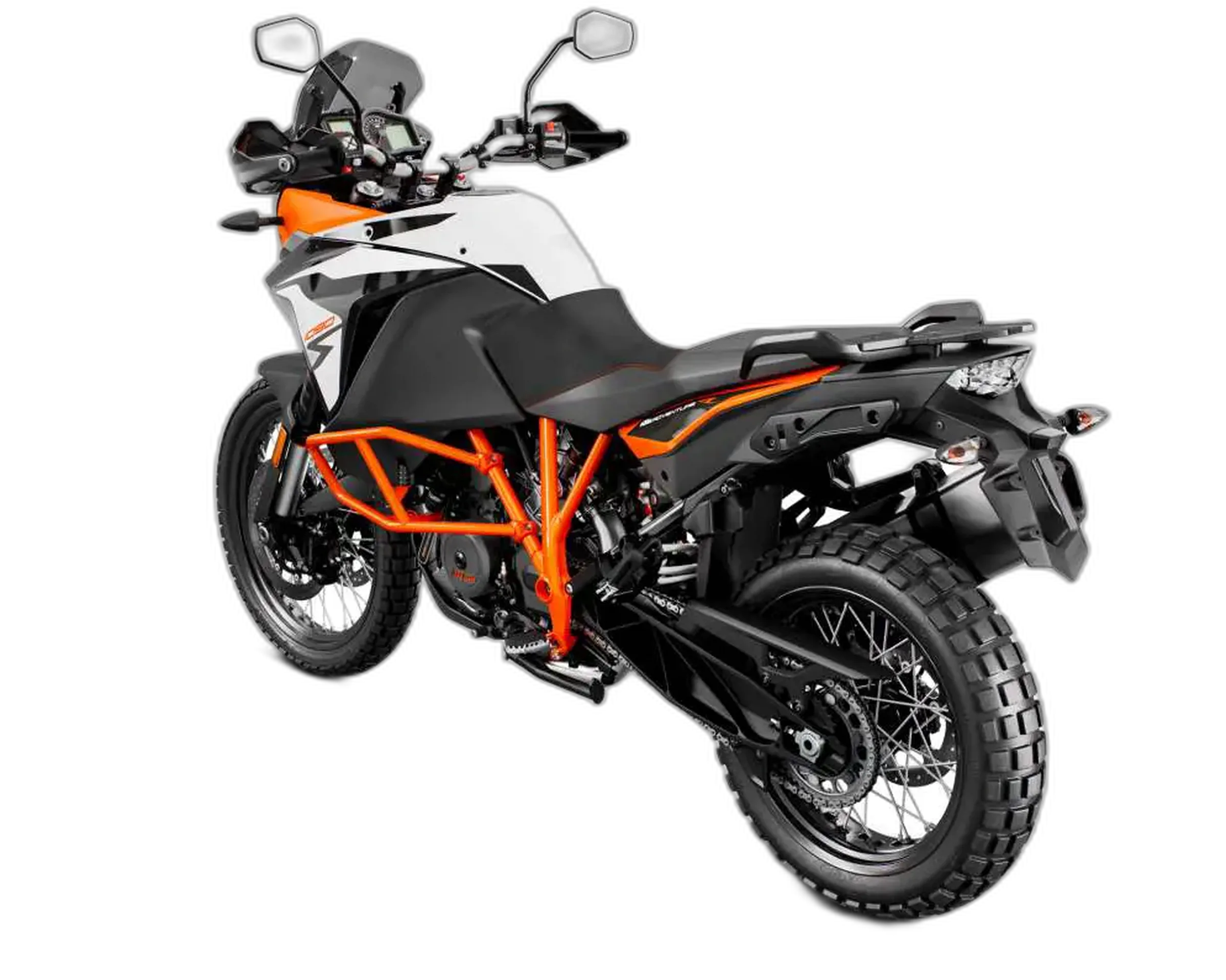

The 1090 Adventure R is KTM's dirt-first take on the big adventure bike. Its 1050 cc, 75° V-twin makes 125 hp and 80 lb-ft, hung in a chassis built around a 21-inch front wheel, 8.7 inches of WP travel at both ends, and 9.8 inches of ground clearance. KTM aimed this one at the raw off-road end of the class instead of piling on luxury. You still get ABS, KTM's MTC traction control, ride modes, and ride-by-wire mapping, but the real priorities live in the suspension and the geometry. It reads more like an oversized enduro than a touring rig.
On the road it runs tall and lean, with a 35.0-inch seat and long travel that reward a rider comfortable standing on the pegs. High-speed stability is genuinely good, the chassis stays sporty, and the WP hardware takes hard use without complaint. It is built for people who ride dirt seriously and treat pavement as the connective tissue between trailheads. The honest caveat is reliability you have to stay on top of. Airbox sealing, fuel pump, and fuel-sensor gremlins are real on this generation, and if you ignore them they can leave you stranded a long way from home.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 125 hp (92 kW) @ 8,500 rpm |
|---|---|
| Torque | 80 lb-ft (108 Nm) @ 6,500 rpm |
| Displacement | 1050 cc |
| Engine | 75° V-twin |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Fork | Upside-down (USD) |
| Front tire | 90/90-21 |
| Rear tire | 150/70-18 |
| Ground clearance | 9.8 in (249 mm) |
| Front travel | 8.7 in (220 mm) |
| Rear travel | 8.7 in (220 mm) |
| Seat height | 35.0 in (889 mm) |
| Fuel capacity | 6.1 gal (23 L) |
Equipment check
Chassis
Drivetrain
Safety
Swing a leg over and the height registers immediately. At 35.0 inches the seat puts you above traffic and asks for a confident inseam. The bar is wide and set for standing, so once you are up on the pegs the bike feels natural under your boots and the 21-inch front tracks straight through ruts and gravel. The V-twin thrums through the tank with that hard-edged KTM cadence, never syrupy, always telling you what the rear tire is doing. The 6.1-gallon tank stretches a real day between fuel stops. On fast, broken pavement the long WP legs soak up hits your spine would otherwise take, and the bike stays planted at speed instead of getting nervous. It is physical, tall, and honest about what it wants to do.
Over the years I've kept a running log of what 1090 Adventure R owners tell me: threads I follow, conversations in the paddock, and the steady stream of emails and messages riders send after living with the bike. The pattern is consistent. They love how it runs and where it takes them, but a couple of gaps come up again and again.
Riders consistently describe the V-twin as strong without being intimidating, the kind of motor that pulls hard once you spin it up and rewards higher revs with a real top-end rush. The common complaint sits in the middle of the rev range. Many owners notice a dip in power around 5,000 rpm and find themselves working the gearbox more to keep it in the meat of the delivery.
The other recurring theme is how little this trim carries for long days. Owners point to the absent cruise control, cornering ABS, and TFT dash, with a center stand available only as an option rather than fitted. A smaller group raises a design worry: the side stand bolts to the engine case, and a bad drop can bend it into the case if the repair isn't handled carefully.
Continental TKC80 tire tread cracking (22V-588)
Affects 2019 models equipped with TKC80 tires. Tires may develop superficial cracking in tread grooves. Recall involves tire replacement.
Airbox sealing / intake issues
Poor airbox sealing can allow unfiltered air into the engine, particularly an issue carried over from the 1190 platform. Aftermarket gaskets are available to fix it.
Starting problems and erratic running
A few owners reported starting difficulties, knocking sounds, and vibrations, leading to a complete replacement bike in one case. Cause unclear.
Fuel level sensor sticking
The fuel level sensor can get stuck on full, requiring a DIY fix that involves shaving a component.
Fuel pump failures
Some owners report premature fuel pump issues, which can cause stranding. Installing a filler neck filter is a popular preventive measure.
Where this KTM 1090 Adventure R pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Seat height
Forget spec-sheet bragging. Here's who the 1090 Adventure R is actually built for.
This is your bike. The 21-inch front, long WP travel, and enduro-light chassis let you attack slickrock and sand with real confidence. Stay on top of the reliability quirks and it fits your day perfectly.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
You can string together great days on Highway 1 or the Blue Ridge, but know the trade: a 35-inch seat, no cruise control, and a dirt-first setup. It tours willingly, yet it is happiest when the road turns rough.
Made for Black Hills · Blue Ridge Parkway · Cherohala Skyway
You want range and backcountry capability, and the 6.1-gallon tank plus serious WP hardware deliver. Just plan for the fact that it carries more muscle and weight than a true middleweight on tight, technical sections.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
