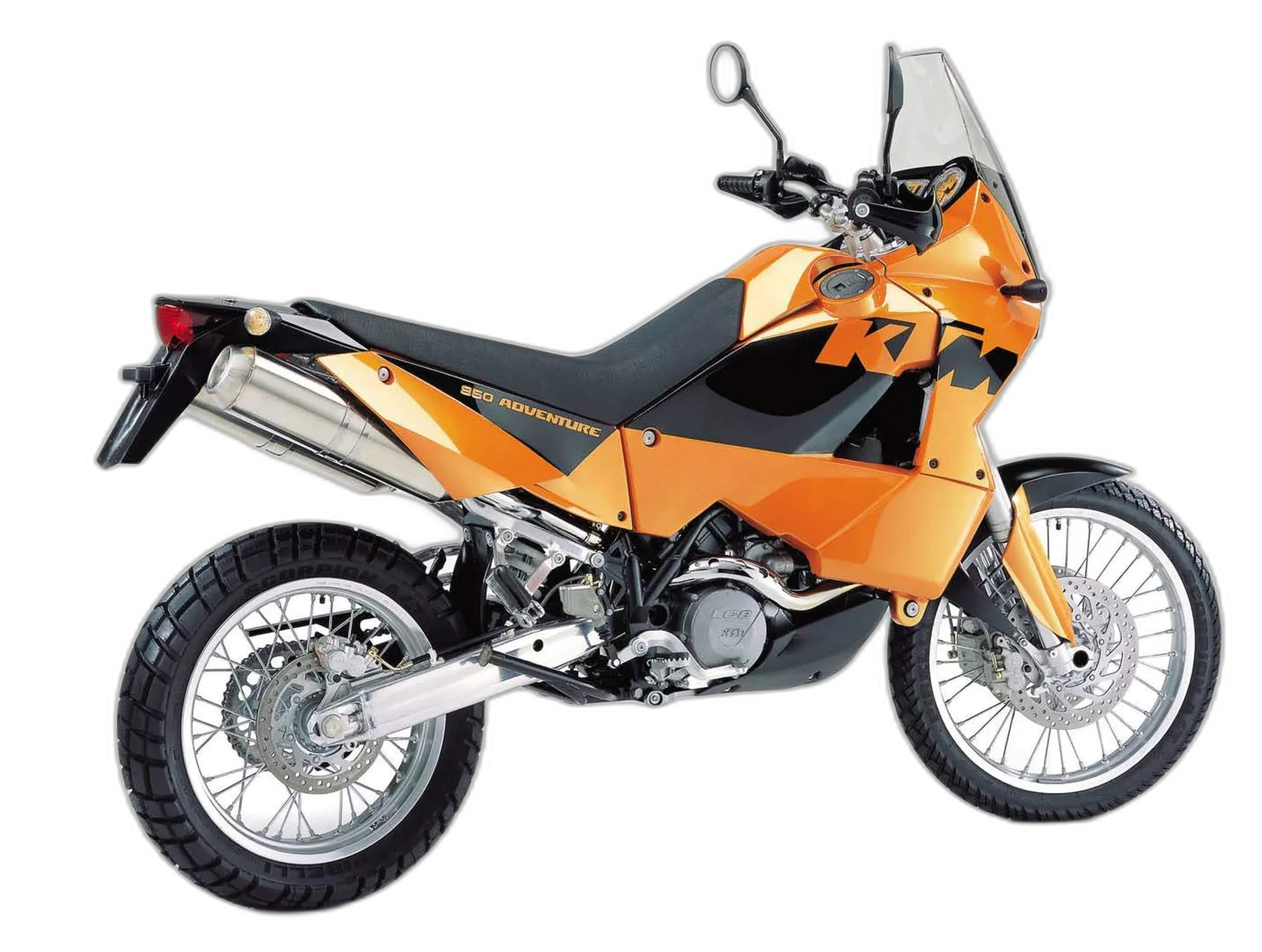

KTM 950 Adventure S 2003–2006: Specs & Facts

The Machine's Character

The 950 Adventure S is the version of KTM's first big adventure bike built for riders who mean to leave the pavement. It takes the rally-bred design and puts it on WP suspension with 10.4 in (265 mm) of travel at both ends, adjustable front and rear, plus 12.4 in (316 mm) of ground clearance. It runs a 21-inch front wheel and an 18-inch rear. The 942 cc, 75° LC8 V-twin makes 98 hp and 70 lb-ft, with real pull low in the rev range. It sits in a steel trellis frame. There's no ABS, no traction control and no ride modes. Your right wrist is the only rider aid.

This is a bike for experienced riders. The seat is 36.0 in (915 mm) high and the bike weighs 491 lb (223 kg) wet, so short riders and nervous beginners will struggle at a standstill. Once it's moving, it's stable at speed and has lean clearance to spare. It also ages like a hard-used tool. Water pump seals tend to go between 9,300 and 19,000 mi (15,000 and 30,000 km), clutch slave cylinders leak, and damp connectors cause electrical faults. Buy one with its history, then sort these items properly.

Hard Numbers

Spec sheets don't ride bikes, but they set the baseline.

Show full specs & equipment Hide specs & equipment

Key specifications
Power	98 hp (72 kW) @ 8,000 rpm
Torque	70 lb-ft (95 Nm) @ 6,500 rpm
Displacement	942 cc
Engine	75° V-twin
Cooling	Liquid-cooled
Gearbox	6-speed
Final drive	Chain
Fork	Upside-down (USD)
Front brake	300 mm
Front tire	90/90-21
Rear tire	150/70-18
Ground clearance	12.4 in (316 mm)
Front travel	10.4 in (265 mm)
Rear travel	10.4 in (265 mm)
Seat height	36.0 in (915 mm)
Wet weight	491 lb (223 kg)
Fuel capacity	5.8 gal (22 L)

Equipment check

Chassis

Front Suspension Adjustable Standard
Rear Suspension Adjustable Standard

Known issues

Water pump shaft and seal failure

engine common

The water pump shaft and seals are prone to leakage and failure, often occurring between 9,300 and 19,000 mi (15,000 and 30,000 km). Aftermarket rebuild kits or ceramic replacements are common fixes.
Clutch slave cylinder failure

drivetrain common

The hydraulic clutch slave cylinder frequently leaks or fails, leading to loss of clutch function. Replacing with an aftermarket unit (e.g., Oberon) is a common remedy.
Electrical connector corrosion

electrics occasional

Moisture ingress leads to corrosion of electrical connectors, especially around the dash and engine sensors, causing sporadic electrical faults. Regular cleaning and dielectric grease can prevent this.
Starter clutch noise/failure

engine occasional

Some early models experience a loud clanking noise when starting, indicating a failing starter clutch. This may require replacement of the starter clutch mechanism.
Exhaust and oil pipe corrosion

exhaust occasional

The exhaust system, particularly below the side panels, and the oil pipe are prone to rust, especially on bikes used in wet climates or not garaged.

The Expert Benchmark

Where this KTM 950 Adventure S pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.

What kind of bike this is — character vs. the class

Long-Range Trust

Offroad Credibility

Suspension Range & Load Control

Luggage-Ready Escape Value

Low-Speed Balance

Rider Command While Standing

Torque in the Dirt

This bike Class average

The shape of the KTM 950 Adventure S — numbers and character vs. the average Adventure

Head-to-head: KTM 950 Adventure S vs. its rivals

Power

98 hp This bike 85 hp BMW R 1150 GS Adventure 98 hp Aprilia ETV 1000 CapoNord 98 hp Kawasaki KLV 1000 98 hp Suzuki V-Strom 1000

Torque

70 lb-ft This bike 72 lb-ft BMW R 1150 GS Adventure 72 lb-ft Aprilia ETV 1000 CapoNord 74 lb-ft Kawasaki KLV 1000 74 lb-ft Suzuki V-Strom 1000

Displacement

942 cc This bike 1130 cc BMW R 1150 GS Adventure 998 cc Aprilia ETV 1000 CapoNord 996 cc Kawasaki KLV 1000 996 cc Suzuki V-Strom 1000

Wet weight

491 lb This bike 549 lb BMW R 1150 GS Adventure 474 lb Aprilia ETV 1000 CapoNord 525 lb Kawasaki KLV 1000 517 lb Suzuki V-Strom 1000

Seat height

36.0 in This bike 35.4 in BMW R 1150 GS Adventure 32.3 in Aprilia ETV 1000 CapoNord 32.7 in Kawasaki KLV 1000 32.1 in Suzuki V-Strom 1000

The Long-Haul Verdict

Forget spec-sheet bragging. Here's who the 950 Adventure S is actually built for.

Aerial view of a winding asphalt road cutting through volcanic terrain on La Gomera, Canary Islands. The road curves through sparse green vegetation with rocky volcanic peaks visible in the background and a settled valley to the left. Clear lane markings, dry climate, partly cloudy sky.

Best motorcycle for Moab?

You'll use every inch of that suspension travel and ground clearance on slickrock and in sand. Just remember it's a big twin, not an enduro, so pick your lines and your ledges with care.

Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area

Best motorcycle for Highway 1?

It's stable at speed, has lean clearance to burn and a 5.8 gal tank for long days. But the 36.0 in seat and zero comfort electronics will ask more of you than a proper sport-tourer.

Made for Black Hills · Blue Ridge Parkway · Cherohala Skyway

Best motorcycle for BDR routes?

The range and chassis are made for multi-day dirt routes. Before you plan anything, sort the water pump and clutch slave and clean the connectors, because a breakdown out there is the real risk.

Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
