2012–2013 · Enduro · Buyer's Guide
One Cylinder, Full Send

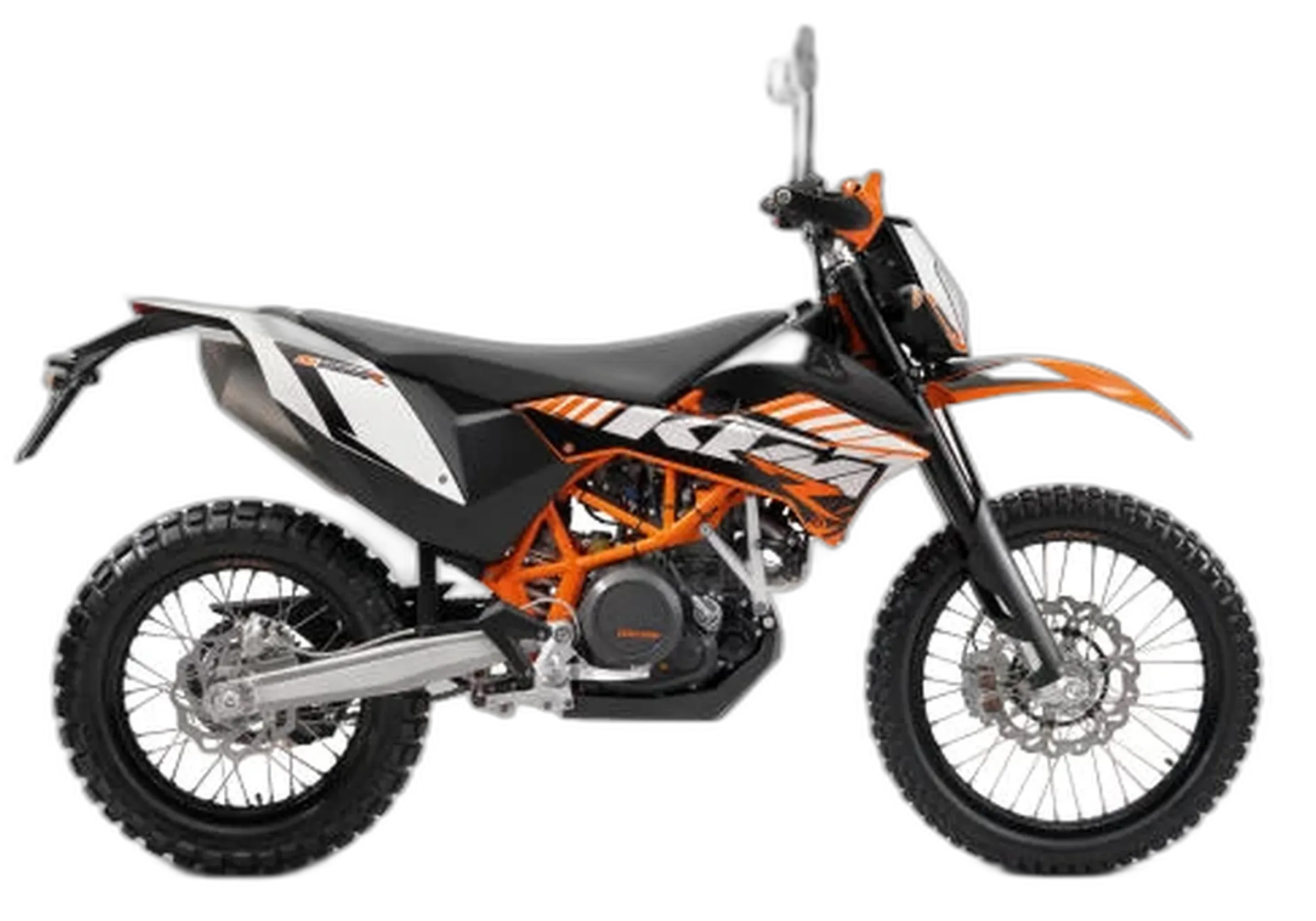

KTM built this one around a single job: put a real enduro chassis under a license plate. The 690 cc liquid-cooled single makes 67 hp and 50 lb-ft, and in a machine this narrow that is a lot of drive reaching the rear tire. Suspension is fully adjustable at both ends with 9.8 in (250 mm) of travel front and rear, 11.0 in (280 mm) of ground clearance underneath, and proper 21/18 wheels. None of that is styling. It is the hardware you need when the trail stops resembling a road, delivered with the directness KTM builds its reputation on.
It rewards a rider who commits. The pull arrives low enough that you can lug it through technical ground instead of slipping the clutch all day, and the 6-speed keeps highway gearing usable on the ride to the trailhead. How it ages is where I have to be straight with you. This bike wants an owner who checks things. The fuel pump can quit without warning, the rocker arm bearings can seize badly enough to require an engine teardown, and electrical faults turn up as random stalling. Buy one with service records, or plan on becoming your own mechanic.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 67 hp (49 kW) |
|---|---|
| Torque | 50 lb-ft (68 Nm) |
| Displacement | 690 cc |
| Engine | Single-cylinder |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Ground clearance | 11.0 in (280 mm) |
| Front travel | 9.8 in (250 mm) |
| Rear travel | 9.8 in (250 mm) |
| Seat height | 35.8 in (910 mm) |
| Fuel capacity | 3.2 gal (12 L) |
Equipment check
Chassis
Everything below comes from years of listening rather than riding. Paddock conversations, club nights, and the messages riders send me directly, all pointing the same direction on this bike: they love how it goes and worry about whether it will keep going.
The engine dominates the conversation. Riders describe the LC4 as the strongest single in the class, the kind that lifts the front wheel in third without asking. Handling comes up nearly as often, with riders calling it nimble on tight trails and happy to be thrown into corners. A good number call it a bike that covers commuting, trail days and long trips with almost nothing changed. A few mention the balance shaft keeping vibration low enough for big miles.
Reliability is the loudest thread in the chatter, and it comes up more than anything else riders say about this bike. The talk is about time spent wrenching, spares packed for longer trips, and a general expectation that something will need attention. Several also report the fork feeling soft, fine when the going is slow and technical, vague and diving on fast choppy ground and under hard braking.
Rocker arm bearing seizure
The rocker arm bearings can seize, causing severe engine damage. This issue is often linked to oil contamination or insufficient lubrication, and typically requires engine teardown to repair.
Fuel pump failure
The stock fuel pump is prone to sudden failure, often without warning, leading to engine stalling and leaving riders stranded. Many owners switch to aftermarket pumps or carry spares.
Electrical and stalling issues
Multiple electrical gremlins plague the 690, including intermittent stalling, sensor failures, and wiring loom problems. The dual ECU setup complicates diagnostics and can lead to unexpected loss of power.
Subframe cracking under luggage load
The plastic rear subframe is not designed for heavy luggage or passenger loads, and can crack when overloaded. Serious overlanders often reinforce or replace it with an aluminum alternative.
Fuel and coolant hose wear
Hoses can rub against the frame or engine casing, leading to premature wear and potential leaks. Zip-tying and protective sleeving are common preventative measures.
Radiator fan shroud wear
The fan shroud can rub against the radiator core, eventually wearing through the fins and causing coolant leaks. Regular inspection and preventative zip-ties are recommended.
Coolant pump seepage
The coolant pump seal can develop a leak, causing coolant to weep onto the engine case. If left unchecked, it can lead to overheating.
Fuel tank bolts loosening
The front tank mounting bolts can vibrate loose, causing the fuel tank to shift or rattle. Loctite and periodic tightening are necessary to prevent this.
Where this KTM 690 Enduro R pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Seat height
Forget spec-sheet bragging. Here's who the 690 Enduro R is actually built for.
This is your tool. Light enough to muscle around on slickrock, geared to lug through technical sections instead of popping off them, and plated so you ride to the trail. Budget wrench time between trips.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
It will run the routes, but it makes you work for them. The 3.2 gal tank keeps your legs short, and the plastic subframe does not love a loaded rack, so pack light and choose luggage carefully.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
If you're cross-shopping the older generation, here's what changed.

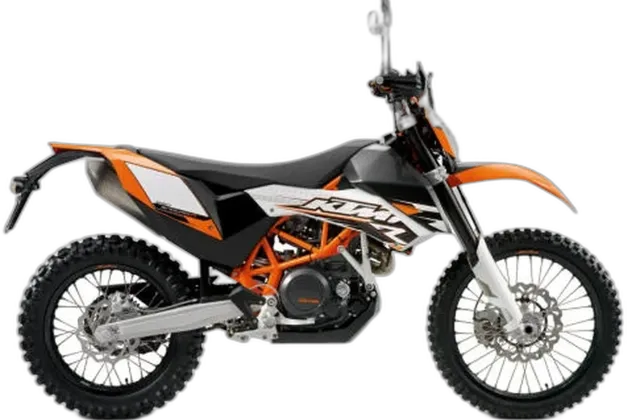

Previous generation · 2009–2011
Hardcore Single, Zero Compromise
Compare to the previous model →If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
