2025 · Enduro · Buyer's Guide

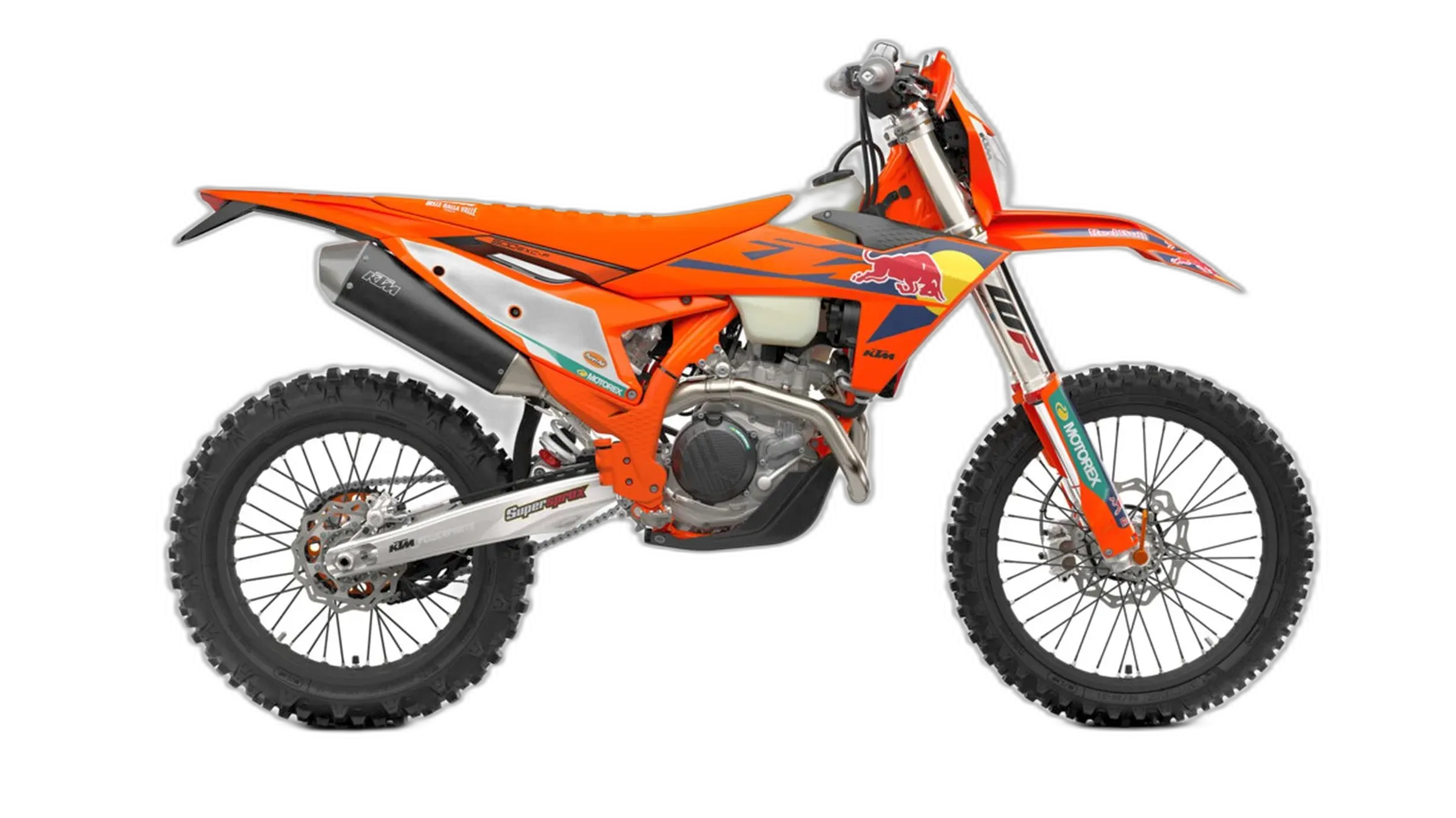

The Street-Legal Enduro Weapon
The Champion Edition is KTM's open-class enduro racer with a plate on it. The 511 cc liquid-cooled single makes 58 hp and 36 lb-ft, and the tuning chases drive off the bottom rather than a headline peak. Around it sits a chromoly steel frame, a fully adjustable upside-down fork and the WP XPLOR PDS Shock, with clickers you can turn by hand at the trailhead and ride modes on a bar switch. The Champion trim layers on Red Bull KTM Factory Racing graphics, an orange frame, an orange gripper seat and a run of PowerParts, so it arrives looking like it already won something.
It rides like what it is: a competition bike that happens to be registered. Traction comes easy, the six-speed is geared long enough to stay calm in the low gears, and the power is metered rather than explosive, which is exactly what this class needs. It suits a rider who already stands up, reads terrain, and enjoys being worked. The honest caveat is ownership. Seat height is 37.9 in, the tank holds 2.2 gal, and the maintenance rhythm belongs to a race engine. Grind along at walking pace in heavy single-track and heat becomes the limiting factor, not your nerve.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 58 hp (43 kW) |
|---|---|
| Torque | 36 lb-ft (49 Nm) |
| Displacement | 511 cc |
| Engine | Single-cylinder |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front brake | 260 mm |
| Front tire | 90/90-21 |
| Rear tire | 140/90-18 |
| Wheelbase | 58.6 in (1488 mm) |
| Ground clearance | 14.7 in (373 mm) |
| Front travel | 11.8 in (300 mm) |
| Rear travel | 12.2 in (310 mm) |
| Seat height | 37.9 in (963 mm) |
| Fuel capacity | 2.2 gal (8.5 L) |
Equipment check
Chassis
Lighting
Safety
The first thing your body registers is height. At 37.9 in you are tiptoeing unless you are tall, and the bike is so narrow between your knees that it barely feels like it has a middle. Sit down and the orange gripper seat pins your pants where you put them. Stand up and everything lines up the way a dirt bike should: bars, pegs, weight, and 14.7 in of air under the belly. The single has a dry, hard bark rather than a boom, and it stays crisp at revs instead of settling into a drone. You feel it through the pegs at a steady road pace, where the knobbies hum, the revs sit higher than a street rider expects, and the 2.2 gal tank keeps one eye on the map. It is a dirt bike out running errands, and it never pretends otherwise.
High‑RPM misfire (potential spark plug cap failure)
At high revs the engine may misfire or cut out, possibly due to a failing spark plug cap or spark plug. This issue has been observed on older KTM singles and may also affect the 2025 model after 30–40 hours.
Fork seal leaks
After hard use or following debris impact, fork seals can begin leaking oil, reducing front-end performance and feel. Regular cleaning and seal replacement resolves the issue.
Clutch slippage
High engine RPM without corresponding acceleration can occur when the clutch plates wear prematurely; inspecting and replacing the clutch pack is the common fix.
Engine overheating in slow, technical terrain
Several owners report the motor can overheat when the bike is ridden at very low speeds or in heavy single-track; symptoms include power loss and the engine warning light illuminating.
Brake fade under heavy use
Extended aggressive downhill riding can cause the brakes to overheat and lose power; replacing pads with high-temperature compounds and bleeding the fluid helps maintain performance.
Fuel starvation from clogged filter
Clogging in the fuel filter or fuel line can cause stalling, hesitation, or poor acceleration, typically after long periods of storage or use of low-quality fuel.
Battery drain issues
Some owners report difficulty starting or a drained battery, potentially caused by a faulty charging system or parasitic draw, requiring inspection of the electrical system.
Cracked plastics and loose bodywork
Plastic body panels and attached hardware can crack or loosen from impacts and vibration, leading to cosmetic damage and rattling noises.
Where this KTM 500 EXC-F CHAMPION EDITION pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Seat height
Forget spec-sheet bragging. Here's who the 500 EXC-F CHAMPION EDITION is actually built for.
This is your tool for the hardest lines in Moab, Johnson Valley or Ocotillo. Ride it as a day-trip weapon: the 2.2 gal tank and race-engine service schedule set the ceiling, not your skill.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
It handles track days and moto practice without complaint, and the open-class drive is all there. Know that it is geared and tuned for enduro terrain rather than a start gate.
Made for Carnegie State Vehicular Recreation Area · Fox Raceway at Pala · Glen Helen Raceway
Wrong tool for BDR logistics. No factory luggage, 2.2 gal of fuel, and a competition engine that wants attention long before your multi-day route is finished.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route

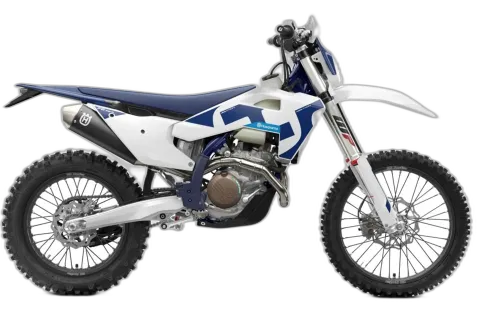

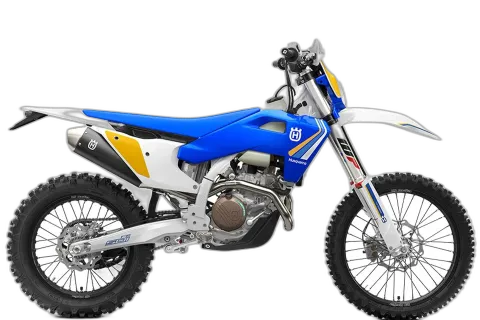

If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this KTM 500 EXC-F CHAMPION EDITION. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
