2023–2025 · Enduro · Buyer's Guide
Heritage Skin, Hardcore Bones

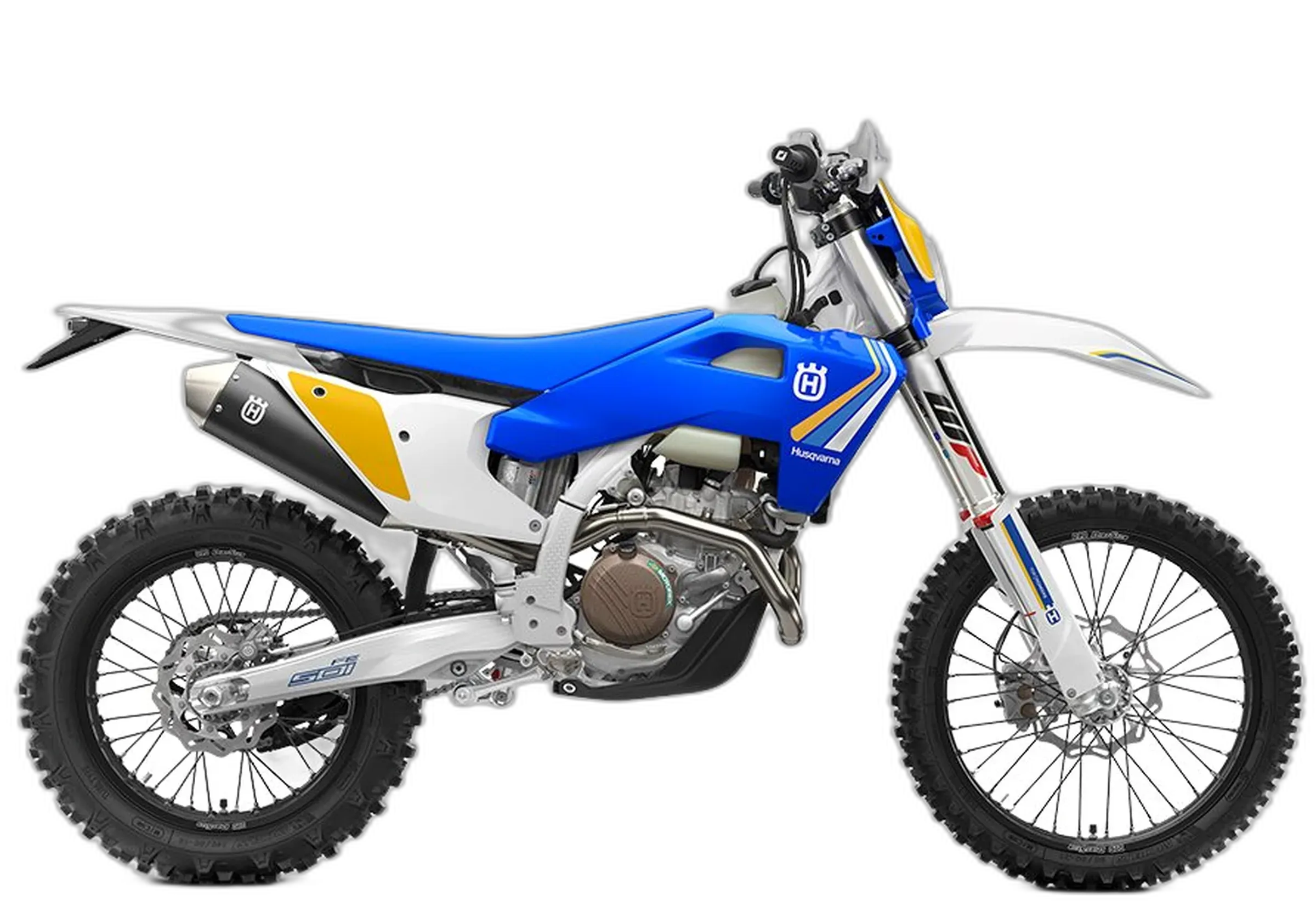

The Heritage is the FE 501s wearing a Swedish paint scheme and some extra jewelry, and that matters far less than what sits underneath it. The 511 cc liquid-cooled single lives in a light chromoly steel frame, feeding a 6-speed box and chain drive, with a 21-inch front and 18-inch rear that tell you exactly what this thing was drawn for. Suspension is adjustable at both ends, 11.8 in (300 mm) of travel front and rear, and 14.0 in (355 mm) of ground clearance under the cases. Traction control and ride modes come standard, which is more electronics than a plated dirt bike usually carries.
On the ground it behaves like a competition enduro that happens to wear a plate, and that is the honest frame for buying one. It rewards a rider who already reads terrain and holds traction, someone who doesn't need a big peak number to feel fast. Ownership asks something back, though. The 37.4 in (950 mm) seat rules out a lot of riders before the first mile, the 2.4 gal (9.2 L) tank keeps you on a short leash between fill-ups, and this is a machine that lives on an hours clock rather than a mileage one. Buy it for the terrain it opens up, not for the commute.
Spec sheets don't ride bikes, but they set the baseline.
| Displacement | 511 cc |
|---|---|
| Engine | Single-cylinder |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front brake | 260 mm |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Wheelbase | 58.3 in (1480 mm) |
| Ground clearance | 14.0 in (355 mm) |
| Front travel | 11.8 in (300 mm) |
| Rear travel | 11.8 in (300 mm) |
| Seat height | 37.4 in (950 mm) |
| Fuel capacity | 2.4 gal (9.2 L) |
Equipment check
Chassis
Safety
You sit tall and narrow on this one, and the first ten feet make it clear the seat is a plank rather than a couch. Standing is where the ergonomics finally make sense: the bars land where your hands already are, the tank stays thin between your knees, and the pegs put you over the front without a fight. The single has a real voice, a hard bark down low that settles into something you feel through your boots more than you hear. Vibration is present and honest, buzzing the pegs and grips as the revs climb. At road pace it feels busy, and you read every seam in the pavement through that 21-inch front. Off the pavement none of that registers anymore, and the bike goes quiet in the way machines do when they're finally doing the job they were built for.
Front brake caliper cracking (recall)
Faulty casting from a brake supplier sub-contractor can lead to the front brake caliper cracking at the upper guide pin, reducing braking effectiveness. Affects certain 2022–2024 FE 501s models equipped with BRAKTEC calipers. A safety recall has been issued for inspection and replacement if needed.
Hanging idle and power loss
Some owners report intermittent hanging idle and power loss, likely related to fueling or sensor calibration.
Fuel pump and filter premature failure
Fuel pumps and filters may need replacement around 200-300 hours, causing performance loss or starting issues.
Countershaft seal leak
The countershaft seal can leak over time, leading to oil seepage near the front sprocket.
Where this Husqvarna FE 501 Heritage pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Forget spec-sheet bragging. Here's who the FE 501 Heritage is actually built for.
Slickrock, sand and technical lines are this bike's native language, and there is travel and clearance enough to survive your mistakes. Just plan the day around that small tank.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
It will handle track work without complaint and the suspension is adjustable enough to set up for it. If the gate drop is your whole season, though, buy a dedicated race bike.
Made for Carnegie State Vehicular Recreation Area · Fox Raceway at Pala · Glen Helen Raceway
On the hard sections it is the sharpest tool you can bring. Logistics are the problem: 2.4 gal dictates your day, and there is no factory luggage to hang on it.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this Husqvarna FE 501 Heritage. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
