2005–2017 · Cruiser · Buyer's Guide
Chrome Canvas, Maximum Attitude

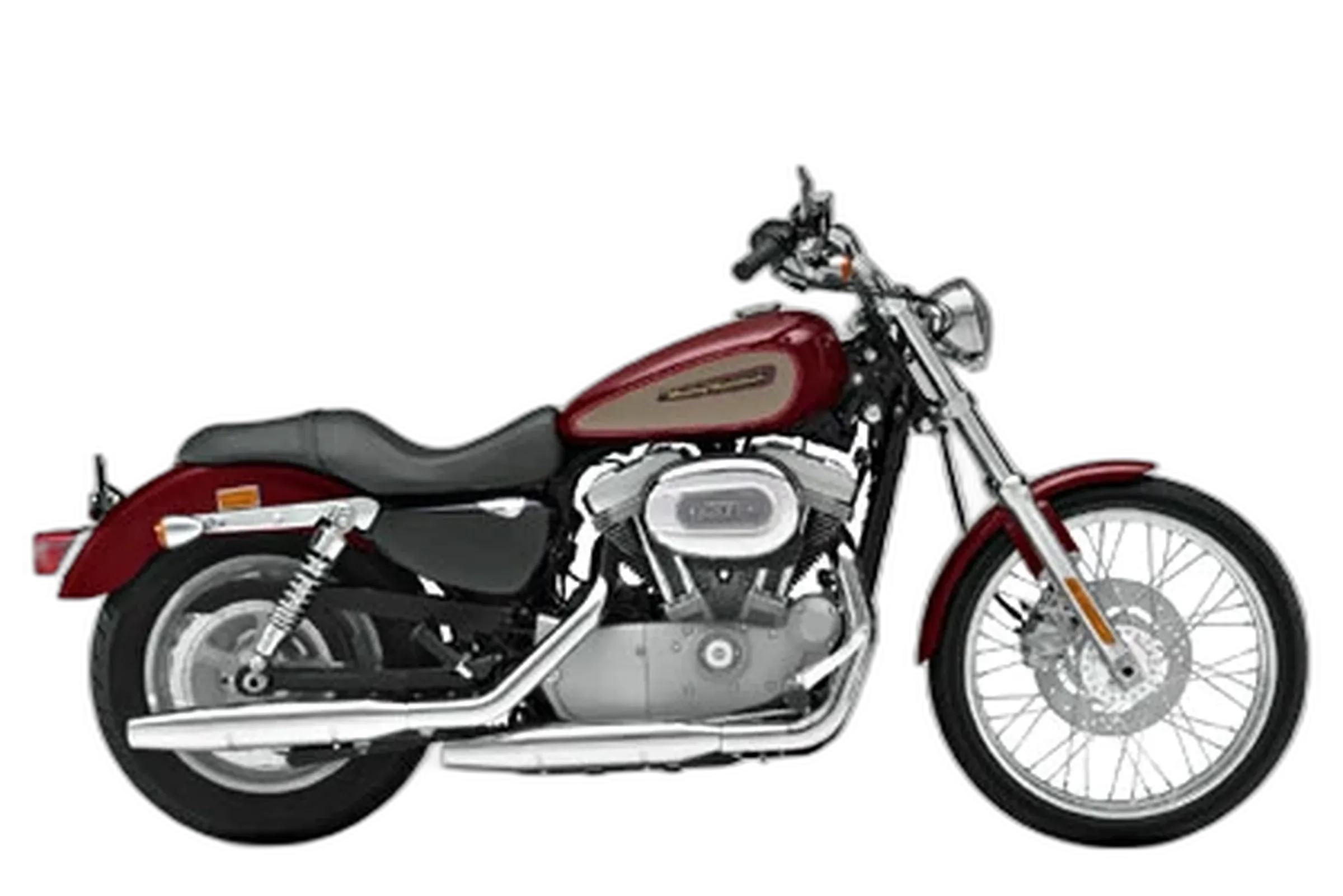

The XL883C Custom is the Sportster built to look the part before it does anything else. A 45° air-cooled V-twin runs 883 cc, makes 53 hp at 6,000 rpm and 52 lb-ft at 3,750 rpm, and sends it rearward through a five-speed box and a belt. What separates the Custom from the rest of the family is geometry: a 21-inch front wheel, pullback bars, forward foot controls and a 60.4-inch wheelbase that stretch the whole machine out long and low. It is the accessible way into this brand, and it never pretends to be anything else.
Ride it the way it was drawn and it makes complete sense. The seat sits at 28.5 inches, your boots are out front, 4.5 gallons ride under your thighs, and the engine does its best work well below the top of the tach. It suits the rider who wants the look, the noise and the identity, and who fully intends to keep changing the bike for years, because parts support for it is close to bottomless. The honest caveat: 553 pounds wet, no ABS, no traction control. You ride inside what the chassis and your own hands give you.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 53 hp (39 kW) @ 6,000 rpm |
|---|---|
| Torque | 52 lb-ft (70 Nm) @ 3,750 rpm |
| Displacement | 883 cc |
| Engine | 45° V-twin |
| Cooling | Air-cooled |
| Gearbox | 5-speed |
| Final drive | Belt |
| Fork | Telescopic |
| Front brake | 292 mm |
| Front tire | 80/90-21 |
| Rear tire | 150/80-16 |
| Wheelbase | 60.4 in (1534 mm) |
| Seat height | 28.5 in (724 mm) |
| Wet weight | 553 lb (251 kg) |
| Fuel capacity | 4.5 gal (17 L) |
Equipment check
Chassis
Thumb the starter and the air-cooled twin drops into an idle you feel in the tank and the pegs before you properly hear it. Pull away and the vibration sorts itself out. It stays present, warm and always talking, without numbing your palms over an hour in the saddle. The riding position is the real story here. Feet out front, the bars swept back into your hands, and a low seat that drops you into the bike instead of perching you on top of it, so shorter riders get both boots flat without thinking about it. At 65 mph the long wheelbase settles in and stays put, wind pressure lands square on your chest, and the belt keeps the driveline quiet enough that the exhaust is most of what you hear.
Regulator/rectifier failure
Some owners report that the charging system component fails, leading to a dead battery or erratic electrical behavior. Replacing the unit typically solves the problem.
Intermittent electrical gremlins
Occasional total power loss or hard starting, sometimes traced to a failed main fuse, a worn ignition switch, or loose/corroded wiring-harness connections.
Corrosion on chrome and metal parts
Exposure to moisture or road salt can cause pitting and rust on exhaust headers, fork legs, and other chrome surfaces, requiring diligent care.
Where this Harley-Davidson Sportster XL 883 C Custom pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Seat height
Forget spec-sheet bragging. Here's who the Sportster XL 883 C Custom is actually built for.
Right badge, right sound, and an aftermarket deep enough to make it unmistakably yours by the next rally. Accept that 883 cc means you set a relaxed pace on the long slab days.
Made for A1A — Florida Atlantic Coast · Black Hills / Sturgis Rally Hub · Daytona Main Street / Bike Week
Small towns and historic routes suit this bike exactly, and 4.5 gallons covers a sensible day. Pack light, because there is no factory luggage to hang your week on.
Made for Acadia National Park · Austin / Handbuilt Motorcycle Show · Blue Ridge Parkway
Straight answer: look elsewhere. Nothing to shelter behind, no cruise control, no luggage, and a feet-forward position that starts asking questions long before the day ends.
Made for Beartooth Highway · Blue Ridge Parkway · Going-to-the-Sun Road
