2005–2017 · Cruiser · Buyer's Guide
Loud, Low and Built to Customize
The XL1200C Custom is the Sportster built around stance. A 45-degree air-cooled V-twin of 1202 cc, good for 67 hp at 5,750 rpm and 70 lb-ft at 3,500 rpm, sits in a rubber-mounted tubular steel frame that lets the engine talk without shaking your hands loose. The Custom hardware does the rest: a 21-inch laced front wheel, pullback bars, a seat 26.6 inches off the ground and 60.4 inches of wheelbase. Five speeds, belt final drive, no rider aids standing between your wrist and the rear tire. A middleweight American cruiser that spends its budget on presence instead of numbers.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 67 hp (50 kW) @ 5,750 rpm |
|---|---|
| Torque | 70 lb-ft (95 Nm) @ 3,500 rpm |
| Displacement | 1202 cc |
| Engine | 45° V-twin |
| Cooling | Air-cooled |
| Gearbox | 5-speed |
| Final drive | Belt |
| Fork | Telescopic |
| Front brake | 292 mm |
| Front tire | 90/90-21 |
| Rear tire | 150/80-16 |
| Wheelbase | 60.4 in (1534 mm) |
| Seat height | 26.6 in (676 mm) |
| Wet weight | 573 lb (260 kg) |
| Fuel capacity | 4.5 gal (17 L) |
| Top speed | 110 mph (177 km/h) |
| Fuel economy | 40 mpg (US) |
Equipment check
Chassis
Connectivity
Hit the starter and the whole bike shrugs on its mounts before settling into a lopey idle you feel through the seat and the pegs. Pull away and it sorts itself out. What reaches you at road speed is a steady mechanical pulse, present enough to feel alive, never coarse enough to numb your palms. The riding position is exactly what the shape promises: bars swept back into your lap, boots out front, weight on your tailbone. At 26.6 inches you get both feet flat at a stoplight, which makes 573 pounds far less intimidating than the number reads. That tall 21-inch front wheel gives the steering a long, deliberate feel you notice in the first mile. Out on open highway it sits calm and straight, and the paint and castings hold up while you stand next to it at the pump.
Two decades of listening adds up. What follows comes from paddock conversations, club-night talk, owners I've stayed in touch with, and the messages riders send me directly. On the XL1200C the pattern is consistent: the engine and the everyday ease win people over, while ride quality wears on them with distance.
Praise starts with the engine. Riders talk about the 1200 Evolution's low-end pull and the character that comes with it. Then comes ease of living with it: one of the lowest seats in the class, which owners say takes the stress out of stoplights and slow-speed work, and power delivery newcomers find manageable without leaving experienced riders bored. Owners also point to how deep the parts catalog runs and how well used prices hold.
Vibration at speed is the complaint raised most often. Owners describe buzz through bars and pegs that becomes fatigue on a long day. Close behind is the rear end: short-travel shocks that pass sharp bumps straight through, which heavier riders and anyone riding two-up notice first. Some owners mention the five-speed's heavy shift action and the mechanical noise alongside it, and a few flag the single front disc for wanting a firm hand.
Valve guide seal failure on early models
Some 2005 models had defective valve guide seals causing excessive oil consumption, blue smoke, and fouled plugs. Replacement with aftermarket seals is a common fix.
Carburetor clogging and stalling
On carbureted models (2005-2006), infrequent riding can lead to gummed fuel, clogged jets, and subsequent stalling, poor idling, and hesitation. Regular use or carb cleaning is advised.
Cracking oil tanks on early models
Some early production 2005 Sportsters experienced cracking oil tanks, attributed to teething issues with the new swingarm design.
Oil mist from air cleaner
Some units exhibit light oil weeping from the air filter housing, particularly after high-speed runs. This is mostly cosmetic but requires monitoring oil levels.
Where this Harley-Davidson Sportster XL 1200C Custom pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Top speed
Seat height
Forget spec-sheet bragging. Here's who the Sportster XL 1200C Custom is actually built for.
This is home turf. The sound, the stance and the parts catalog let you build the identity you came for, though a 4.5-gallon tank means you plan the day around fuel.
Made for A1A — Florida Atlantic Coast · Black Hills / Sturgis Rally Hub · Daytona Main Street / Bike Week
Back roads at 55 to 65 mph suit it, and it looks right parked outside a diner. Keep the days moderate: the tank and the seating position set your limit, not the engine.
Made for Acadia National Park · Austin / Handbuilt Motorcycle Show · Blue Ridge Parkway
Straight answer: this is not your bike. No cruise control, no luggage system and 4.5 gallons make big park-to-park days harder than they need to be.
Made for Beartooth Highway · Blue Ridge Parkway · Going-to-the-Sun Road

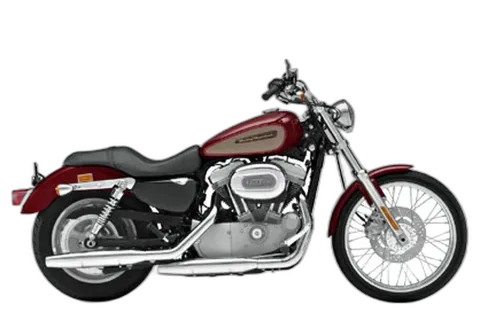

If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this Harley-Davidson Sportster XL 1200C Custom. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
