2009–2010 · Naked Bike · Buyer's Guide
Flat-Track Attitude, Street Legal

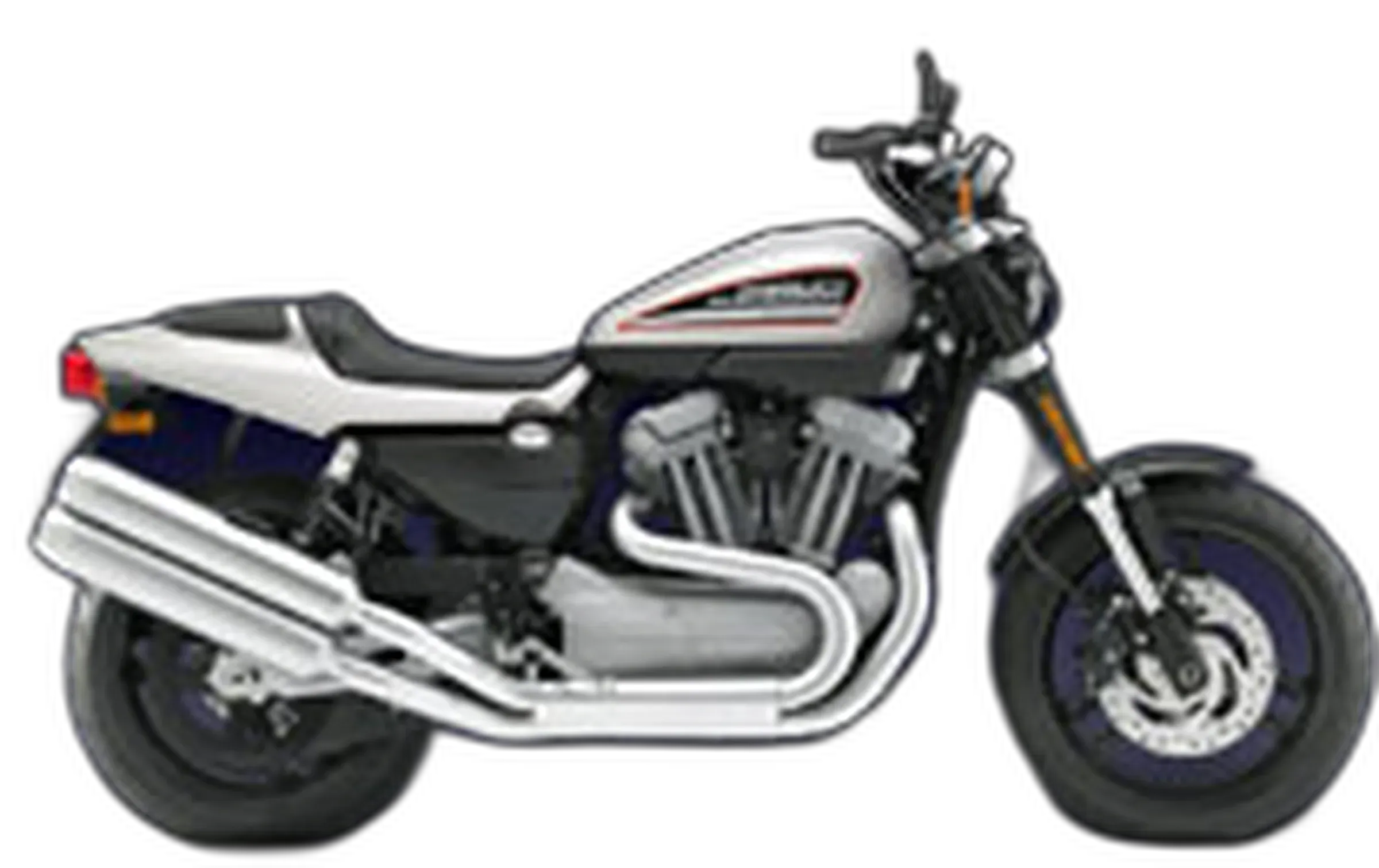

Harley built the XR1200X around one idea: keep the 45-degree V-twin's attitude and give it a chassis that can actually use it. The air-cooled 1202 cc Evolution twin makes 88 hp at 6,000 rpm and 74 lb-ft at 4,000, and most of that torque is already sitting there just off idle. A steel double-cradle frame, an upside-down fork and adjustable suspension at both ends turn the Sportster idea into something you can point at a mountain road. Belt drive, five speeds, a 292 mm front brake, an 18-inch front wheel and a fat 180-section rear. It sells character first and numbers second.
On the road it feels dense and planted rather than light, and the 29.2-inch seat keeps the 580 lb wet weight honest at walking pace. Wide bars and rear-set pegs give you leverage, so it changes direction more willingly than the 60-inch wheelbase suggests. It ages the way a simple air-cooled twin ages: easy to live with, easy to modify, with deep aftermarket support behind it. This one is for the rider who wants a Harley that earns its keep on a back road. The honest caveats are range and equipment. A 3.5-gallon tank is small for a long day, and there is no ABS or traction control here.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 88 hp (66 kW) @ 6,000 rpm |
|---|---|
| Torque | 74 lb-ft (100 Nm) @ 4,000 rpm |
| Displacement | 1202 cc |
| Engine | 45° V-twin |
| Cooling | Air-cooled |
| Gearbox | 5-speed |
| Final drive | Belt |
| Fork | Upside-down (USD) |
| Front brake | 292 mm |
| Front tire | 120/70-18 |
| Rear tire | 180/55-17 |
| Wheelbase | 60.0 in (1525 mm) |
| Seat height | 29.2 in (742 mm) |
| Wet weight | 580 lb (263 kg) |
| Fuel capacity | 3.5 gal (13.2 L) |
Equipment check
Chassis
Excessive oil consumption from new
Some owners report higher-than-expected oil usage during break‑in and beyond, potentially due to rings not fully seating or high-compression leak‑down.
Wheel corrosion
The alloy three-spoke wheels are prone to surface corrosion and peeling paint, particularly on bikes used in wet or coastal areas.
Where this Harley-Davidson Sportster XR 1200X pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Seat height
Forget spec-sheet bragging. Here's who the Sportster XR 1200X is actually built for.
Hill Country loops on a bike people walk over to look at: that fits you exactly. Plan your stops around the 3.5-gallon tank and it works as a proper Saturday machine.
Made for Austin / Texas Hill Country · Twisted Sisters · Austin / Handbuilt Motorcycle Show
It turns better than the weight suggests, and the adjustable suspension rewards you for setting it up properly. It won't chase lighter machinery, but it will teach you smoothness.
Made for Back of the Dragon · Blue Ridge Parkway · Cherohala Skyway
For canyon runs this is a character pick. It pulls hard out of slow corners and feels planted at pace, but 580 lb stays 580 lb when the road really tightens up.
Made for Angeles Crest Highway · Coronado Trail / US 191 · Highway 1 / Big Sur
