2011–2016 · Enduro · Buyer's Guide
Big Motor, Real Control
This is a race enduro with a plate on it. The 510 cc liquid-cooled single puts 58 hp and 36 lb-ft under you, but the number that matters is how the fuel injection meters that torque: precise, not blunt. The power builds wide and steady instead of arriving in one violent stab, so the motor pulls cleanly across far more of the range than the displacement suggests. Wrapped around a chromoly steel frame and premium WP suspension, it comes in lighter than the spec sheet threatens, and it sits at the sharp end of what a plated dual-sport can be.
Ride it and the size sorts itself out on real terrain. Big, physically strong riders get a machine built genuinely around them: enough grunt that a bad line stops mattering, enough chassis to shrug off a hard season. The swingarm looks indestructible, the WP PDS shock and refined frame feel sorted rather than half-finished, and the engine cases are machined to a tighter standard that shows in the overall quality of the motor. The honest catch: on steep, slow descents the mass becomes the limiting factor, and if you are small or light, you will carry displacement you never put to work.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 58 hp (43 kW) |
|---|---|
| Torque | 36 lb-ft (49 Nm) |
| Displacement | 510 cc |
| Engine | Single-cylinder |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front brake | 260 mm |
| Front tire | 90/90-21 |
| Rear tire | 140/80-18 |
| Wheelbase | 58.3 in (1482 mm) |
| Ground clearance | 13.6 in (345 mm) |
| Front travel | 11.8 in (300 mm) |
| Rear travel | 13.2 in (335 mm) |
| Seat height | 38.2 in (970 mm) |
| Fuel capacity | 2.4 gal (9 L) |
| Top speed | 99 mph (160 km/h) |
Equipment check
Chassis
Throw a leg over and the first thing you register is height. At 38.2 inches the seat puts you above the terrain, perched and ready to stand rather than sit. Up on the pegs it feels natural, slim between your knees, and far lighter under you than a 510 cc single has any right to be. The motor thumps with that unmistakable big-single beat, a low mechanical pulse you feel through the bars and pegs as much as you hear it. The WP suspension soaks up square-edged hits without kicking back, and the bike telegraphs clearly what the front tire is doing on loose ground. On a long day, when your legs fade and your timing slips, that buffer of grunt underneath you is what keeps you moving instead of dabbing. It rewards commitment, and it never feels like it is fighting you.
My own 0–100 score for this bike against the class, area by area — the marker on each bar is the class average.
On the move the size never announces itself the way the figures warn it will. It carries less than its motor would lead you to expect, and that lightness shapes how it turns far more than the number on paper does. The chassis feels finished too, sorted through enough small revisions that nothing about it reads as unproven. The one place the mass finally surfaces is slow, steep downhill work. That's where a lighter machine walks away, and where I have to ride more deliberately to keep it tidy.
There's a margin built into this bike that's hard to put a number on but impossible to miss once you're tired. Sit crooked, blow the approach to an obstacle, commit to the wrong line, and more often than not the engine simply sorts it out for you. It doesn't demand a clean, textbook attack to get you through, and that forgiveness is worth a surprising amount when your technique starts coming apart late in a hard section.
My read here comes down to how the bottom end is made. The cases use an updated production process, with tighter tolerances, thinner walls, and a cleaner finish than the class usually bothers with, and that precision carries straight through to the overall sense of quality you get from the motor. It's an easy detail to overlook on paper, but it's the kind of thing I weigh heavily when I judge how carefully an engine was actually put together.
What keeps surprising me is how civil the injection makes all this displacement. Off a closed throttle I can dole the power out in fine increments rather than catching one blunt slug, and nothing explosive waits anywhere in the rev range. It comes on gradually and hangs in a broad, workable band, so picking through slow technical sections never turns into a wrestling match with the motor. For an engine this large, those manners are the real story.
This is a machine with a specific owner in mind. If you're a big, strong rider, the whole package finally lines up in your favor instead of working against you, and that's rarer than it sounds in this class. If you're not, be honest with yourself. A smaller bike from the same family gives up almost nothing on real terrain while asking far less of you when the going turns technical. All that capacity only pays off when your size and your riding genuinely call for it.
Two decades of listening to riders feeds this: threads between owners, talk in the paddock, and the messages and emails from people living with the bike. On the 500 EXC the chatter lines up tighter than most, with strong agreement on how it works underneath you and complaints that stay few and specific.
Riders keep coming back to the WP suspension, which they trust to stay composed over rocks and roots without beating them up. Close behind is how light and quick to turn it feels for its size, with torque on tap from idle that stays manageable. A quieter but steady note: owners like how little it asks of them in the garage. Seat and tank lift off with a couple of screws, leaving the filter, battery, and routine oil changes easy to reach.
The gripes run narrow. Top of the list is the stock seat, thin and firm enough that many owners fit an aftermarket one before a long ride. Some mention vibration building at higher revs, enough to wear on you over a long day. A few note that the street-legal hardware adds a little mass versus the closed-course versions, felt as extra effort in tight single-track.
Wiring connections behind headlight
The wiring harness connectors behind the headlight mask can develop intermittent contact, causing electrical glitches. Cleaning and securing the connectors often resolves the issue.
Clutch slippage
Some owners experience clutch slippage under heavy load, typically due to worn clutch plates. Regular replacement resolves the issue.
Fuel delivery hesitation
Stalling or hesitation during acceleration can occur, often caused by a dirty air filter or clogged fuel injector. Routine maintenance mitigates this problem.
Noisy clutch basket
Some owners report a noticeable rattling or knocking noise from the clutch basket, particularly at idle. This is considered normal by many and does not indicate imminent failure.
Where this KTM 500 EXC pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Seat height
Forget spec-sheet bragging. Here's who the 500 EXC is actually built for.
For technical slickrock, sand, and desert day-trips, this bike is right in the pocket. It is light enough to place precisely and carries the grunt to lug you up a ledge when your chosen line goes wrong.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
It will turn laps and the friendly torque helps, but this is a plated enduro at heart, not a stripped closed-course weapon. Great for training and play days, less so for chasing a fast field.
Made for Carnegie State Vehicular Recreation Area · Fox Raceway at Pala · Glen Helen Raceway
Featherweight and tough enough to make hard backcountry miles easy. The catch is the 2.4-gallon tank, so plan fuel tightly: range, not capability, is what will limit your day.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
If you're cross-shopping the older generation, here's what changed.

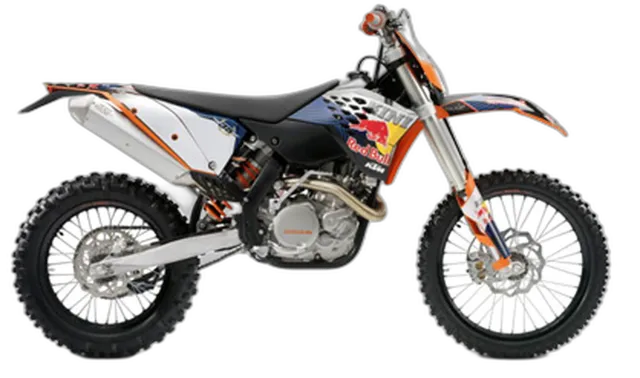

Previous generation · 2010
Clean-Sheet Single, Built to Corner

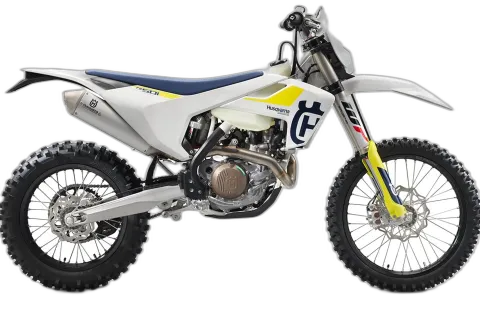

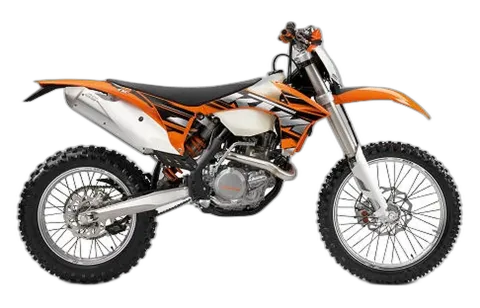

Compare to the previous model →If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this KTM 500 EXC. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
