2020–2023 · Enduro · Buyer's Guide
Two-Stroke Precision, 222 Pounds

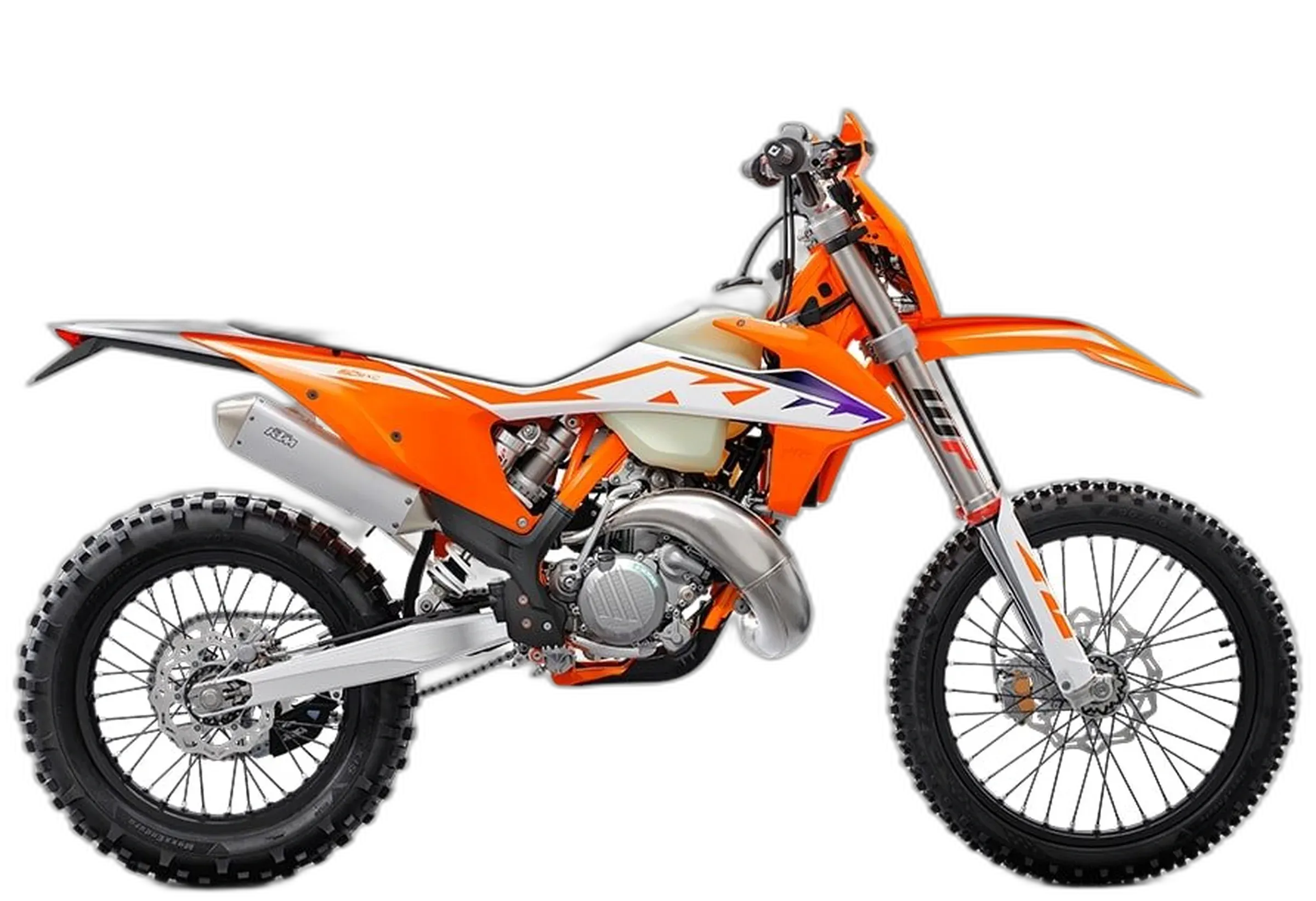

The 150 EXC TPI runs a liquid-cooled 144 cc two-stroke single with transfer port injection, so there is no carburetor to fuss over and no sudden hit when the revs come up. Power lands at 36 hp with 20 lb-ft behind it, and the delivery is long and clean rather than peaky. Six speeds, chain drive, a fully adjustable upside-down fork and a matching shock, 21-inch front and 18-inch rear. On paper it sits between the small-bore class and the quarter-liter machines. In the terrain it pulls like the bigger bike and weighs like the smaller one.
What that buys you is traction. It hooks up where a peakier engine would spin or stall, and it forgives a gear that is one too tall. With 11.8 in of front travel, 12.2 in at the rear, 14.6 in of ground clearance and a 37.8 in seat, this is serious off-road hardware, not a softened trail toy. The honest caveat sits on the ownership side. Complete engine failures at 10 to 20 hours have been reported on this spec and KTM has issued no recall for it, while TPI sensor faults can cut the engine without warning. Buy on service history, not on looks.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 36 hp (27 kW) |
|---|---|
| Torque | 20 lb-ft (27 Nm) |
| Displacement | 144 cc |
| Engine | Single-cylinder |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front tire | 90/90-21 |
| Rear tire | 120/90-18 |
| Ground clearance | 14.6 in (370 mm) |
| Front travel | 11.8 in (300 mm) |
| Rear travel | 12.2 in (310 mm) |
| Seat height | 37.8 in (960 mm) |
| Fuel capacity | 2.4 gal (9 L) |
Equipment check
Chassis
Premature engine failure at low hours
Some owners report complete engine failure (loss of compression) at around 10-20 hours, possibly due to oil injection system malfunctions or cylinder washing. KTM has not issued a recall for this specific issue.
Fuel injection sensor failures
Sensors in the TPI system can fail, leading to erratic running or sudden engine cut-out. Usually requires dealer diagnosis and replacement.
Clutch slippage under load
Clutch can slip when ridden hard, especially in higher gears. Often due to premature wear of clutch plates or incorrect adjustment.
Electrical starting issues
Intermittent starting problems reported, often traced to battery performance or wiring harness faults. The starter may spin without engaging.
Spongy brake feel
Front and rear brakes can feel spongy, requiring frequent bleeding. Air ingress or pad glazing are common culprits.
Where this KTM 150 EXC TPI pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Seat height
Forget spec-sheet bragging. Here's who the 150 EXC TPI is actually built for.
Built for exactly this. Light, clean on power and tractable, it finds grip on slickrock and sand where a punchier engine just spins. Day rides suit it best; the 2.4 gal tank keeps you honest.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
It holds a track line well and the suspension is adjustable enough to set up for jumps, but the engine is tuned for terrain: long pull, no explosive hit. Great for moto days, not a race weapon.
Made for Carnegie State Vehicular Recreation Area · Fox Raceway at Pala · Glen Helen Raceway
Straight answer: no. A 2.4 gal tank, a 37.8 in seat and nowhere to mount luggage make multi-day routes hard work. Keep it as the technical day bike next to your route machine.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route
If you're cross-shopping the older generation, here's what changed.

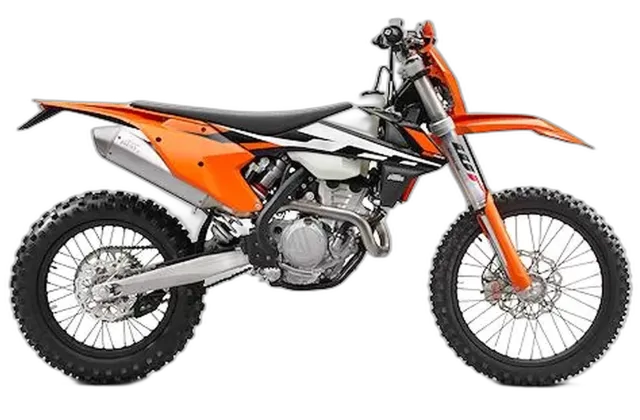

Previous generation · 2017–2019
Featherweight With Full Capability
