2025–2026 · Cruiser · Buyer's Guide

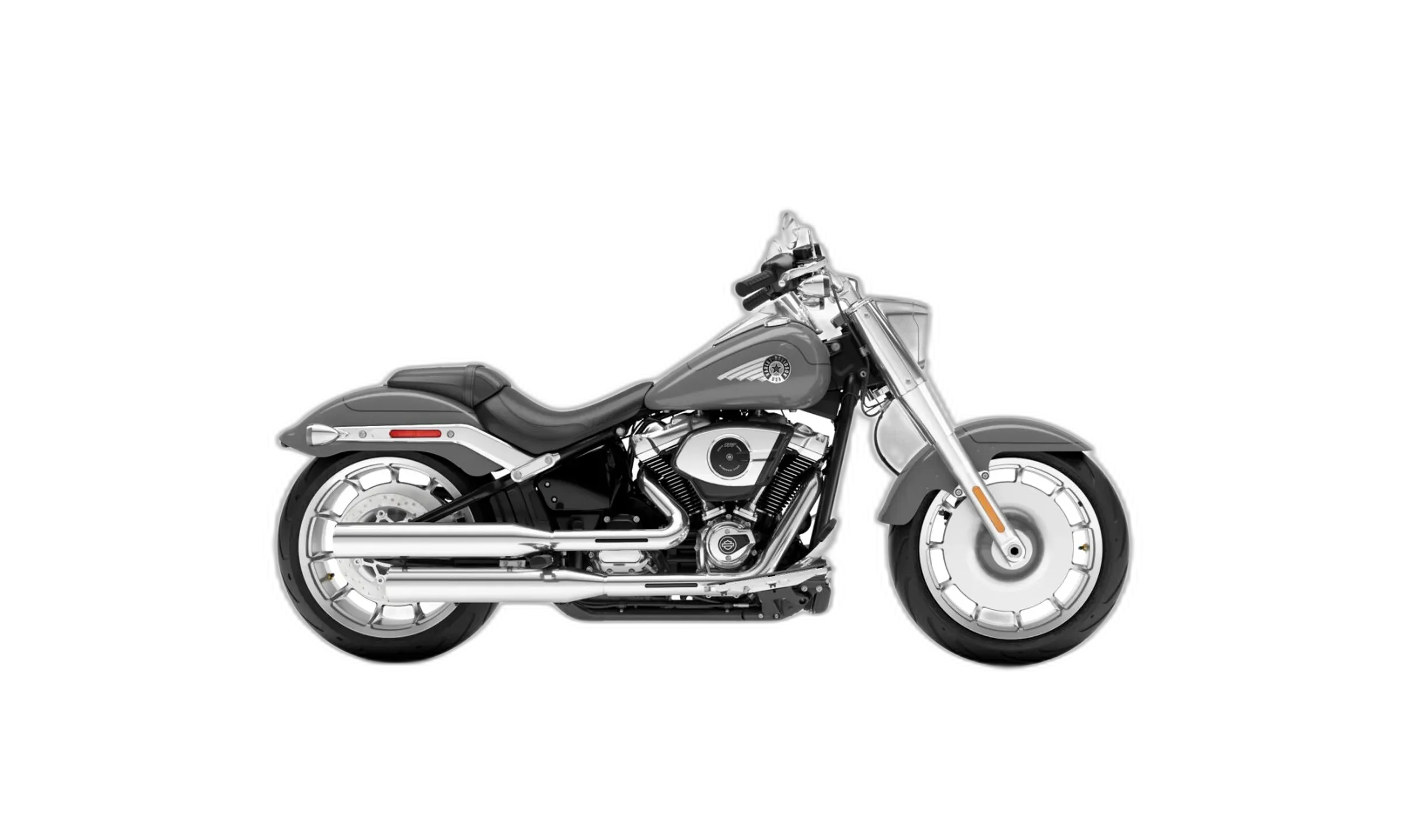

Fat Boy 117 (FLFB-MY2025)
Maximum Style, Maximum Torque
The Machine's Character
You can spot a Fat Boy from a block away, and this generation keeps the formula intact: solid Lakester wheels, a massive 7-inch LED headlamp, a 240/40-18 rear tire and a steel-tube Softail frame stretched to a 65.0 in (1651 mm) wheelbase. At its heart sits the air/oil-cooled Milwaukee-Eight 117, a 1923 cc 45° V-twin making 103 hp at 4,800 rpm and 126 lb-ft at 3,000 rpm. Harley-Davidson says it delivers immense torque and strong low-end grunt. The spec sheet agrees: peak torque arrives at just 3,000 rpm. Cornering ABS, traction control and ride modes come standard. Iconic look, modern safety net.
On paper, the brief is clear. A 25.9 in (658 mm) seat, 694 lb (315 kg) wet and that long wheelbase point to the boulevard and the open two-lane, not tight city traffic. That's what a cruiser is supposed to be: lots of metal, low and long, with real presence. Cruise control, TPMS and a USB port suggest a bike meant for covering real miles, and the 5.0 gal (18.9 L) tank fits that picture. The fork is non-adjustable, but the rear shock takes preload, so you can set the rear for what you're carrying. It's built for the rider who buys with the heart and still wants proper safety hardware. Muscle first!
Hard Numbers
Spec sheets don't ride bikes, but they set the baseline.
Show full specs & equipment Hide specs & equipment
| Power | 103 hp (77 kW) @ 4,800 rpm |
|---|---|
| Torque | 126 lb-ft (171 Nm) @ 3,000 rpm |
| Displacement | 1923 cc |
| Engine | 45° V-twin |
| Cooling | Air/oil-cooled |
| Gearbox | 6-speed |
| Final drive | Belt |
| Fork | Telescopic |
| Front brake | 300 mm |
| Front tire | 160/60-18 |
| Rear tire | 240/40-18 |
| Wheelbase | 65.0 in (1651 mm) |
| Seat height | 25.9 in (658 mm) |
| Wet weight | 694 lb (315 kg) |
| Fuel capacity | 5.0 gal (18.9 L) |
Equipment check
Chassis
- Rear Suspension Adjustable Standard
- Cruise Control Standard
Lighting
- LED Headlight Standard
Safety
- ABS Standard
Known issues
-
Airbox backplate breather port may be blocked (recall, NHTSA Recall 26V-270)
On certain 2025-2026 FLFB models, the airbox backplate breather port may be blocked, causing pressure build-up in the crankcase. When the dipstick is removed, oil can be ejected, increasing injury risk. Recalled for inspection and repair. (NHTSA recall, 0.4% affected)
The Numbers Compared
Compare the technical specifications of the Harley-Davidson Fat Boy 117 with other bikes in its class.
Technical specs vs. the class average
Head-to-head: Harley-Davidson Fat Boy 117 vs. its rivals
Power
Torque
Displacement
Wet weight
Seat height
What's new versus the previous generation
If you're cross-shopping the older generation, here's what changed.
Previous generation · 2018–2024

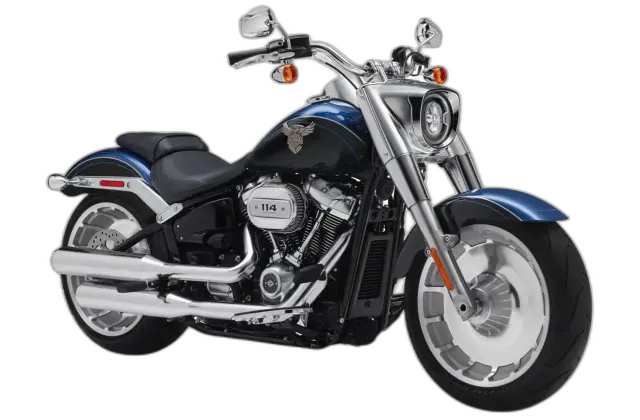

Harley-Davidson Softail Fat Boy 114 FLFBS (MY2018)
Solid Discs, Maximum Attitude
Compare to the previous model →Alternatives to the Harley-Davidson Fat Boy 117
If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this Harley-Davidson Fat Boy 117. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
