1999–2005 · Cruiser · Buyer's Guide
The Dyna With A Spine

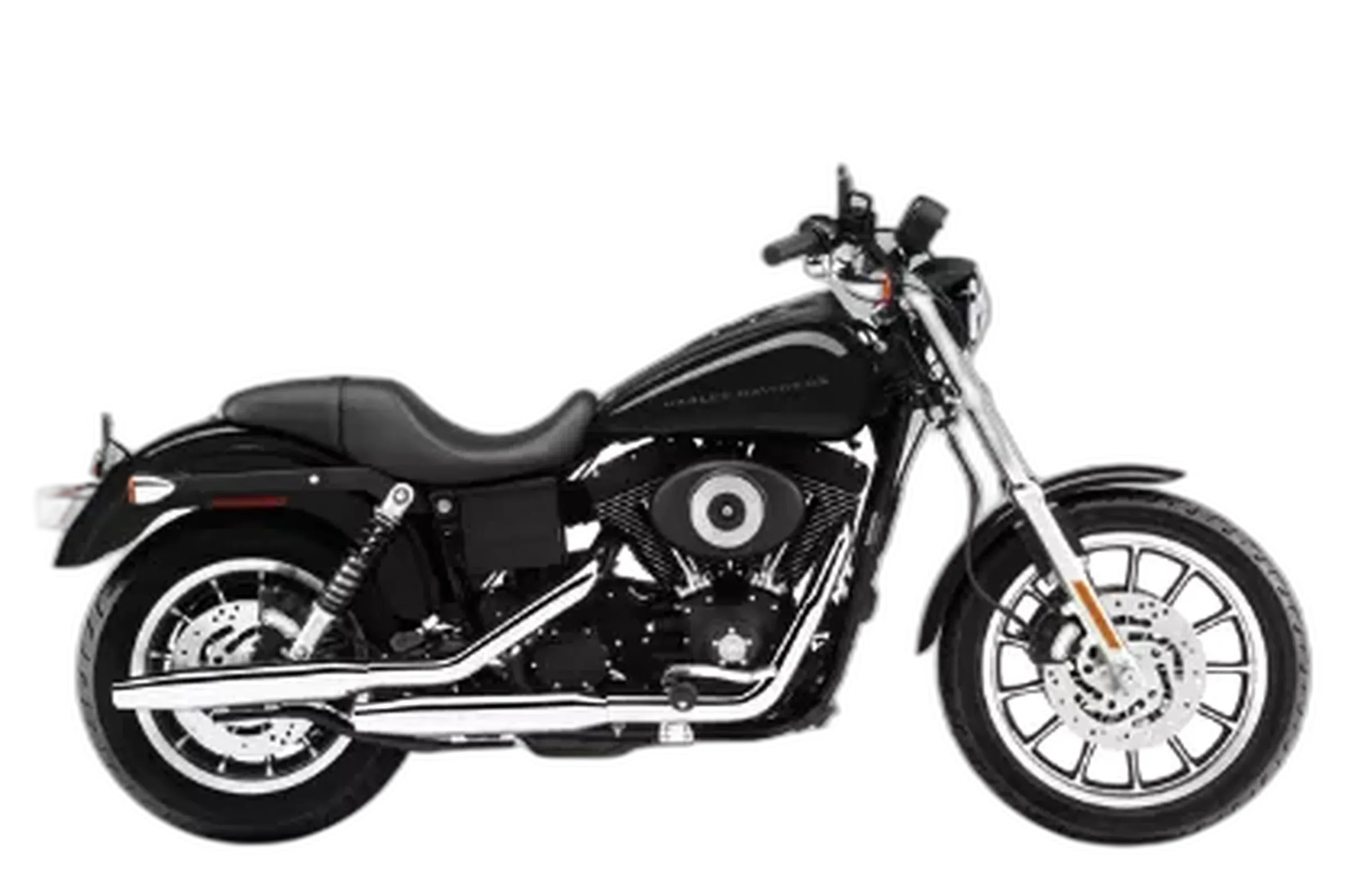

The FXDX is the Dyna built for riders who actually want to get somewhere. It runs the 1449 cc air-cooled 45° V-twin, rubber-mounted in the frame, making 67 hp, with 81 lb-ft arriving at 3,500 rpm through a 5-speed box and a belt. The Sport part is real hardware, not a sticker: adjustable suspension at both ends, twin external shocks, flat drag bars, a low sculpted seat, and a proper tachometer. That combination makes it the most roadster-leaning reading of the Dyna platform, a big American twin set up to be ridden on a back road rather than posed at a curb.
On the road it is exactly what the numbers say: 650 lb of metal on a 63.8 in wheelbase, long and low, with the mass sitting far enough down that it never feels top-heavy at walking pace. It ages well. The finish holds up and running costs stay modest for a big twin. Buy it if you want Harley character with a sharper edge and you don't mind turning your own wrenches. The honest caveat: no ABS, no traction control, no electronics of any kind, and a Twin Cam that punishes neglected service items.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 67 hp (50 kW) |
|---|---|
| Torque | 81 lb-ft (110 Nm) @ 3,500 rpm |
| Displacement | 1449 cc |
| Engine | 45° V-twin |
| Cooling | Air-cooled |
| Gearbox | 5-speed |
| Final drive | Belt |
| Fork | Telescopic |
| Front brake | 292 mm |
| Front tire | 100/90-19 |
| Rear tire | 150/80-16 |
| Wheelbase | 63.8 in (1621 mm) |
| Seat height | 27.1 in (689 mm) |
| Wet weight | 650 lb (295 kg) |
| Fuel capacity | 4.8 gal (18.2 L) |
| Top speed | 115 mph (185 km/h) |
Equipment check
Chassis
This comes from years of listening: paddock conversations, owners talking at club nights, and the emails and messages riders send me about their own bikes. On the FXDX the pattern is consistent. Owners love how hard it lets them ride and how long it keeps running. Their complaints cluster around the limits of that sporty chassis and one seat.
What riders praise most is confidence in the bends. Owners say the FXDX corners with far more composure than its weight suggests, and that it tempts them to ride harder than they planned. The same riders are quick to say where that stops. Pegs and headers touch down earlier than on sportier standards. Quick direction changes take real muscle. Some owners also find the short-travel rear shocks harsh over sharp bumps, especially mid-corner when they push.
Durability comes up just as often. Owners describe the Twin Cam and the Dyna chassis as tough, and many report trouble-free miles well into six figures. They also talk about an engine that pulls strongly from idle all the way up the rev range. The recurring gripe is the seat. The slim seat looks right but gets painful after about an hour, and plenty of owners have swapped it for a touring seat.
In-tank fuel line chafing (EFI models)
On fuel-injected models (2004–2005 FXDXI), the high‑pressure fuel line inside the tank can rub against the tank wall, eventually wearing a pinhole that causes a fuel leak and strong fuel smell.
Cam chain tensioner premature wear
The spring-loaded tensioner shoes on 1999–2005 Twin Cam 88 engines can wear past the service limit by 30,000–40,000 miles, potentially causing chain slap and engine damage if not replaced. Upgrading to hydraulic tensioners or gear-driven cams eliminates the problem.
Front engine‑mount isolator sag
The rubber front engine mount can compress over time, allowing the engine to settle and causing excess vibration, misalignment, and even interference with the frame.
Fuel level sending unit failure
The in‑tank fuel level sensor can fail, giving inaccurate readings on the dash gauge; replacement of the sender assembly resolves the issue.
Shifter shaft seal leak
The seal where the gear‑shift shaft enters the transmission case may start weeping oil; a simple seal replacement fixes the leak, but if ignored it can lead to low transmission fluid.
Where this Harley-Davidson Dyna Super Glide Sport FXDX pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Top speed
Seat height
Forget spec-sheet bragging. Here's who the Dyna Super Glide Sport FXDX is actually built for.
This is your bike with a sharper edge. The sound, the stance, and the brand story stay fully intact, and it will hold a real pace on the run out to Sturgis instead of just looking good parked on Main Street.
Made for Black Hills / Sturgis Rally Hub · A1A — Florida Atlantic Coast · Daytona Main Street / Bike Week
Right rhythm for slow routes and old towns: enough character to keep the miles interesting, low running costs, and a shape that fits the scenery. Pack light, because there is no factory luggage.
Made for Acadia National Park · Austin / Handbuilt Motorcycle Show · Blue Ridge Parkway
Honest answer: this one asks a lot of you. No windscreen, no cruise control, no luggage, and a 4.8 gal tank. It will cross the country, but you will feel every mile of it.
Made for Beartooth Highway · Blue Ridge Parkway · Going-to-the-Sun Road
If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
