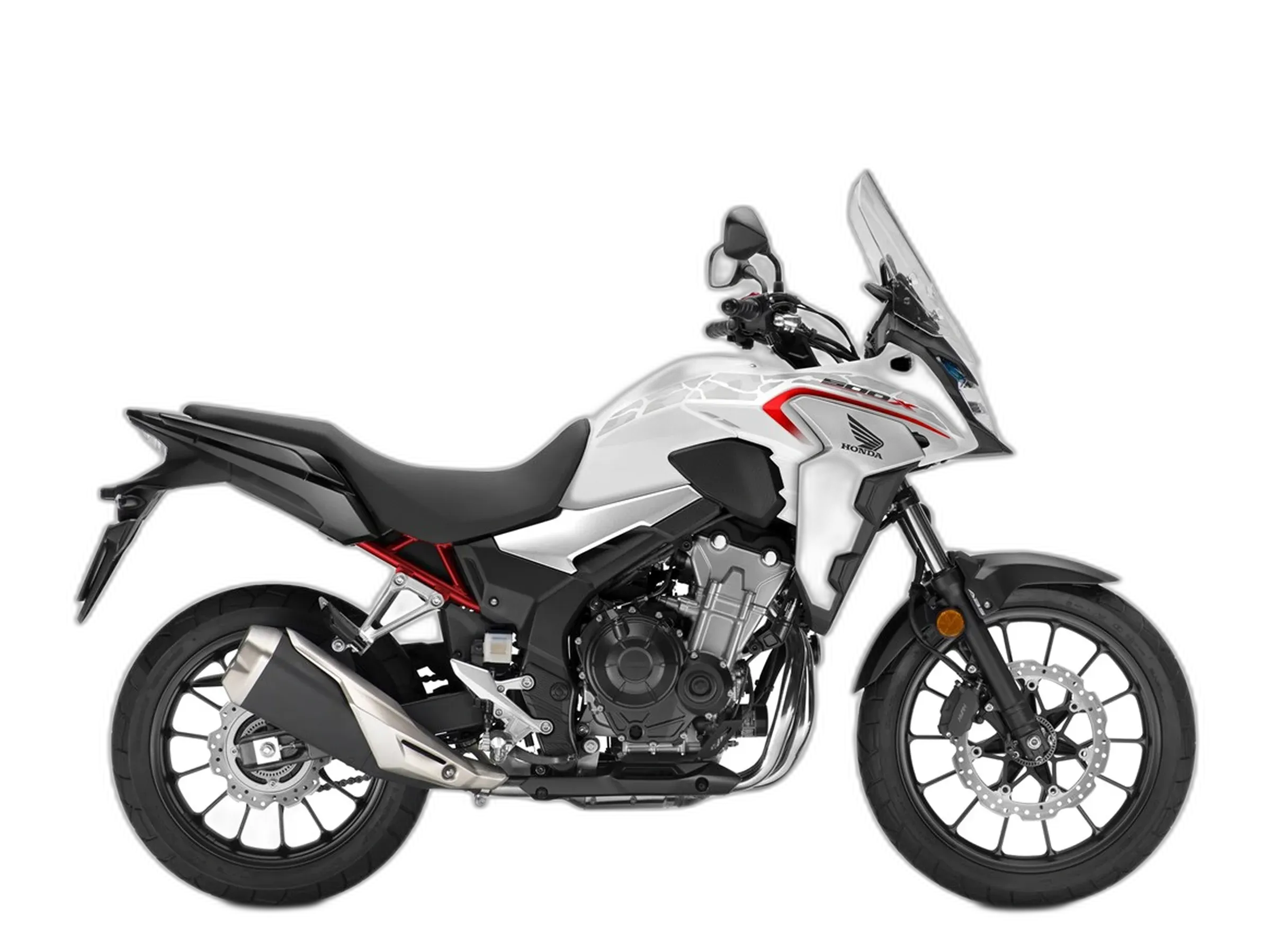

Honda CB500X (PC 64) — Adventure
Honda Press

2019–2021 · Adventure · Buyer's Guide

CB500X (PC 64)

The Reliable First Adventure

The Machine's Character

The CB500X reads simple on paper and turns out to be far more bike than the numbers promise. The 471 cc parallel twin makes 48 hp and 32 lb-ft, and Honda spread that torque wide enough that you rarely think about where you are in the rev range. A 19-inch front wheel, Showa suspension with 5.9 in (150 mm) of travel up front, and 7.1 in (180 mm) of ground clearance move it out of the tall-commuter bracket and into genuine light adventure territory. The rider aids stay deliberately lean: ABS, a slipper clutch, adjustable suspension at both ends. Nothing else to fiddle with, nothing else to break.

Ride it and the appeal is obvious. It goes where you point it with almost no effort, holds a steady 70 mph without weaving, and returns 69 mpg, so the 4.6 gal (17.5 L) tank turns into real touring range. Long-term, this is the sort of Honda that just keeps working; the aftermarket support for luggage and protection is deep enough to build it into whatever you need. The caveat is honest: 48 hp is 48 hp. Loaded two-up over a mountain pass you will be planning your overtakes, and the 32.7 in (830 mm) seat is tall for shorter riders.

Hard Numbers

Spec sheets don't ride bikes, but they set the baseline.

Show full specs & equipment Hide specs & equipment
Key specifications
Power 48 hp (35 kW) @ 8,500 rpm
Torque 32 lb-ft (43 Nm) @ 7,000 rpm
Displacement 471 cc
Engine Parallel twin
Cooling Liquid-cooled
Gearbox 6-speed
Final drive Chain
Fork Telescopic
Front tire 110/80-19
Rear tire 160/60-17
Ground clearance 7.1 in (180 mm)
Front travel 5.9 in (150 mm)
Rear travel 5.3 in (135 mm)
Seat height 32.7 in (830 mm)
Wet weight 434 lb (197 kg)
Fuel capacity 4.6 gal (17.5 L)
Top speed 112 mph (180 km/h)
Fuel economy 69 mpg (US)

Equipment check

Chassis

  • Front Suspension Adjustable Standard
  • Rear Suspension Adjustable Standard

Comfort

  • Heated Grips Optional

Drivetrain

  • Slipper Clutch Standard

Safety

  • ABS Standard
Aerial drone view of Palomar Divide Road winding through chaparral-covered mountain ridges in San Diego County. Multiple S-curve sections descend through sparse vegetation with distant valley views visible in the haze. Gravel and packed-earth surface.

Known issues

  • ABS modulator brake fluid leak (recall)

    brakes rare Recall

    Excessive grease in the ABS modulator can collect debris, which may lodge in the check valve and cause a brake fluid leak, reducing braking performance.

  • Water pump / coolant leak

    cooling occasional

    Some bikes experience a slow coolant leak from the water pump starting around 7,500 mi (12,000 km). In many cases, the leak is minor and may self-resolve, but seal or pump replacement can be required.

  • Fork leg corrosion

    suspension occasional

    Some owners report the fork stanchions developing corrosion, particularly when ridden in wet conditions or if not cleaned regularly.

The Numbers Compared

Compare the technical specifications of the Honda CB500X with other bikes in its class.

Head-to-head: Honda CB500X vs. its rivals

What's new versus the previous generation

If you're cross-shopping the older generation, here's what changed.

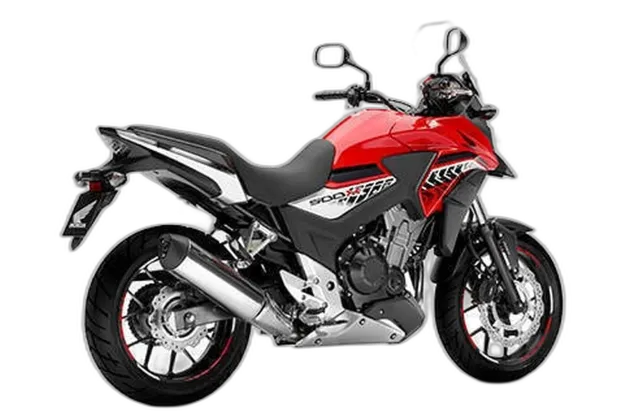

Honda CB500X (PC 59)

Previous generation · 2017–2018

Honda CB500X (PC 59)

Easy Miles, Penny Pincher

Compare to the previous model →
