Honda CB500X (PC 59) — Adventure
Honda Press

2017–2018 · Adventure · Buyer's Guide

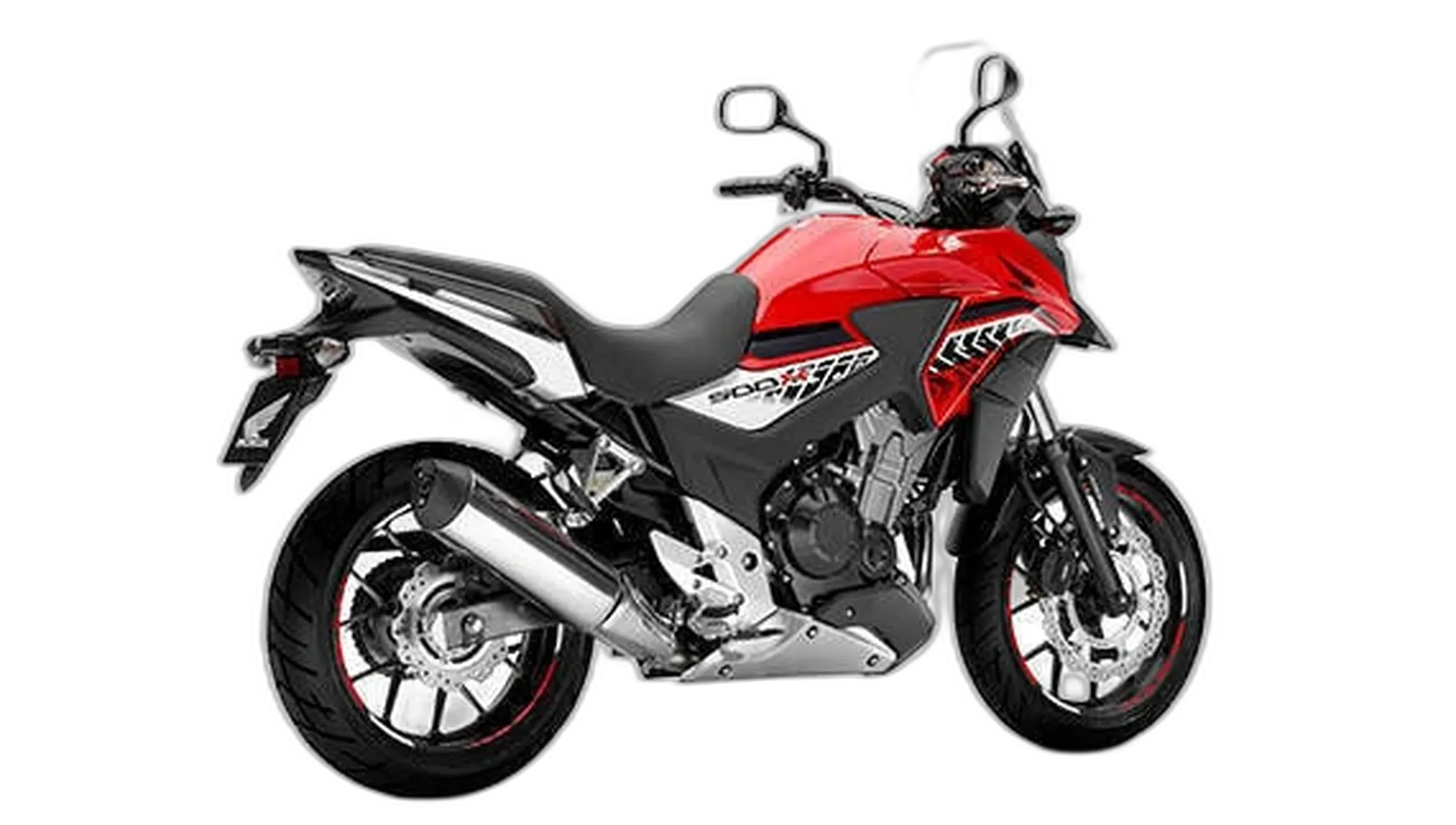

CB500X (PC 59)

Easy Miles, Penny Pincher

The Machine's Character

Honda built this one around a 471 cc liquid-cooled parallel twin making 48 hp and 32 lb-ft, then wrapped it in adventure clothing. Look past the tall screen and the upright stance and you find a road bike underneath: 17-inch wheels at both ends, 5.5 inches of fork travel, a 55.9-inch wheelbase. What it does have is a 4.6-gallon tank, 69 mpg, ABS, an LED headlight, and preload adjustment front and rear. That combination lands it in a narrow but genuinely useful slot, a real distance machine that costs almost nothing to feed.

It ages the way you hope a Honda ages. This engine simply runs, running costs stay low, and the aftermarket will sell you almost anything you want to bolt on. The 31.8-inch seat and 432 lb wet weight keep it manageable at gas stops and in traffic, which matters more on a long trip than any spec sheet suggests. The honest caveat is capacity. With 48 hp, a passenger, and full luggage, long interstate grades ask everything the twin has. And the suspension travel means graded dirt roads, not backcountry.

Hard Numbers

Spec sheets don't ride bikes, but they set the baseline.

Show full specs & equipment Hide specs & equipment
Key specifications
Power 48 hp (35 kW)
Torque 32 lb-ft (43 Nm)
Displacement 471 cc
Engine Parallel twin
Cooling Liquid-cooled
Gearbox 6-speed
Final drive Chain
Fork Telescopic
Front brake 320 mm
Front tire 120/70-17
Rear tire 160/60-17
Wheelbase 55.9 in (1420 mm)
Ground clearance 6.7 in (170 mm)
Front travel 5.5 in (140 mm)
Rear travel 4.7 in (119 mm)
Seat height 31.8 in (807 mm)
Wet weight 432 lb (196 kg)
Fuel capacity 4.6 gal (17.4 L)
Fuel economy 69 mpg (US)

Equipment check

Chassis

  • Front Suspension Adjustable Standard
  • Rear Suspension Adjustable Standard

Comfort

  • Heated Grips Optional
  • Adjustable Windscreen Standard
  • Luggage System Optional

Lighting

  • LED Headlight Standard

Safety

  • ABS Standard
Aerial drone view of Palomar Divide Road winding through chaparral-covered mountain ridges in San Diego County. Multiple S-curve sections descend through sparse vegetation with distant valley views visible in the haze. Gravel and packed-earth surface.

Known issues

  • Engine mounting bolt failure

    chassis rare

    At around 30,000 mi (48,000 km), the right engine mounting bolt can snap, causing hand-numbing vibration. Bolts need extraction and replacement.

  • Water pump seal leak

    engine occasional

    Some owners report coolant weeping from the water pump seal, often starting around 6,200–7,500 mi (10,000–12,000 km). Leak is usually minor and may self-seal, but seal replacement is sometimes needed.

The Numbers Compared

Compare the technical specifications of the Honda CB500X with other bikes in its class.

Head-to-head: Honda CB500X vs. its rivals

What's new versus the previous generation

If you're cross-shopping the older generation, here's what changed.

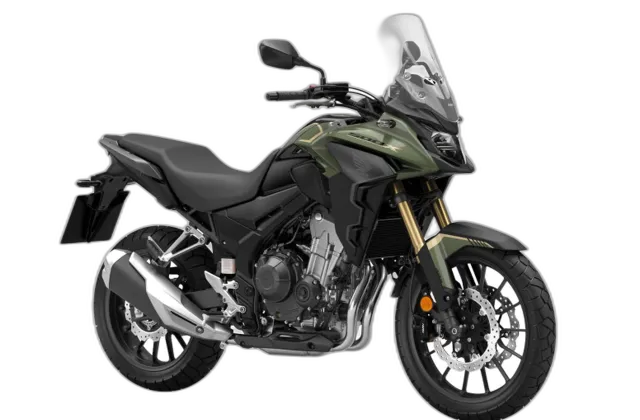

Honda CB500X (PC 46)

Previous generation · 2013–2016

Honda CB500X (PC 46)

Easy Miles, Zero Drama

Compare to the previous model →

Alternatives to the Honda CB500X

If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.

Any price note compares both bikes at the same age — the youngest age both have on the used market — against this Honda CB500X. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
