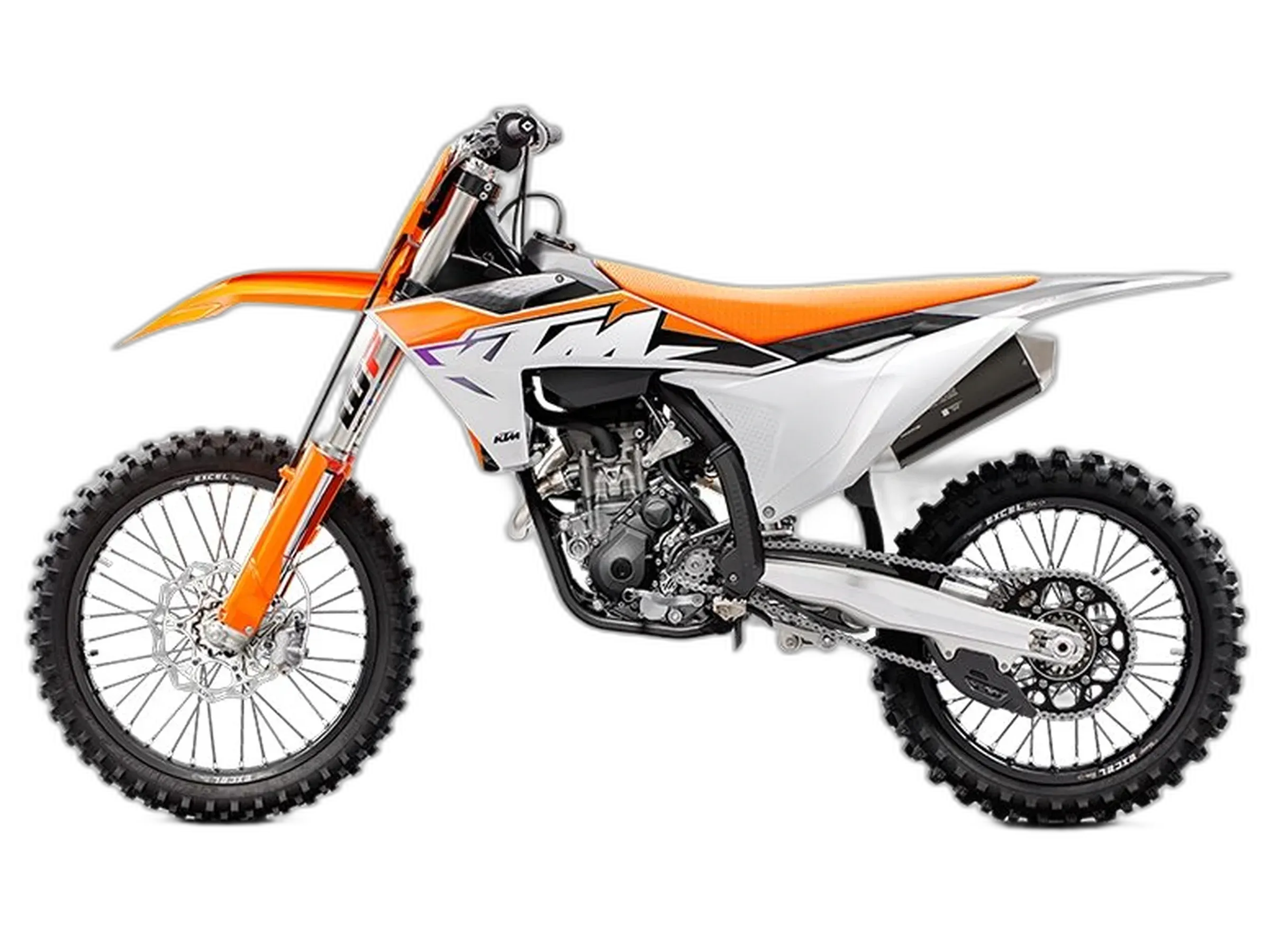

2023–2025 · Motocross · Buyer's Guide
Top-End Or Go Home
The 250 SX-F is a pure race bike built around one idea: revs. Its 250 cc single makes 47 hp at 13,700 rpm and 19 lb-ft at 8,900 rpm, and the strongest pull lives above 9,500 rpm. Fueling is clean and immediate, so the motor hooks up the moment you crack the throttle. Around it sits a steel frame with adjustable WP XACT suspension, an air fork up front, and Brembo brakes. The electronics are race tools: two engine maps, traction control, launch control and a quickshifter for upshifts. The clutch is the same unit the 350 runs, so it takes abuse. This is KTM at full attack.
It only pays you back if you keep it in its powerband. Hit that window and it's a weapon; miss it and you're not getting what the bike has. In my testing the 450 turned out faster in the hands of a less experienced rider for that reason. So this is a racer's bike, and if you're still building track time, the bigger one may serve you better. It's built to last: the plain-bearing con-rod setup ran a full factory racing season before production, and the radiators use a tough aluminum alloy. Check the linkage bell crank for bearing play and watch the fuel pump wiring. Tough school!
Spec sheets don't ride bikes, but they set the baseline.
| Power | 47 hp (35 kW) @ 13,700 rpm |
|---|---|
| Torque | 19 lb-ft (26 Nm) @ 8,900 rpm |
| Displacement | 250 cc |
| Engine | Single-cylinder |
| Cooling | Liquid-cooled |
| Gearbox | 5-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front brake | 260 mm |
| Front tire | 80/100-21 |
| Rear tire | 110/90-19 |
| Ground clearance | 13.5 in (343 mm) |
| Front travel | 12.2 in (310 mm) |
| Rear travel | 11.8 in (300 mm) |
| Seat height | 37.7 in (958 mm) |
| Fuel capacity | 1.9 gal (7.2 L) |
Equipment check
Chassis
Drivetrain
Safety
Thumb the button and it fires. There's no kickstarter on this bike, not even as an option, and the electric start handles everything. The seat sits 37.7 in (958 mm) off the ground, so you climb up onto it, and then you're in that familiar KTM rider triangle: a comfortable attack position. On the move it feels light under you and the whole bike reads as one solid piece through bars and pegs. Wind the single out and it screams. What surprised me is how calm it stays in your hands while it does: the counterbalancer takes the buzz out of the top of the rev range, and on a motor that spins this hard that matters over a full moto. Upshifts go through on the quickshifter without rolling off. Back in the pits, the fuel filter is easy to get at. Small things add up!
My own 0–100 score for this bike against the class, area by area — the marker on each bar is the class average.
Here's the catch, and I'll say it plainly: this bike asks for a skilled rider. Power isn't what's missing. You have to keep the motor spinning where it makes its drive, lap after lap, and that takes experience. For a racer, that's the whole point. If you aren't there yet, expect a 450 to be the easier bike to go fast on for now. No shortcuts here.
The feel has a reason. KTM beefed up the swingarm with a larger axle and reworked the frame at the steering head for more torsional stiffness. What I get on track is a chassis that stays defined when I lean on it. It feels completely premium to me. Top-shelf stuff!
The brakes gave me nothing to complain about, and that's rare. Go in as late and as hard as you dare, and they do their job without any drama. When I ride other bikes in this class, this is the setup I measure them against. Simple as that.
KTM didn't rush this one, and I respect that. A new plain bearing at the bottom end pushes the con-rod service interval out significantly, so you go longer before that part of the motor needs attention. The radiators got the same kind of thinking: they survive a crash better than the previous units did. On a bike that regularly ends up in the dirt, that counts. Sensible engineering!
The injection is the real standout of this motor for me: the response at the throttle is exactly what my right hand asks for, with nothing to ride around. The other change I like is the clutch. It now packages more compactly while handling more punishment, which is a rare combination. More strength in less space: good upgrade!
I have one comfort note from my test, and it's a good one. KTM added a counterbalancer to this engine to minimize vibrations, and you notice the difference. I felt it most with the revs way up, which is exactly where a motor like this one would otherwise wear on you. Welcome addition!
Leaving the kickstarter off entirely keeps the weight down, and I didn't miss it for a second. The change I appreciate more is one you only notice with a wrench in your hand: getting to the fuel filter is no longer an ordeal. Between motos you're working on the bike anyway, and you want that job to be simple. Smart detail!
Needle bearings migrating from linkage bell crank
New-generation KTM/Husqvarna models may have needle bearings walk out of the inside of the linkage's bell crank, causing play and affecting rear suspension performance.
Fuel pump wiring issue causing bogging or no-start
Some owners report that the fuel pump fails to prime or the bike bogs/sputters, possibly due to a wiring fault. Replacement of the fuel pump or wiring harness may be required.
Where this KTM 250 SX-F pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Seat height
Forget spec-sheet bragging. Here's who the 250 SX-F is actually built for.
This is your bike if you race and can keep a 250 in its powerband all moto long. Two maps, launch control and benchmark brakes: it's built for the gate. Still building track time? Look at the 450 first.
Made for Carnegie State Vehicular Recreation Area · Fox Raceway at Pala · Glen Helen Raceway
Suspension and 13.5 in of clearance will handle the terrain, but this is a closed-course racer with a 1.9 gal tank and a motor that wants revs. Fine for short, hard sessions. Wrong for long routes.
Made for Bar M / Kane Creek · Imperial Sand Dunes · Johnson Valley OHV Area
If you're cross-shopping the older generation, here's what changed.

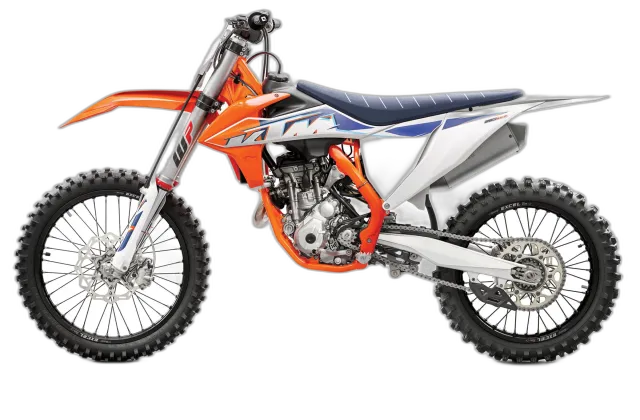

Previous generation · 2019–2022
If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this KTM 250 SX-F. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.

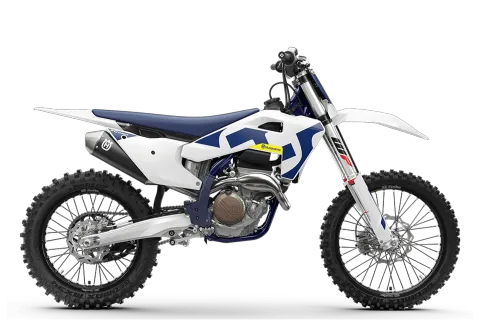

Competitor · 2023–2025
MX DNA, Enduro Ready
About the same used price as this bike at 3 yr
Competitor · 2021–2024
Built For The Box
Roughly $800 pricier used than this bike at 3 yr
Same Platform · 2023
~$2,000 pricier used than this bike at 1 yr
