2002–2009 · Cruiser · Buyer's Guide
120 Pound-Feet Of Presence

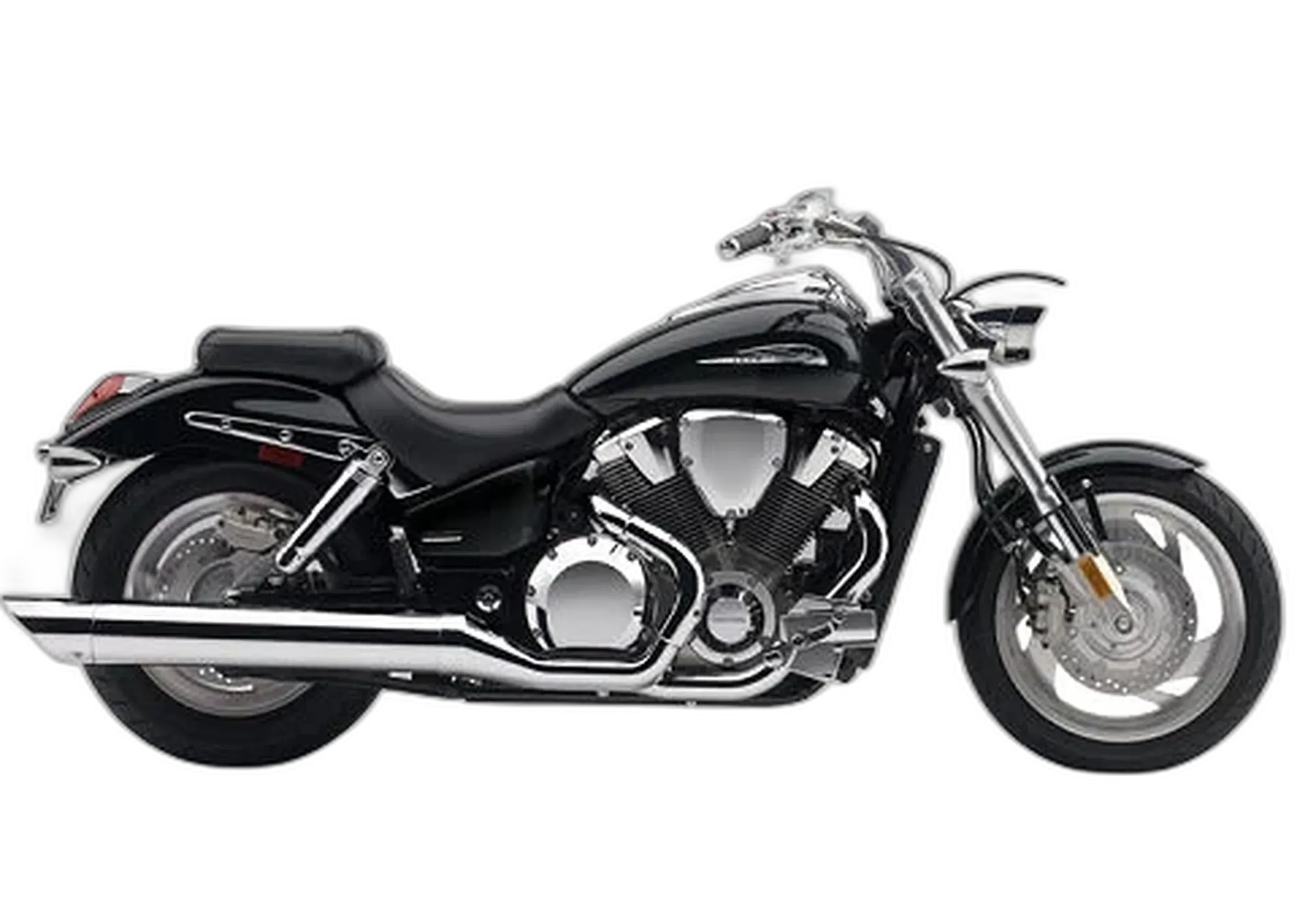

Honda's biggest cruiser is built around a 1795 cc liquid-cooled 52-degree V-twin that puts out 120 lb-ft at 3,000 rpm and 97 hp at 5,000. The delivery is what defines it: peak torque arrives barely off idle, so every roll-on happens without effort or noise about it. A 67.5-inch wheelbase, a 27.2-inch seat and 767 pounds wet give the long, low stance this class is judged on, and shaft drive keeps the rear of the bike visually clean. This is Honda building a genuine big-inch statement piece and engineering it properly instead of approximating one.
It rides the way it looks: planted, deliberate, happiest on open road where the mass turns into calm. Ownership follows the usual Honda pattern of low drama, though a 5.3-gallon tank at 29 mpg means fuel stops arrive sooner than the touring stance suggests. Buy on history rather than mileage. Early bikes carry a fuel pressure regulator that can crack with age and let fuel into the oil, high-mileage examples can get stubborn downshifting from third to second, and water pump seals occasionally weep past very high mileage. A documented service record answers all three.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 97 hp (71 kW) @ 5,000 rpm |
|---|---|
| Torque | 120 lb-ft (163 Nm) @ 3,000 rpm |
| Displacement | 1795 cc |
| Engine | 52° V-twin |
| Cooling | Liquid-cooled |
| Gearbox | 5-speed |
| Final drive | Shaft |
| Fork | Upside-down (USD) |
| Front brake | 296 mm |
| Front tire | 150/80-17 |
| Rear tire | 180/70-16 |
| Wheelbase | 67.5 in (1715 mm) |
| Seat height | 27.2 in (691 mm) |
| Wet weight | 767 lb (348 kg) |
| Fuel capacity | 5.3 gal (20 L) |
| Fuel economy | 29 mpg (US) |
Equipment check
Chassis
Nothing below comes from my own miles on one. It's years of listening: club nights, coffee stops on group rides, questions after events, and the mail riders keep sending me. On the VTX 1800 the accounts line up more tightly than they do on most bikes I get asked about.
Torque leads every conversation. Owners describe pull arriving almost at idle and treat it as the whole reason the bike exists. Longevity comes up nearly as often; six-figure odometers on nothing but routine service are reported as ordinary. Many owners talk about theirs as personalized rather than stock. Composure once rolling and brakes that stay strong under repeated use round out the praise.
The reservations repeat just as reliably. Weight tops the list, and owners describe it as much in how tall the bike feels at walking pace as in the effort of moving it around a garage. Fuel stops interrupt long days more than owners want. Hard parts reach the pavement early, so corners get taken at a measured pace. And the same suspension setup draws opposite complaints depending on the rider's size.
Fuel Pressure Regulator (FPR) failure (early models)
On 2002–2004 and some early 2005 models, the fuel pressure regulator diaphragm can crack with age, causing fuel to mix with engine oil. This can wash cylinder walls and lead to catastrophic engine damage. Replacement is simple and inexpensive, but many bikes still have the original regulator.
Swingarm weld recall (2002 models, NHTSA Recall 09V-362)
Certain 2002 VTX1800C motorcycles had an improperly welded swingarm-to-final-drive flange that could break, causing a loss of control. Honda recalled affected VINs for inspection and swingarm replacement.
Hard downshifting and transmission drag
Some high‑mileage VTX1800s develop difficulty shifting down from 3rd to 2nd or 2nd to 1st, often due to bent shift forks or clutch drag. Reports suggest transmission rebuilds are eventually needed.
Water pump leaks at high mileage
Several owners report coolant weeping from the water pump seal at mileage above 50,000 mi (80,000 km). Replacement of the water pump resolves the issue. Not widespread but documented enough to flag.
Where this Honda VTX 1800 pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Seat height
Forget spec-sheet bragging. Here's who the VTX 1800 is actually built for.
Sturgis, Daytona, the slow crawl down a packed main street: the stance and the sound hold up in that company, and the big twin idles through traffic all day without protest.
Made for A1A — Florida Atlantic Coast · Black Hills / Sturgis Rally Hub · Daytona Main Street / Bike Week
For unhurried days on historic two-lanes it works well, with a low seat and a relaxed reach. Plan around the 5.3-gallon tank, and expect tight village turnarounds to cost real effort.
Made for Acadia National Park · Austin / Handbuilt Motorcycle Show · Blue Ridge Parkway
It will hold a highway cruise all day without wandering, but there is no luggage or cruise control from the factory. Budget for both, and for fuel stops every couple of hours.
Made for Beartooth Highway · Blue Ridge Parkway · Going-to-the-Sun Road
