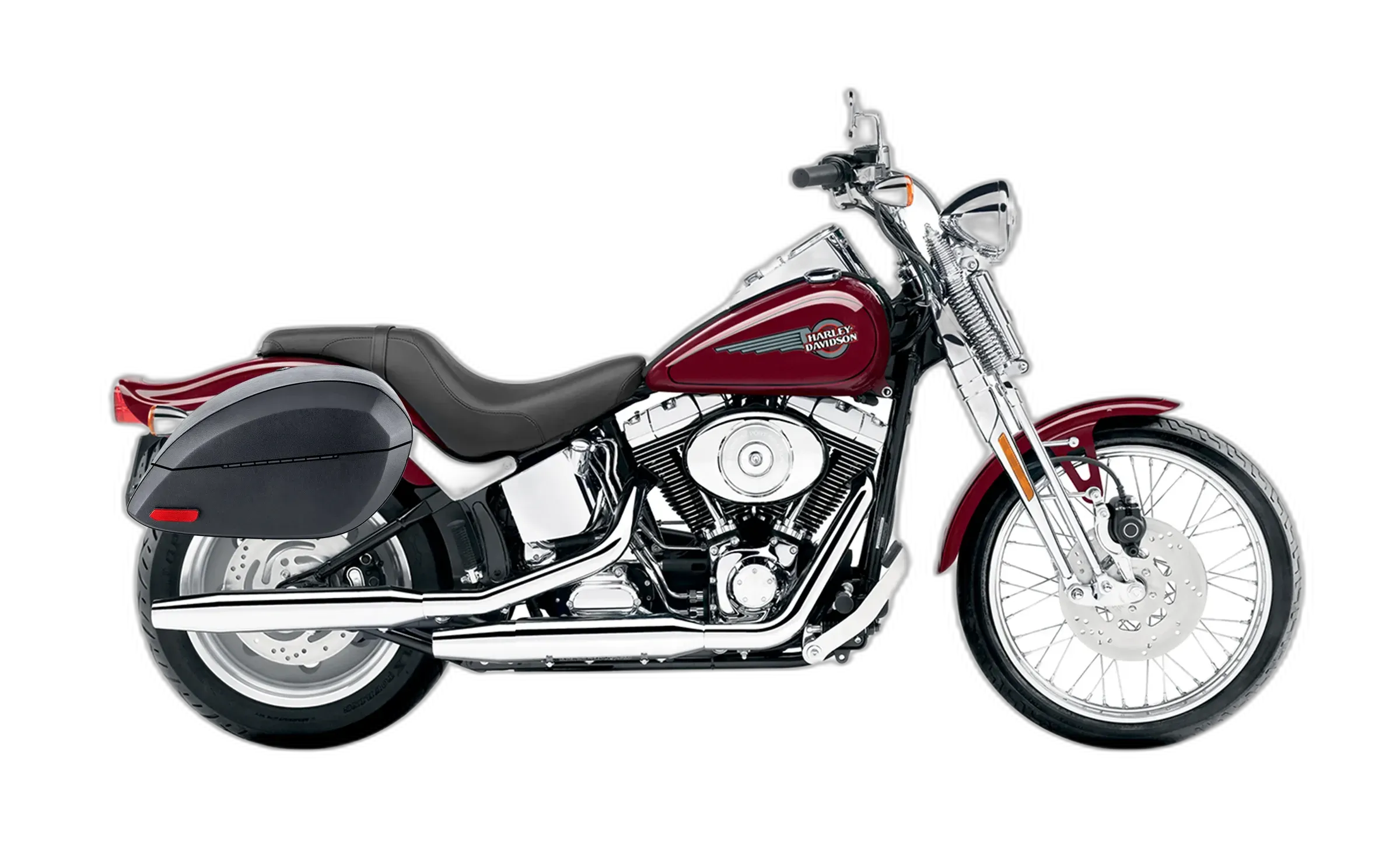

Softail Springer FXSTS (FXSTS)

Old Iron, No Apology

The Machine's Character

The Springer front end is the whole point of this Softail. An exposed spring fork out front, a skinny 21-inch wheel under it, and 1449 cc of air-cooled 45-degree V-twin sitting in the middle. The numbers are modest at 65 hp, but the 86 lb-ft is what you actually ride, fed through a 5-speed gearbox and a belt. On my scale it takes a flat 10 for chopper style and a flat 10 for retro shape, and in this class that is not a consolation prize. The look is the product. The engineering exists to carry it.

It rides the way it looks: deliberate, low at 26.5 inches, 710 lb wet, happiest rolling at an unhurried pace. What ages well here is hardware rather than software. There is nothing on board to go obsolete, and the aftermarket depth is deep enough that no two of these stay identical for long. This is for the rider who buys presence first and accepts the bill that comes with it. The caveat is the equipment list: no ABS, no traction control, no rider modes, and a front end with no adjustment of any kind. The rear shock takes preload, and that is the whole tuning menu.

Hard Numbers

Spec sheets don't ride bikes, but they set the baseline.

Show full specs & equipment Hide specs & equipment
Key specifications
Power 65 hp (49 kW)
Torque 86 lb-ft (117 Nm)
Displacement 1449 cc
Engine 45° V-twin
Cooling Air-cooled
Gearbox 5-speed
Final drive Belt
Front brake 292 mm
Front tire MH90-21
Rear tire 150/80-16
Seat height 26.5 in (673 mm)
Wet weight 710 lb (322 kg)
Fuel capacity 5.0 gal (18.9 L)

Equipment check

Chassis

  • Manually Adjustable Rear Suspension Standard
A long, straight paved road stretches toward the horizon through agricultural fields in Vermont. Power lines and a mailbox are visible along the roadside. Lush green vegetation, cumulus clouds, good daylight conditions. The landscape is flat to gently rolling. Asphalt pavement appears to be in good condition. Rural American setting.
Meric Tuna / Pexels

Known issues

  • Premature cam chain tensioner wear on 88B engine

    engine common

    The spring-loaded cam chain tensioners in the Twin Cam 88B engine (2005-2006 models) can wear prematurely, potentially leading to engine damage if not replaced. Upgrading to hydraulic tensioners is recommended.
