2015–2017 · Adventure · Buyer's Guide
The Triple That Travels
The 800 XC runs Triumph's 799 cc inline-three, and that three-cylinder layout is the whole point of the bike. It makes 94 hp at 9,250 rpm and 58 lb-ft at 7,850 rpm, spread across a torque curve smooth enough to trust on a loose climb and eager enough to reward a fistful on the open road. The 21-inch front wheel and long-travel suspension put it squarely in the go-anywhere camp rather than the soft-roader crowd, and ABS comes standard. This is a middleweight built to carry weight, cover ground, and turn down a dirt road without flinching.
Live with it and the intent is obvious: one bike for national parks, back roads, and the occasional trail, happiest when it's loaded up and pointed at the horizon. It ages honestly if you respect it. The chain final drive wants regular attention rather than neglect, and the tall 33.3-inch seat asks something of shorter riders before you've even pulled away. One caution worth taking seriously: under hard braking the rear pad has been known to separate from its backing plate and gouge the rotor, so keep tabs on it. For the rider who wants reach and range in a middleweight, it delivers.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 94 hp (70 kW) @ 9,250 rpm |
|---|---|
| Torque | 58 lb-ft (79 Nm) @ 7,850 rpm |
| Displacement | 799 cc |
| Engine | Inline-three |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Fork | Upside-down (USD) |
| Front brake | 308 mm |
| Front tire | 90/90-21 |
| Rear tire | 150/70-17 |
| Wheelbase | 61.7 in (1568 mm) |
| Ground clearance | 8.0 in (203 mm) |
| Front travel | 8.7 in (220 mm) |
| Rear travel | 8.5 in (215 mm) |
| Seat height | 33.3 in (846 mm) |
| Wet weight | 474 lb (215 kg) |
| Fuel capacity | 5.0 gal (19 L) |
Equipment check
Chassis
Safety
Swing a leg over and the first thing you register is height. The 33.3-inch seat sits you up in the airflow with a commanding view down the road, wide bars falling naturally to hand. Thumb the starter and the triple settles into that off-beat thrum, more musical than a twin and smoother than you'd guess at a cruise. At real road pace the motor spins with almost no buzz through the pegs and grips, so your hands stay fresh a couple hundred miles in. The controls are light and easy to work in gloves, and the beam throws real light when the day runs long. Stand on the pegs and the bike feels tall and planted rather than tippy, the kind of stance that talks you into the next dirt turnoff instead of talking you out of it.
For years the notes on this Tiger have landed in my inbox, come up in paddock conversations, and filled long chats with owners who actually live with the bike. Pull all of it together and the pattern holds steady: riders rate the engine and the long-haul comfort highly, while the gripes gather around low-speed handling and life off the pavement.
The engine draws the most consistent praise. Riders describe a triple that comes alive as the revs climb, building torque progressively and pulling hardest up top, so the reward goes to anyone happy to keep it spinning. Comfort is the next thing they raise: the upright stance and a plush seat make 500-mile days routine, and the bike settles into a long touring rhythm without wearing you down. On the road the handling wins people over too. Even with the tall front wheel it turns in eagerly and stays planted through corners, holding its own against adventure bikes that give up more to the pavement. A recurring note underneath all of it is value, a lot of capable hardware and equipment for the money.
The most common complaint is a top-heavy feel at walking pace. With the weight sitting high, riders say the bike feels heavy and awkward to maneuver at parking-lot speeds. That carries into the dirt, where a shortage of low-end grunt has owners slipping the clutch and holding revs to keep it from stalling in technical going, which several find tiring and short on confidence when the terrain gets rough. Heavier riders raise the suspension: sprung for average weight, it dives and wallows under those over 200 pounds when the pace picks up. And on the base model a handful miss the electronic aids now common in the class, with no traction control, ride modes, or cruise control on hand.
Rear brake pad delamination
Under severe braking, the outer pad material has been reported to separate from the backing plate, potentially gouging the rotor.
Where this Triumph Tiger 800 XC pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Seat height
Forget spec-sheet bragging. Here's who the Tiger 800 XC is actually built for.
For stitching passes together on long scenic days, it has the comfort and the lean clearance to keep pace through twisties, even if it sits taller and more upright than a dedicated sport-tourer.
Made for Black Hills · Blue Ridge Parkway · Cherohala Skyway
Your game is comfort over big distances two-up and loaded, and that's where the XC earns its keep: genuine luggage capacity, all-day comfort, and a triple that never feels strained on the highway.
Made for Beartooth Highway · Blue Ridge Parkway · Going-to-the-Sun Road
This is the one that matches your BDR ambitions: 21-inch front, long-travel suspension, and the luggage room for multi-day logistics. It won't be the lightest at the trailhead, but it'll get you deep.
Made for AZBDR — Arizona Backcountry Discovery Route · California BDR South · COBDR — Colorado Backcountry Discovery Route

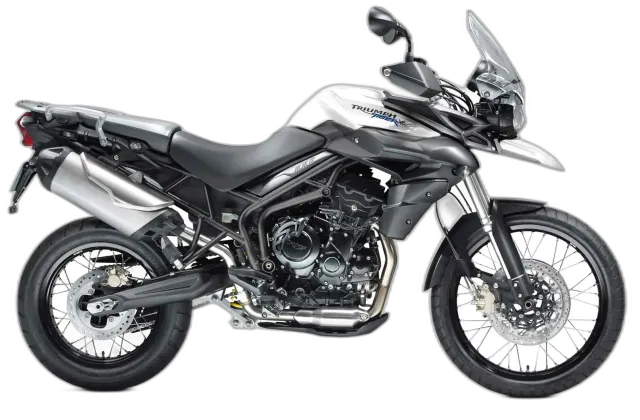

If you're cross-shopping the older generation, here's what changed.
Previous generation · 2011–2014
Triple Smoothness, Real Dirt Credentials
Compare to the previous model →If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this Triumph Tiger 800 XC. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
