KLV 1000 (KLV1000-MY2004)

The Borrowed V-Twin That Handles

The Machine's Character

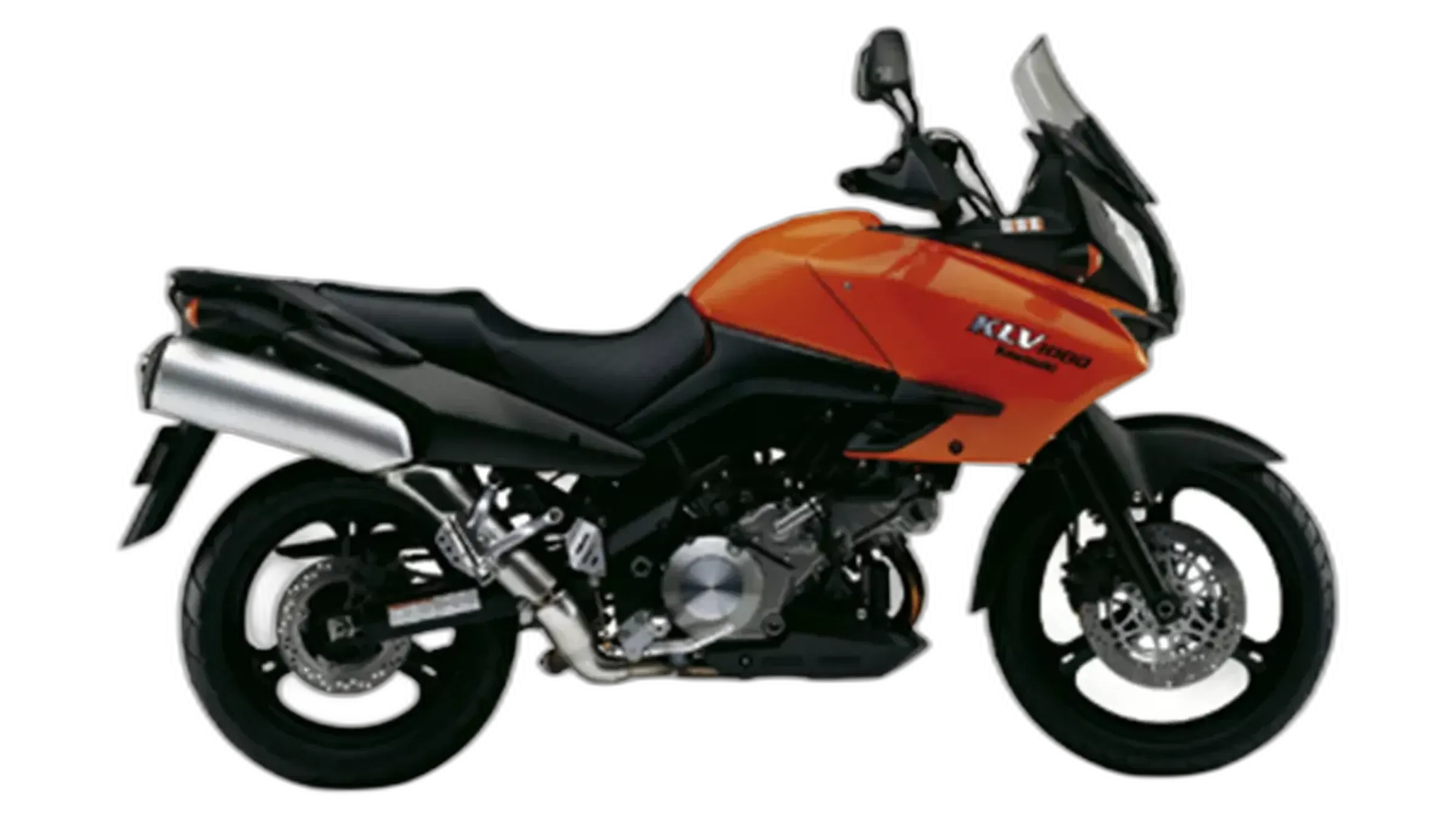

The KLV 1000 is a curiosity with substance: a Kawasaki-badged adventure tourer born from a short model-sharing deal between two Japanese manufacturers. Under the orange paint and black frame sits a 996 cc liquid-cooled 90° V-twin with sportbike roots, good for 98 hp at 7,600 rpm and 74 lb-ft at 6,400 rpm. It hangs in an aluminum twin-spar frame, rolls on a 19-inch front wheel and carries 5.8 gal (22 L) of fuel. Kawasaki's own touches are a restyled fairing, an adjustable windscreen and revised instruments. Electronics? None. No ABS, no traction control, no ride modes. Honest hardware.

On real roads it's quicker than the spec sheet suggests, because the torque is spread wide and the gearing is tall: highway miles are what it does best. The handling is easy to read, so it suits you if you want a big, comfortable travel bike without complications. It ages with two known annoyances. The clutch basket wears notches and starts to rattle, and the lean factory fueling makes it stumble at low rpm. Both are fixable. The bigger caveat is the category: 6.3 in (160 mm) of front travel falls short of what I expect from an adventure bike. Think tourer first.

Hard Numbers

Spec sheets don't ride bikes, but they set the baseline.

Show full specs & equipment Hide specs & equipment
Key specifications
Power 98 hp (72 kW) @ 7,600 rpm
Torque 74 lb-ft (101 Nm) @ 6,400 rpm
Displacement 996 cc
Engine 90° V-twin
Cooling Liquid-cooled
Gearbox 6-speed
Final drive Chain
Front tire 110/80-19
Rear tire 150/70-17
Ground clearance 6.5 in (165 mm)
Front travel 6.3 in (160 mm)
Seat height 32.7 in (830 mm)
Wet weight 525 lb (238 kg)
Fuel capacity 5.8 gal (22 L)
Top speed 125 mph (201 km/h)

Equipment check

Chassis

  • Front Suspension Adjustable Standard
  • Rear Suspension Adjustable Standard

Comfort

  • Adjustable Windscreen Standard
Aerial drone view of Palomar Divide Road winding through chaparral-covered mountain ridges in San Diego County. Multiple S-curve sections descend through sparse vegetation with distant valley views visible in the haze. Gravel and packed-earth surface.

Known issues

  • Clutch basket noise and judder

    drivetrain common

    The clutch basket often develops notches and excessive play, causing loud rattling, vibration, and drivetrain snatch between 2500–4000 rpm. Replacement with the updated DL1050 basket (part 21200-31Y20) is a common fix.

  • Lean fueling / ECU map

    fuel system very common

    Aggressive lean mapping for emissions causes low-RPM stumbles, surging, and occasional stalling. A fuel controller or ECU reflash is often required to cure drivability issues.
