2018–2020 · Cruiser · Buyer's Guide
Attitude Poured Into Iron

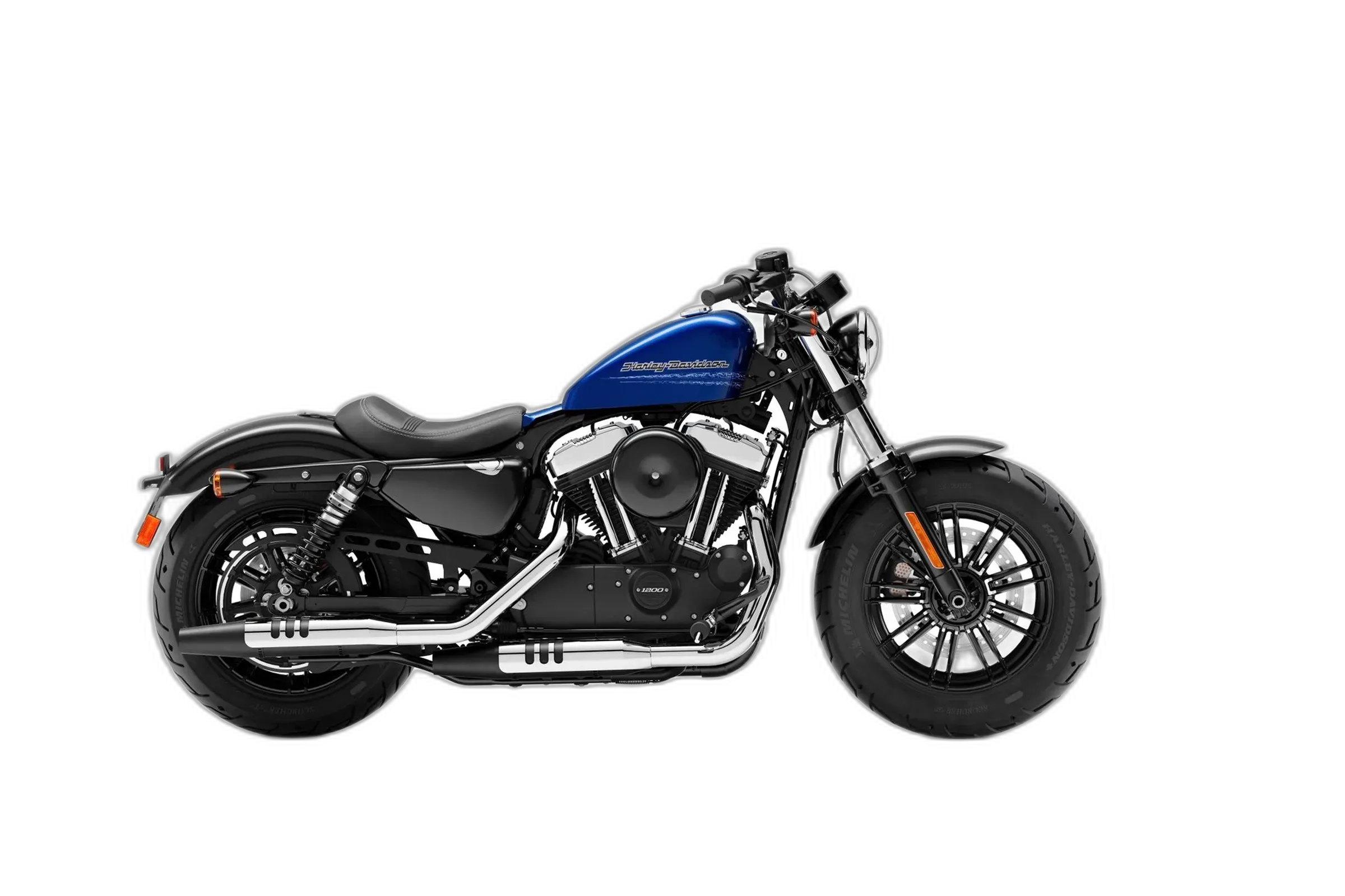

The Forty-Eight builds its entire identity around one silhouette: the peanut tank, chopped bodywork, a solo seat 28.0 in (711 mm) off the ground, and a fat 130/90-16 up front. Underneath sits a 1202 cc air-cooled 45° V-twin making 66 hp and 73 lb-ft at 3,500 rpm, running a 5-speed box and belt final drive. Nothing on it is trying to be clever. This is a stripped-down street cruiser that earns a flat 10.0 for chopper style in my scoring, and in this class that stance is the product, not the packaging.
There is no learning curve to the appeal. Torque shows up early, the low seat makes 556 lb (252 kg) of wet weight easy to manage at walking pace, and it holds a straight line at highway speed better than the short, squat proportions suggest. It ages well because there is little to age: metal, paint, and an engine you can hear working. The honest caveat is scope. The 2.1 gal (7.9 L) tank keeps your day short, ABS is an option rather than standard, and the front fork has no adjustment of any kind. Buy it for what it is and it delivers.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 66 hp (49 kW) |
|---|---|
| Torque | 73 lb-ft (99 Nm) @ 3,500 rpm |
| Displacement | 1202 cc |
| Engine | 45° V-twin |
| Cooling | Air-cooled |
| Gearbox | 5-speed |
| Final drive | Belt |
| Fork | Telescopic |
| Front tire | 130/90-16 |
| Rear tire | 150/80-16 |
| Seat height | 28.0 in (711 mm) |
| Wet weight | 556 lb (252 kg) |
| Fuel capacity | 2.1 gal (7.9 L) |
Equipment check
Chassis
Connectivity
Safety
The first thing that registers is your hands. The bars pull you into a slight forward lean over that tiny tank, feet forward, and the bike sits low enough that flat-footing it at a light is a non-event for most riders. Fire it up and the air-cooled twin shakes the mirrors at idle, then settles into a steady pulse once you are rolling. Sound is the real payload: a deep, off-beat thump you feel through the pegs and the seat as much as you hear it. The vibration is present and deliberate, metered so it reads as liveliness instead of harshness. Everything your fingers land on feels solid, from the bar clamps to the fasteners to the depth of the paint. At a real 45 to 55 mph on a boulevard, it feels exactly the way it looks.
This one is built out of listening, not testing. Talk at gas stops, conversation after a group ride, and the messages owners send me once the novelty has worn off. On the Forty-Eight the chatter falls into a clear shape: warm about the experience, matter-of-fact about the limits.
Riders keep coming back to how the bike makes an ordinary trip feel. Owners describe something visceral and engaging, a machine that turns a short run into an occasion, and they say it while openly granting that the performance has limits.
The complaints are steady and physical. The small tank comes up most: real-world range sits near 100 miles, so fuel stops shape the day and touring is out. Close behind, riders describe firm springs and little travel sending rough pavement straight through them, worst at the rear. Owners over six feet report a hunched, cramped posture that wears on them over distance. Many mention heavy, deliberate low-speed steering from the wide front tire, and some say the front end feels twitchy in corners. A few bring up the single front brake as wooden and short on power.
Cold start stalling and misfires
Some owners report difficult cold starts, with the engine idling too low and stalling repeatedly. Occasional high‑rpm misfires have also been noted. Potential causes include a faulty idle air controller or fuel pump debris.
Where this Harley-Davidson Sportster XL 1200X Forty-Eight pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Seat height
Forget spec-sheet bragging. Here's who the Sportster XL 1200X Forty-Eight is actually built for.
If Sturgis and Daytona are on your calendar, this bike belongs there. It looks and sounds the part without apology. Just accept that the small tank sets the rhythm of every travel day.
Made for A1A — Florida Atlantic Coast · Black Hills / Sturgis Rally Hub · Daytona Main Street / Bike Week
For unhurried days on historic two-lane roads, the stance and the thump are the whole point. It fits the pace you want, as long as your stops are frequent and your luggage is light.
Made for Acadia National Park · Austin / Handbuilt Motorcycle Show · Blue Ridge Parkway
Straight answer: this isn't your bike. No cruise control, no luggage system, a 2.1 gal tank and a solo seat make big daily distances and two-up loads a fight you don't need.
Made for Beartooth Highway · Blue Ridge Parkway · Going-to-the-Sun Road
If you're cross-shopping the older generation, here's what changed.
Previous generation · 2014–2017
Old Iron, Loud Soul
Compare to the previous model →If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this Harley-Davidson Sportster XL 1200X Forty-Eight. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
Competitor · 2019–2020
Factory Custom, Built Right
About the same used price as this bike at 8 yr
Competitor · 2018–2021

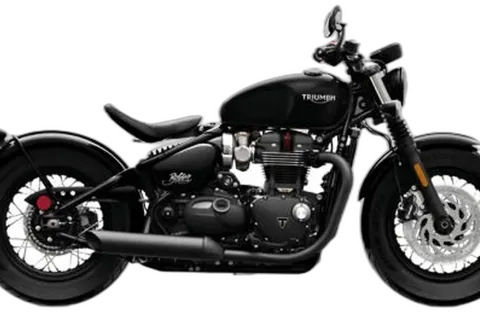

Blacked-Out Factory Bobber
About the same used price as this bike at 6 yr
Same Platform · 2018–2021
Blacked-Out Attitude, Maximum Aftermarket
Roughly $1,500 cheaper used than this bike at 6 yr
