2010–2013 · Cruiser · Buyer's Guide
Pure Bobber, Zero Apology

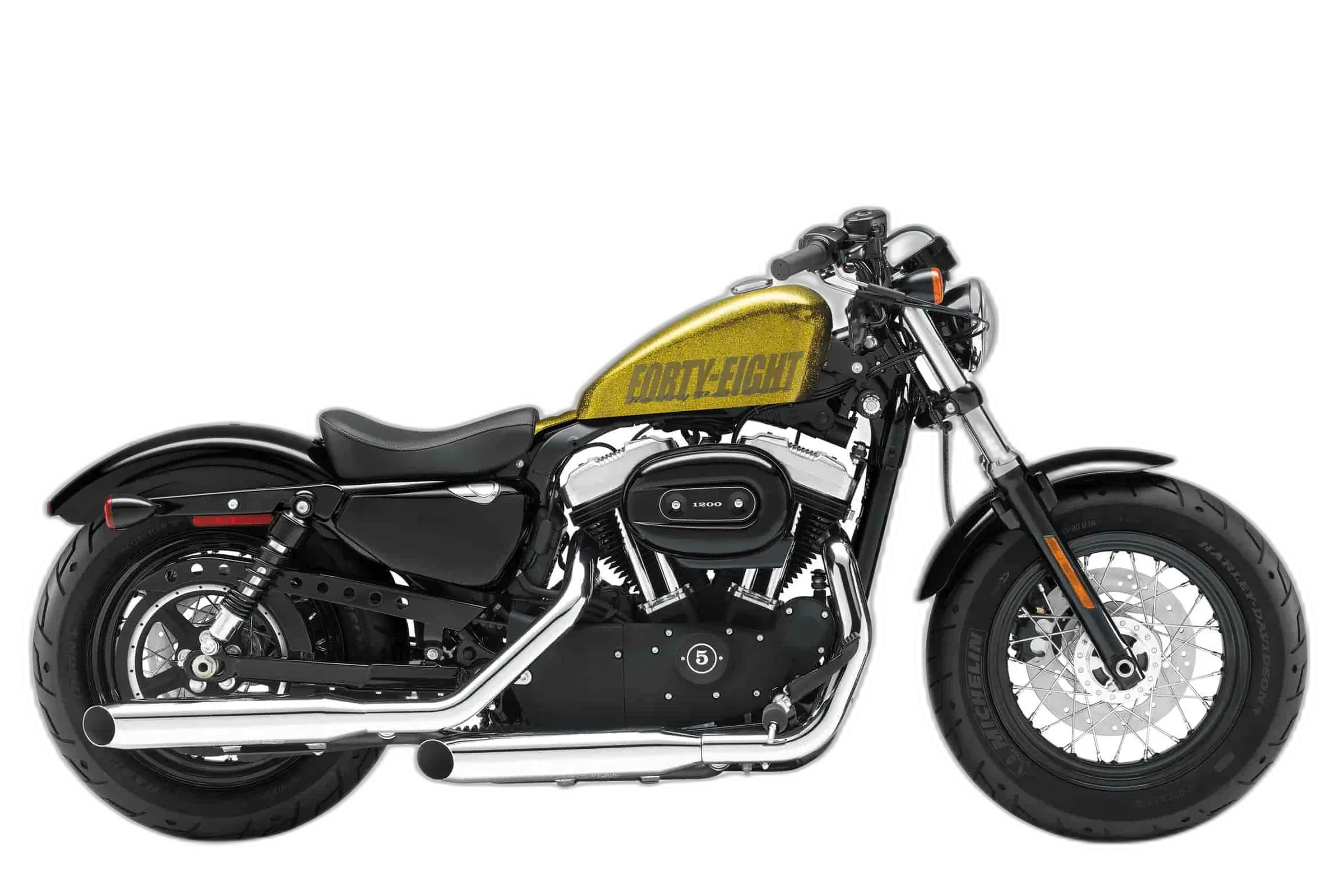

Strip a cruiser back to stance and metal and you get the Forty-Eight. The 1202 cc air-cooled 45° V-twin makes 66 hp and 79 lb-ft, and it's the torque figure that shapes the whole bike, pulling from just off idle through a 5-speed box and a belt final drive. Around that sits the real statement: a 130/90-16 front tire under a 2.1 gal peanut tank, a 26.8 in seat, and 567 lb of hardware carried low. Chopper style scores a flat 10 here, and nothing on the motorcycle apologizes for it.
It rides the way it looks. Long at 59.8 in between the axles, planted once you're up to speed, happiest on a boulevard or a two-lane run into town rather than anywhere that keeps asking for lean angle. The finish holds up, build quality earns an 8.0 from me, and the parts catalog behind this platform is deep enough that most owners never leave one stock. The caveat is plain: 2.1 gal of fuel, a firm ride, a solo seat that's more visual statement than cushion, and ground clearance that runs out early.
Spec sheets don't ride bikes, but they set the baseline.
| Power | 66 hp (49 kW) @ 5,500 rpm |
|---|---|
| Torque | 79 lb-ft (107 Nm) @ 4,000 rpm |
| Displacement | 1202 cc |
| Engine | 45° V-twin |
| Cooling | Air-cooled |
| Gearbox | 5-speed |
| Final drive | Belt |
| Fork | Telescopic |
| Front brake | 292 mm |
| Front tire | 130/90-16 |
| Rear tire | 150/80-16 |
| Wheelbase | 59.8 in (1519 mm) |
| Seat height | 26.8 in (681 mm) |
| Wet weight | 567 lb (257 kg) |
| Fuel capacity | 2.1 gal (8 L) |
Equipment check
Chassis
You sit in this bike, not on it. The low seat drops your hips down between the rails, the low-profile handlebar pulls your hands down and forward, and the underslung mirrors put your arms in a posture that reads aggressive before you've moved an inch. Thumb the starter and the air-cooled twin drops into that uneven, hard-edged idle the segment built its reputation on. Engine sound is one of this bike's best numbers and it earns every point of it. At town speed the pulse comes up through the pegs and the grips, telling you what the motor is doing without wearing you down. Out on open road it calms, tracks straight, and the fat front hoop turns in lighter than the look promises. Everything your hands and boots touch feels solid and deliberate.
My own 0–100 score for this bike against the class, area by area — the marker on each bar is the class average.
The cockpit is what sets the tone here. That low-profile bar drops your hands and pulls your shoulders forward, and with the mirrors slung under the grips instead of poking up over them, nothing sits between you and the road ahead. It's a stripped-down, aggressive shape, and it changes how you ride: inputs feel closer to the front wheel, and I found myself steering with intent rather than drifting through corners. Purposeful, and I'd take it over an upright bar on this bike.
What follows isn't my own riding impression. It comes from years of listening: owners I talk with at events and in parking lots, club nights, and the messages riders send about living with theirs. The split is consistent. The bike wins people over on presence and on the way it moves, then tests their patience on everything practical.
Styling opens almost every conversation. Owners describe the wide front rubber, the small tank, and the single seat as one low, muscular shape that pulls attention wherever they stop. Handling comes up next, usually with surprise attached: riders call it easy to flick through town and settled once the speed climbs. The V-twin collects steady praise for its low-end shove and its character.
Range dominates the gripes. Owners put usable distance at about 80 miles and say the fuel stops interrupt more rides than they'd like. Cornering clearance is next. Riders say the pegs and exhaust find the road early in a hard turn, which puts a ceiling on how much they'll ask of it. Comfort closes the list: the solo seat turns punishing after an hour or two, and some add that the short-travel suspension sends every bump straight up at them.
Battery drain from factory security system
The H-D Smart Security System draws constant power and can drain the battery within a few days if the bike is not ridden regularly or kept on a tender. Symptoms include slow cranking or no-start.
Where this Harley-Davidson Sportster XL 1200X Forty-Eight pulls ahead of — or falls behind — its rivals on the numbers, and the typical bike in its class on character.
Power
Torque
Displacement
Wet weight
Seat height
Forget spec-sheet bragging. Here's who the Sportster XL 1200X Forty-Eight is actually built for.
Sturgis and Daytona are exactly this bike's crowd, and it has the stance and the sound to hold its own on the strip. Just build the day around fuel stops, because 2.1 gal disappears fast.
Made for A1A — Florida Atlantic Coast · Black Hills / Sturgis Rally Hub · Daytona Main Street / Bike Week
Short hops between old main streets suit it, and the look belongs in that scenery. Long days are the problem: the solo seat and the tiny tank both give out before you do.
Made for Acadia National Park · Austin / Handbuilt Motorcycle Show · Blue Ridge Parkway
Wrong tool for your riding. No luggage, no cruise control, 2.1 gal of fuel and a solo seat turn Going-to-the-Sun or Beartooth into a fight instead of a trip.
Made for Beartooth Highway · Blue Ridge Parkway · Going-to-the-Sun Road
If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Successor · 2014–2017
Old Iron, Loud Soul

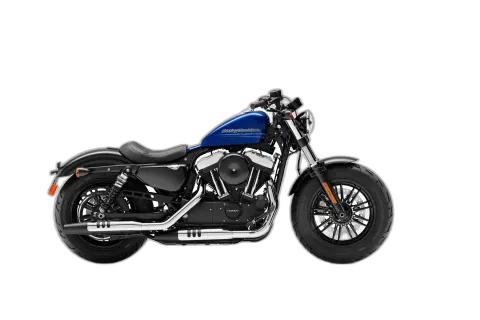

Successor · 2018–2020
Attitude Poured Into Iron

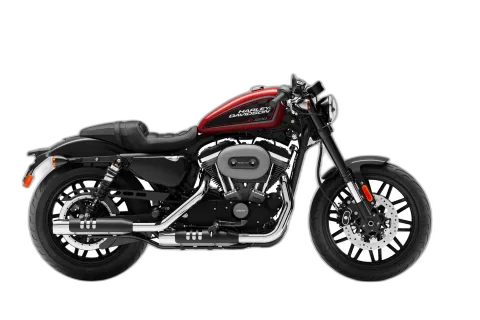

Same Platform · 2017–2020
