2024–2025 · Adventure · Buyer's Guide

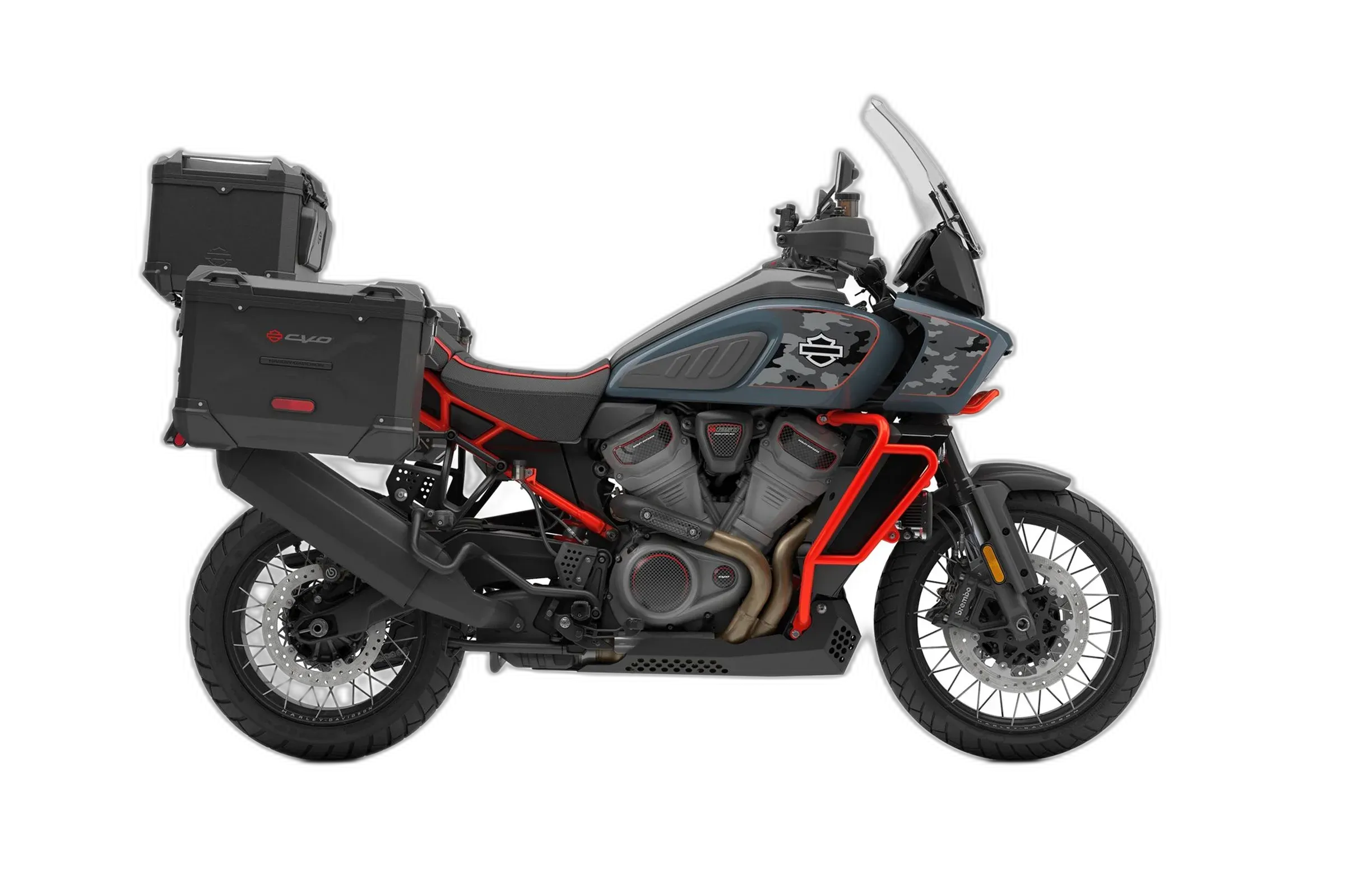

CVO Pan America (MY2024)
American Muscle, Fully Loaded
The Machine's Character
Harley's CVO treatment lands on the Pan America platform, and what you get is the Revolution Max in its sharpest state of tune: a liquid-cooled 60-degree V-twin, 1252 cc, 149 hp and 95 lb-ft, hung in a chassis running a 19-inch front wheel and electronically controlled suspension at both ends. Adaptive Ride Height drops the bike at a standstill and lifts it again as you roll away. Cornering ABS, traction control, ride modes, a quickshifter in both directions and a slipper clutch are all standard. This is the top of Harley's adventure line, built as a big-mile flagship rather than a stripped-down trail tool.
On the road it behaves like what it is: a tall, wide, 659 lb machine that settles the faster it goes and tracks straight at highway speed without asking anything of you. Lean clearance is generous for a bike this size, and the 5.6 gal tank sets a sensible gap between fuel stops. It suits the rider who covers states rather than sections. The honest caveat is travel. At 7.5 in (191 mm) front and rear with 7.1 in of ground clearance, it falls short of what serious off-road work wants, and the mass never leaves the conversation. Graded gravel and fire road, yes. Rocks and ruts, no.
Hard Numbers
Spec sheets don't ride bikes, but they set the baseline.
Show full specs & equipment Hide specs & equipment
| Power | 149 hp (111 kW) |
|---|---|
| Torque | 95 lb-ft (129 Nm) |
| Displacement | 1252 cc |
| Engine | 60° V-twin |
| Cooling | Liquid-cooled |
| Gearbox | 6-speed |
| Final drive | Chain |
| Front tire | 120/70-19 |
| Rear tire | 170/60-17 |
| Ground clearance | 7.1 in (180 mm) |
| Front travel | 7.5 in (191 mm) |
| Rear travel | 7.5 in (191 mm) |
| Seat height | 31.4 in (798 mm) |
| Wet weight | 659 lb (299 kg) |
| Fuel capacity | 5.6 gal (21.2 L) |
Equipment check
Chassis
- Electronic Suspension Standard
- Front Suspension Adjustable Standard
- Rear Suspension Adjustable Standard
- Cruise Control Standard
Comfort
- Heated Grips Standard
- Luggage System Standard
Connectivity
- TFT Display Standard
- Smartphone Connectivity Standard
- Navigation Standard
- USB Charging Port Standard
- Tire Pressure Monitoring (TPMS) Standard
Drivetrain
- Quickshifter Standard
- Slipper Clutch Standard
Lighting
- LED Headlight Standard
- Cornering Lights Standard
Safety
- ABS Standard
- Cornering ABS Standard
- Traction Control Standard
- Ride Modes Standard
Known issues
-
Fuel pump failure around 15,000-25,000 miles
Some owners report fuel pump failures, potentially linked to ethanol corrosion; earlier models were more susceptible, but residual risk may persist even on improved 2024+ units.
-
Excessive engine heat at low speeds
Riders report significant heat from the engine, particularly when the Adaptive Ride Height is active and airflow is reduced, affecting comfort in stop-and-go or off-road situations.
-
Wire routing and fit & finish concerns
Some owners note haphazard wire harness placement (e.g., across radiator fan) and a general lack of attention to detail, unexpected for a CVO trim.
The Numbers Compared
Compare the technical specifications of the Harley-Davidson CVO Pan America with other bikes in its class.
Head-to-head: Harley-Davidson CVO Pan America vs. its rivals
Power
Torque
Displacement
Wet weight
Seat height

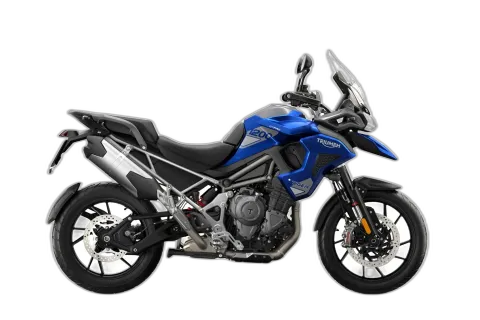

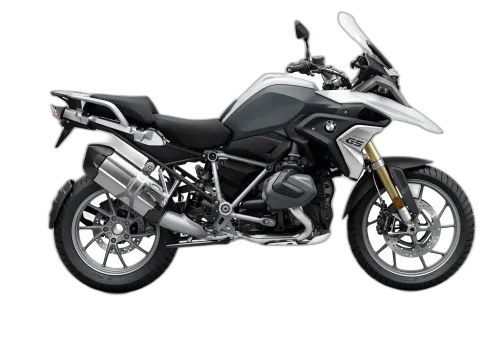

Alternatives to the Harley-Davidson CVO Pan America
If this one isn't quite the fit, these are the bikes worth riding back-to-back against it.
Any price note compares both bikes at the same age — the youngest age both have on the used market — against this Harley-Davidson CVO Pan America. “cheaper/pricier” is what that bike costs second-hand, not how worn it is.
